Versatile Series

  • Pixel Pitch: 2.97mm
  • Brightness: 1,000 cd/m²
  • Fast Assembly and Easy Maintenance
  • Two Cabinet Options
  • 90º Corner Option Available

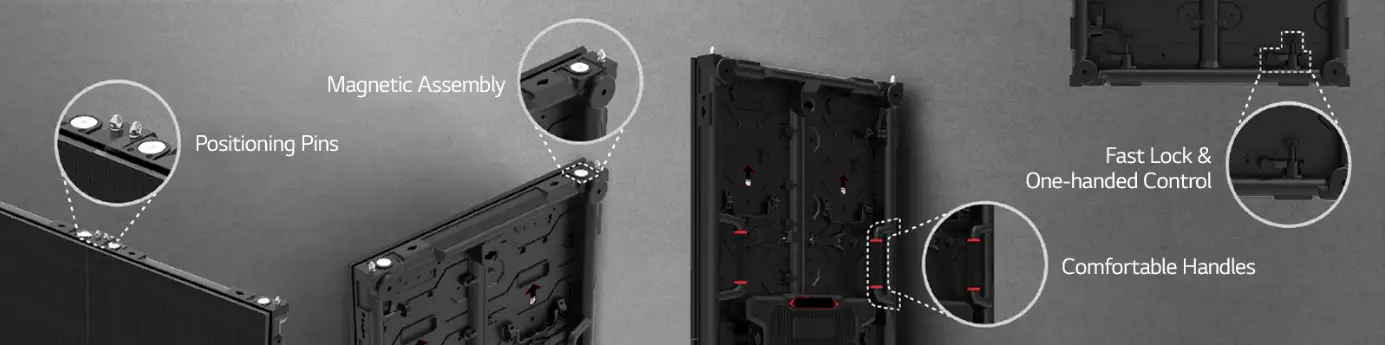

  • Fast Installation

    Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

  • img

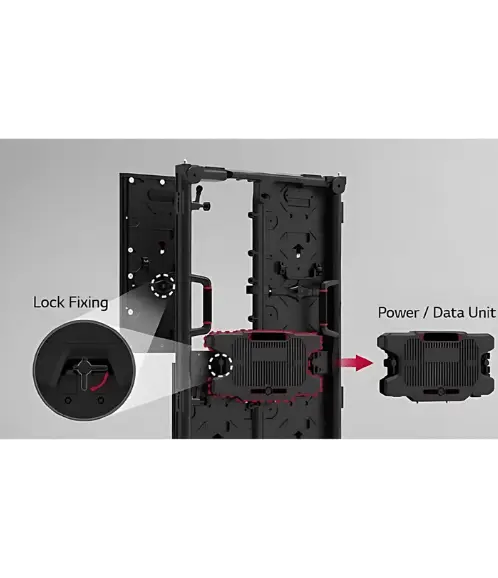

    Easy Maintenance

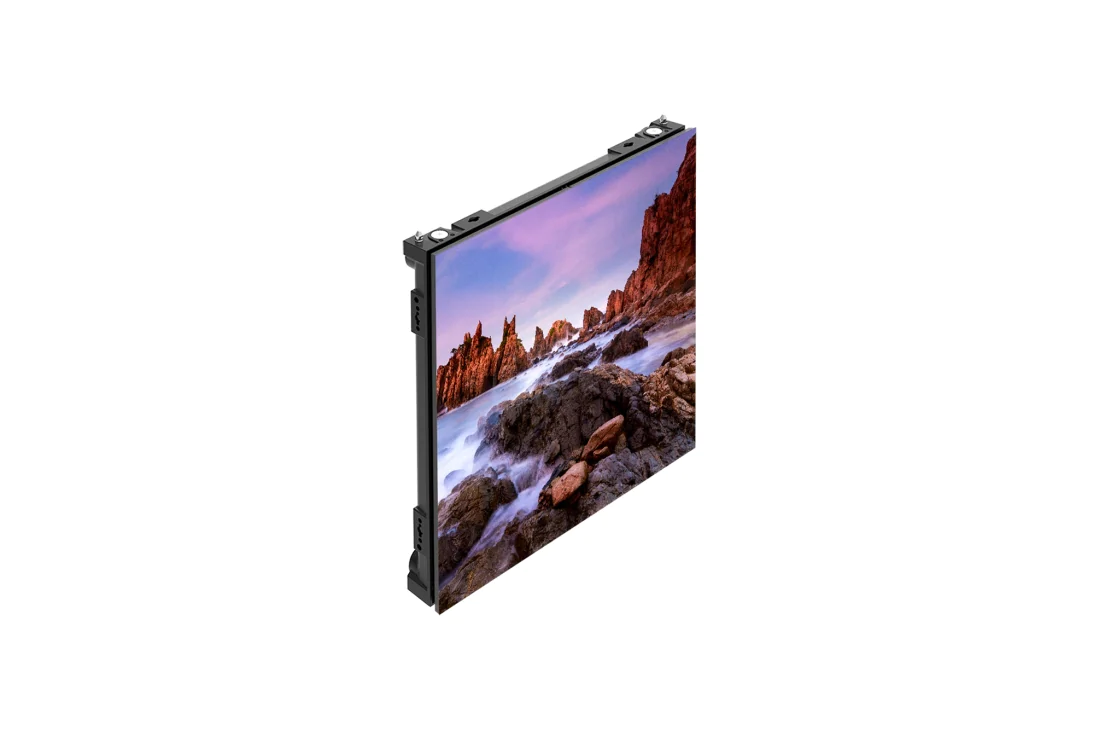

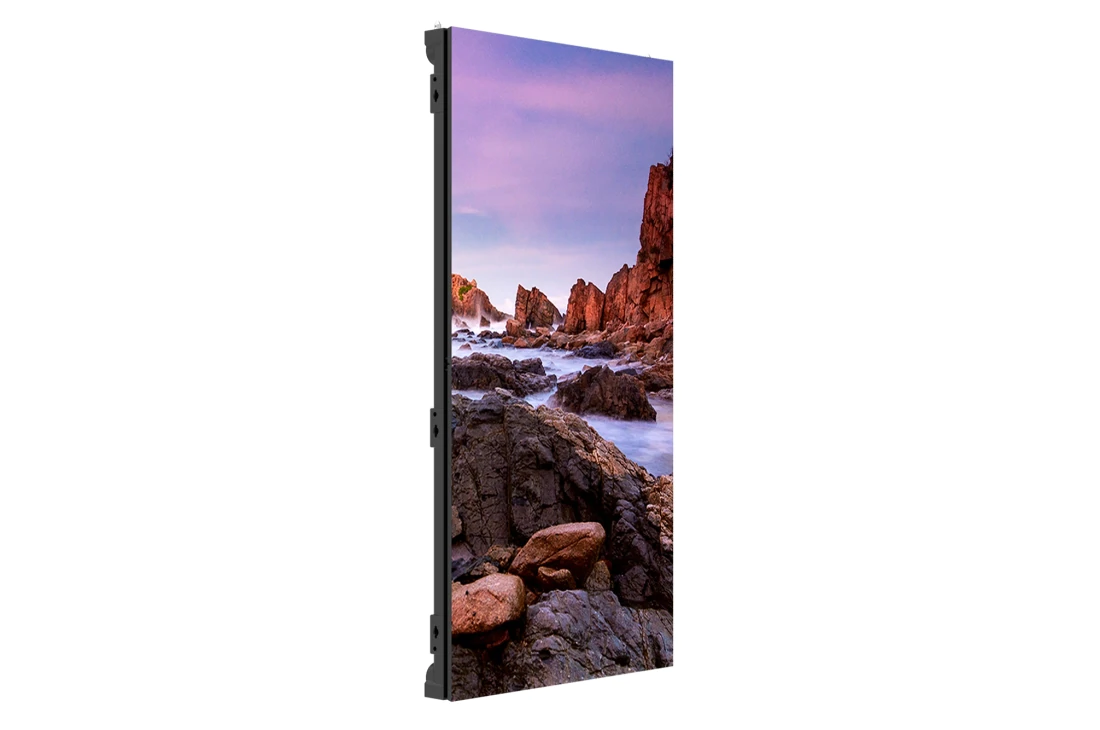

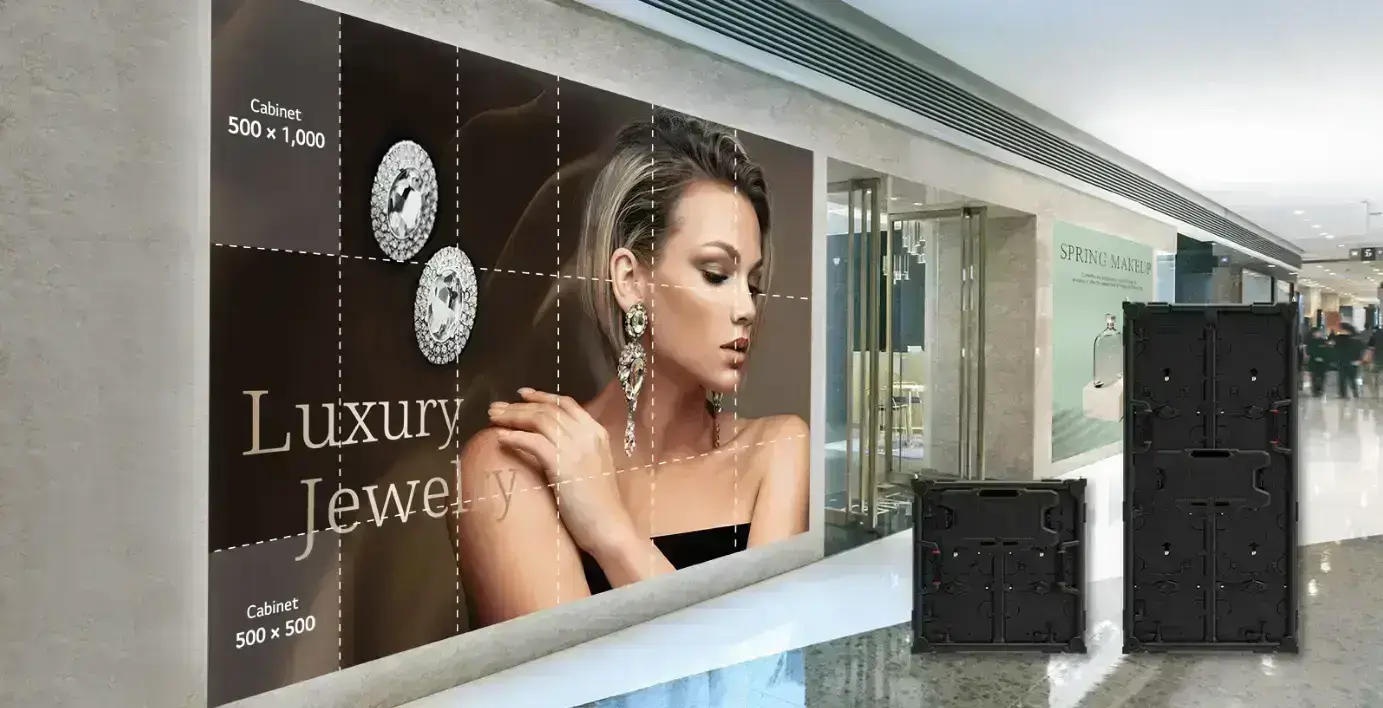

  • Two Cabinet Options

    The LSCA series offers two sizes of cabinets, enabling a screen size configuration that fits perfectly with customer's demands.

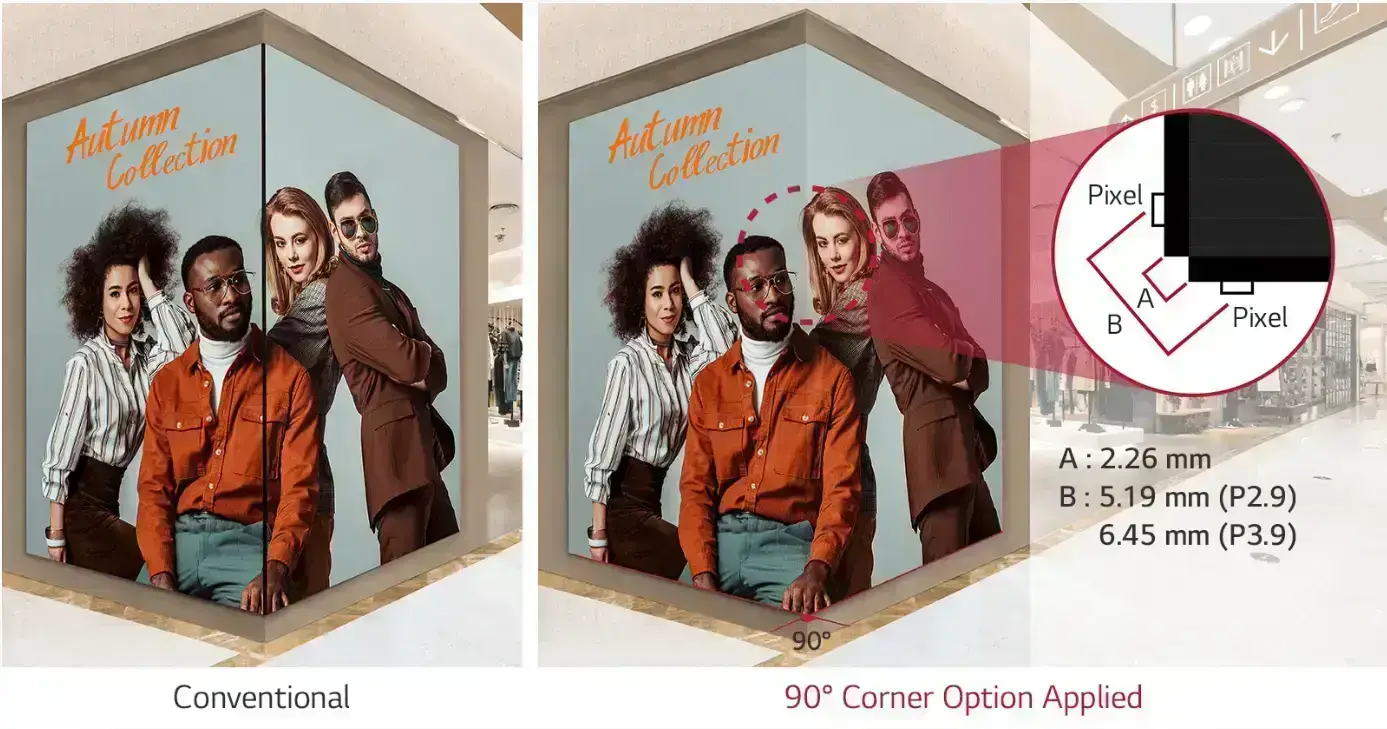

  • 90° Corner Design Available

    If you add a 90° corner option, the LSCA series can deliver flawless content even when installed on right-angled structures.

  • img

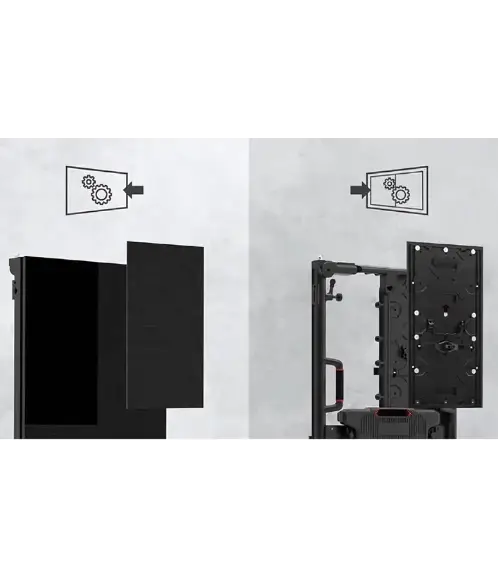

    Front or Rear Serviceability



PHYSICAL PARAMETER

  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    2.97
  • Module Resolution (W x H)
    84 × 168
    Module Dimensions (W x H, mm)
    250 × 500
  • Weight per Module (kg)
    1.30
    No. of Modules per Cabinet (W × H)
    2 × 2 / 2 × 1 (Half-sized)
  • Cabinet Resolution (W × H)
    168 × 336 / 168 × 168 (Half-sized)
    Cabinet Dimensions (W × H × D)
    500 × 1,000 × 66 / 500 × 500 × 66 (Half-sized)
  • Cabinet Surface Area (m²)
    0.500 / 0.250 (Half-sized)
    Weight per Cabinet (kg/cabinet)
    14.0 / 10.0 (Half-sized)
  • Weight per Square Meter (kg/m²)
    28.0 / 40.0 (Half-sized)
    Physical Pixel Density (pixels/m²)
    112,896
  • Flatness of Cabinet
    ± 0.3 mm
    Cabinet Material
    Die-casting Aluminum
  • Service Access
    Front or Rear (One Option Only)

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    1,000
    Color Temperature
    3,500 ~ 9,000
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    160
  • Brightness Uniformity
    97%
    Color Uniformity
    ± 0.003 Cx,Cy
  • Contrast Ratio
    5,000
    Processing Depth (bit)
    14

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    270 / 135 (Half-sized)
    Power Consumption (W/cabinet, Avg.)
    90 / 45 (Half-sized)
  • Power Consumption (W/m², Max.)
    540
    Power Consumption (BTU/h/cabinet, Max.)
    921 / 461 (Half-sized)
  • Power Consumption (BTU/h/cabinet, Avg.)
    307 / 154 (Half-sized)
    Power Consumption (BTU/h/m², Max.)
    1,842
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    2,880

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10 °C to +45 °C
  • Operating Humidity
    0 – 80 % RH
    IP rating Front / Rear
    IP30 / IP30

CERTIFICATION

  • Certification
    CE,FCC,ETL

ENVIRONMENT

  • Environment
    RoHS

CONTROLLER

  • Controller
    CVCA, LCIN006
