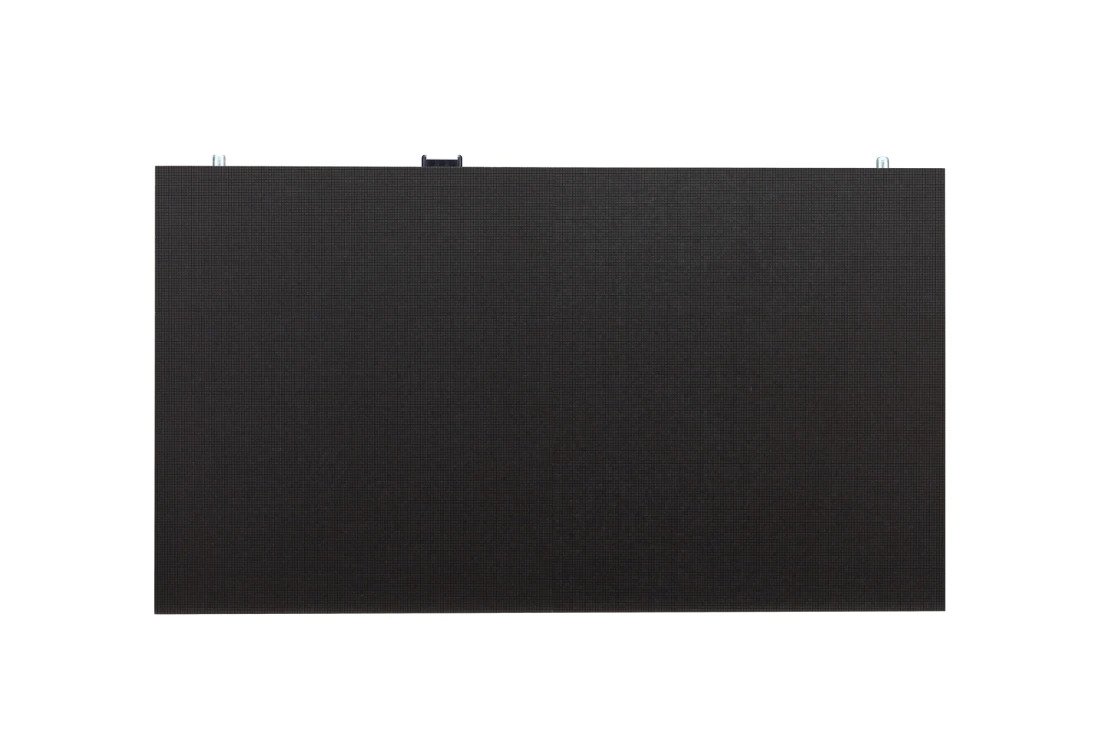

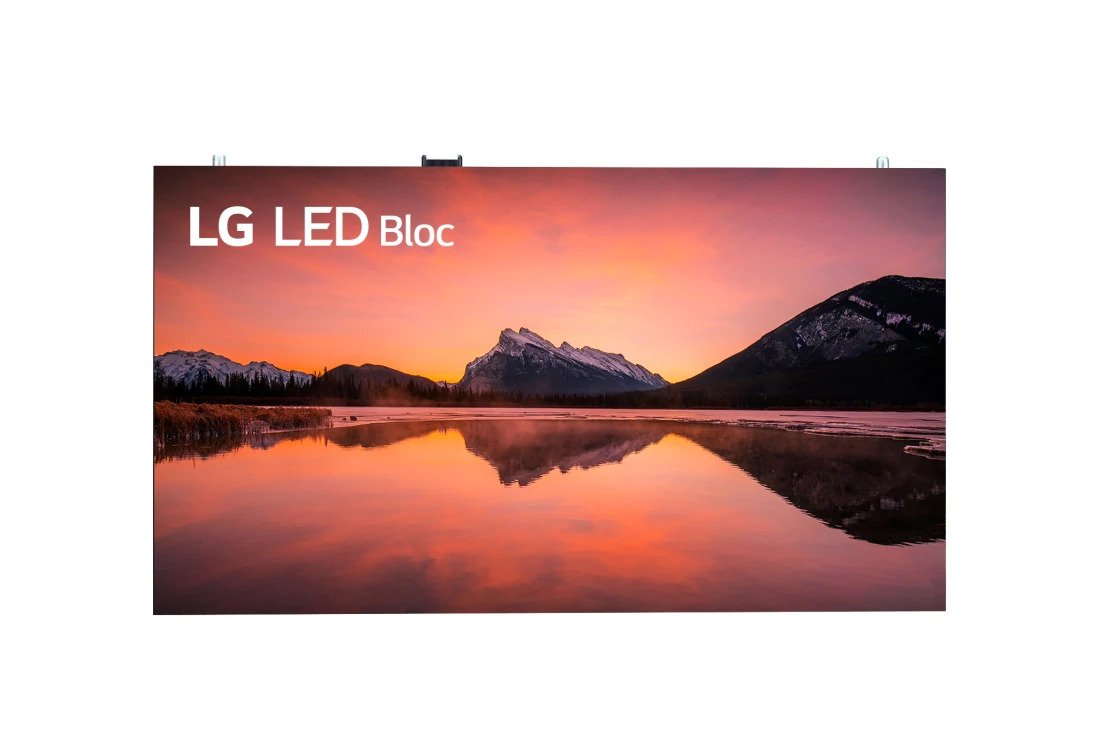

LG LED Bloc

  • Pixel Pitch: 1.25mm
  • Brightness: 600 cd/m²
  • Wireless Data Transfer and Cable-less Power Docking
  • AI-powered Image Processor
  • Real-time ConnectedCare Service

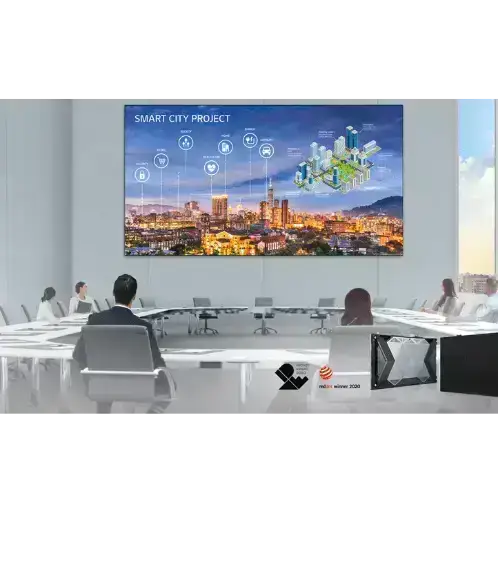

  • Winner of Design Awards

  • True Innovation Behind Simplicity

    With unrivaled picture quality and optimum cable-less design,Expand the Possibilities of Business Space Itself.

  • Why “Optimum Cable-less” LED

    The LSAA series is the innovative LED signage applying the wireless transmission technology with *non-contact connectors. For up to UHD resolution with the 16:9 ratio, it does not require a cable connection between the cabinets to supply signal & power. Its block assembly design makes the LSAA series easier to be installed than ever before.

  • img
  • img
  • img
  • Vivid Color Expression Powered by HDR

    With HDR (HDR10, HDR10 Pro*) support, content becomes vivid with great visual impact.
    The wider color spectrum and greater contrast ratio allow viewers to fully enjoy lively content.

  • img

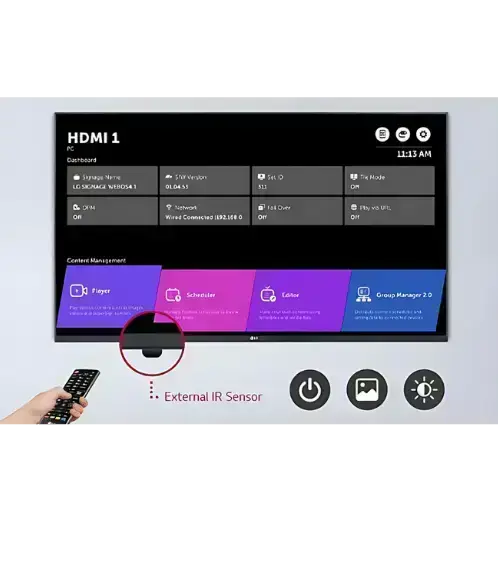

    Easy Remote Control Support

    The LSAA series allows users to easily access the settings, such as Picture Mode, volume, etc. by using a remote control instead of connecting to a PC. It uses the same UI as general LG digital signage, so users can easily adapt to it.

  • img

    Compatibility with AV Conference Systems

    The LSAA series has been certified Crestron Connected® for a high level of compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.

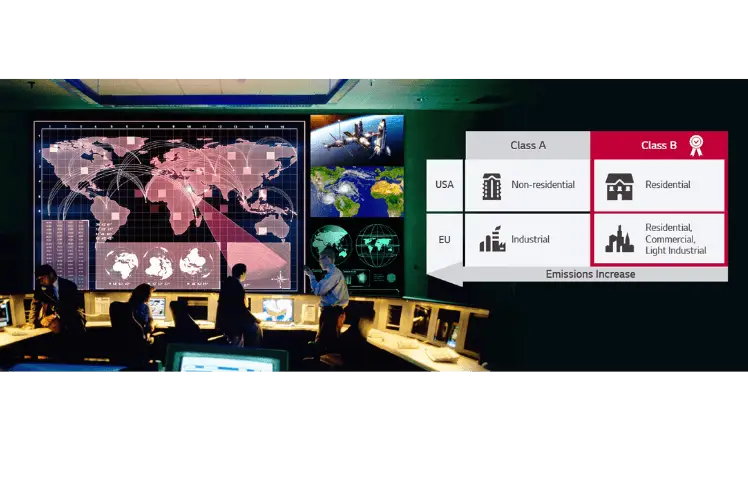

  • EMC Class B Certified

    The LG LSAA Series is certified as EMC Class B, which requires electronic equipment made for use in residential environments as well as commercial, industrial, or business environments.
    Therefore, it is suitable for up-close uses such as corporate meeting rooms, board rooms, etc.

  • 4-in-1 LED Package

    Unlike LG's conventional LED signage in which one light source constitutes one small LED package, the LSAA series has applied four light sources at once to its wider LED package. So the attached area of 4-in-1 LED package can be wider than the conventional single LED package, making the LED signage surface smoother and suitable for up-close uses such as corporate meeting rooms etc.

  • Standby Mode

    When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.
    When there is no input signal for a period of time, the screen turns off and the main circuit parts inside the LED cabinet go to a standby mode. This saves additional power consumption and enables the product to be reactivated simply by using a remote control.

  • Real-time ConnectedCare Service

    Maintenance is easier and faster with the optional ConnectedCare* service, a cloud service solution provided by LG service. It remotely manages the status of displays in client workplaces for fault diagnosis and remote-control services, enabling the stable operation of clients' businesses.

  • Power / Signal Redundancy Support

    The LSAA series is designed to support redundancy of signal and power, providing users with comfort. With optional embedded back-up power supply unit and signal redundancy, customers can assure the continuous operation of the screen without power failure, while the dual controllers minimize screen failure with a bi-directional signal input.


PHYSICAL PARAMETER

  • Pixel Configuration
    SMD, 4 Pixels in 1 PKG
    Pixel Pitch (mm)
    1.25
  • Module Resolution (W x H)
    240 × 90
    Module Dimensions (W x H, mm)
    300 ×112.5
  • Weight per Module (kg)
    0.20
    No. of Modules per Cabinet (W × H)
    2 × 3
  • Cabinet Resolution (W × H)
    480 × 270
    Cabinet Dimensions (W × H × D)
    600 × 337.5 × 44.9
  • Cabinet Surface Area (m²)
    0.203
    Weight per Cabinet (kg/cabinet)
    7.3
  • Weight per Square Meter (kg/m²)
    36.1
    Physical Pixel Density (pixels/m²)
    640,000
  • Flatness of Cabinet
    ±0.5 mm
    Cabinet Material
    Die-casting Aluminum
  • Service Access
    Front and Rear
    * Module can be accessed only from the front.

OPTICAL PARAMETER

  • Brightness
    600nit (Typ.) 1,200nit (Peak)
    Color Temperature (Default/Adjustable)
    6,500K / 2,800~10,000K
    * Adjustable via LED Assistant on PC
  • Visual Viewing Angle (Horizontal)
    170
    Visual Viewing Angle (Vertical)
    170
  • Brightness Uniformity
    98%
    Color Uniformity
    ±0.015Cx,Cy
  • Contrast Ratio
    Peak. 8,000:1 Typ. 4,000:1
    Processing Depth (bit)
    20
  • HDR Compatibility
    HDR10, HDR10 Pro
    * LG’s own HDR solution to process HDR signal by using enhanced dynamic tone mapping

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    112
    Power Consumption (W/cabinet, Avg.)
    67
  • Power Consumption (W/m², Max.)
    555
    Power Consumption (BTU/h/cabinet, Max.)
    383
  • Power Consumption (BTU/h/cabinet, Avg.)
    230
    Power Consumption (BTU/h/m², Max.)
    1,894
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840

CONTROLLER

  • Controller
    CSAA-012X

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0°C to 40°C
  • Operating Humidity
    10-80%RH
    IP rating Front / Rear
    IP20 / IP20

CERTIFICATION

  • Certification
    Safety 60950-1, EMC Class B, BS476 Part7 Class1

ENVIRONMENT

  • Environment
    RoHS

ACCESSORY

  • Optional
    Wall Mount Kit, Frame Kit
