Essential Series

  • Pixel Pitch: 6.66mm
  • Brightness: 5,000 cd/m²
  • Fast Assembly and Easy Maintenance
  • IP65 Weatherproof Design
  • 90º Corner Option Available

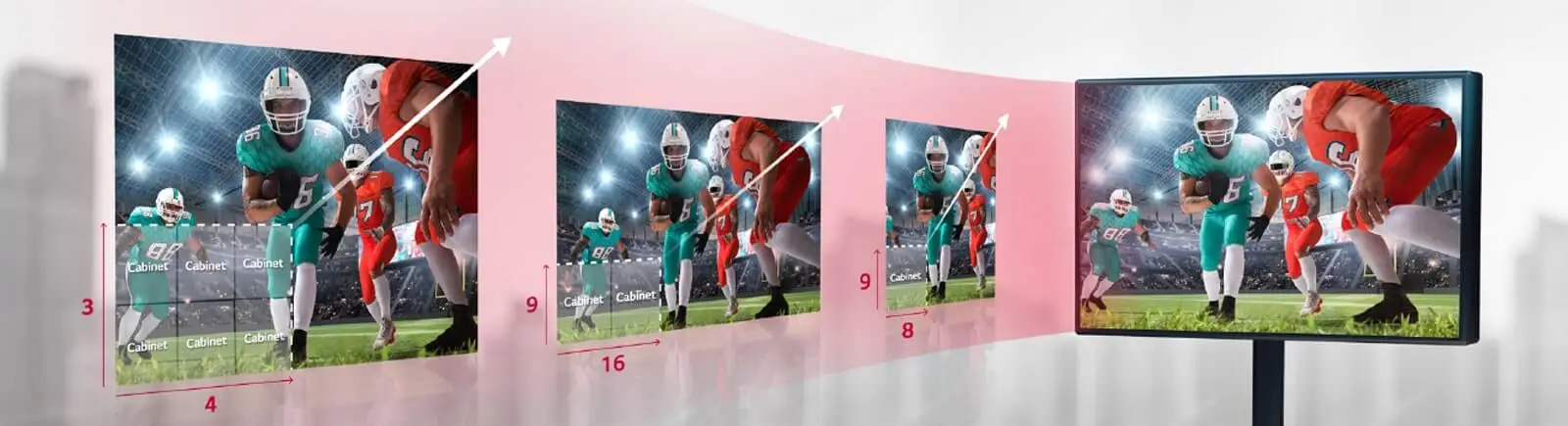

  • Customizable Screen Ratio

    Cabinets of the GSCC series can be assembled to configure any screen size including the 16:9, 8:9 and 4:3 screen ratio. This enables customers to apply LED Screens according to installation sites.

  • img

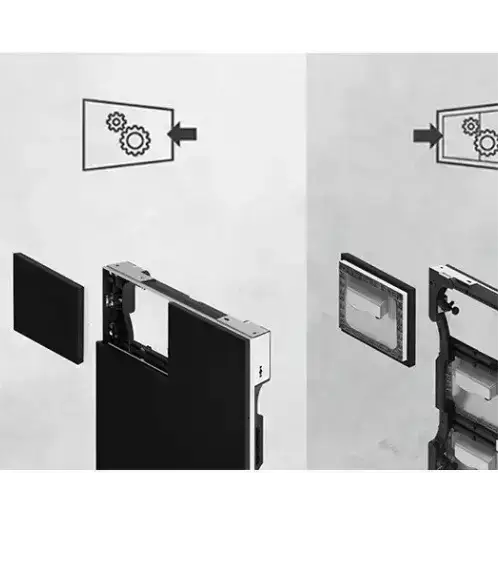

    Front or Rear Serviceability

    The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.

  • img

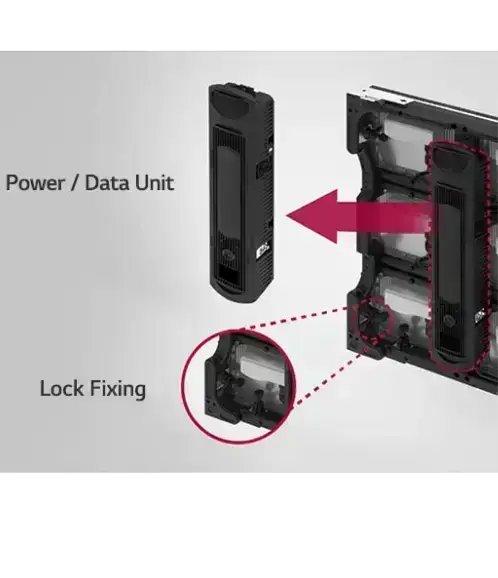

    Fast Assembly and Easy Maintenance

    The fast lock helps LED modules be simply set up or dismantled. Separate power and control unit design also facilitates easy maintenance.

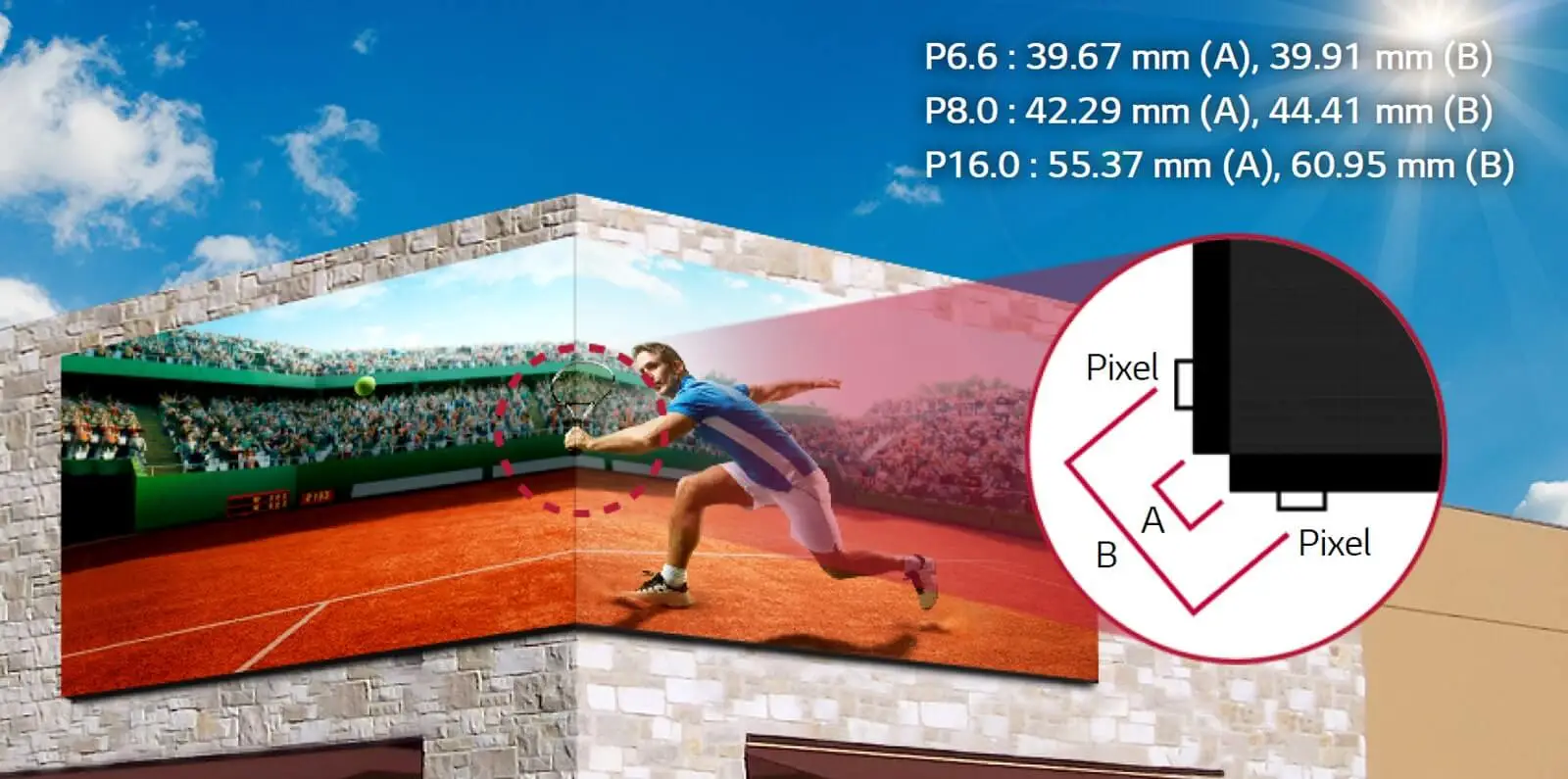

  • 90° Corner Design Available

    If you add a 90° corner option, the GSCC series can deliver flawless content even when installed on the corners.

  • IP Rated Weatherproof Design

    The front and back of the cabinet are IP65 certified, allowing stable operation unaffected by weather and harmful outdoor environments.


PHYSICAL PARAMETER

  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    6.66
  • Module Resolution (W x H)
    48 × 36
    Module Dimensions (W x H, mm)
    320 × 240
  • Weight per Module (kg)
    1.30
    No. of Modules per Cabinet (W × H)
    2 × 3
  • Cabinet Resolution (W × H)
    96 × 108
    Cabinet Dimensions (W × H × D)
    640 × 720 × 112.9
  • Cabinet Surface Area (m²)
    0.461
    Weight per Cabinet (kg/cabinet)
    17.0
  • Weight per Square Meter (kg/m²)
    36.9
    Physical Pixel Density (pixels/m²)
    22,500
  • Flatness of Cabinet
    ±0.5 mm
    Cabinet Material
    Die Casting Aluminum
  • Service Access
    Front or Rear (One Option Only)

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    5,000
    Color Temperature
    3,500 ~ 9,000
  • Visual Viewing Angle (Horizontal/Vertical)
    160 / 120
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    5,000
  • Processing Depth (bit)
    14

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    330
    Power Consumption (W/cabinet, Avg.)
    110
  • Power Consumption (W/m², Max.)
    720
    Power Consumption (BTU/h/cabinet, Max.)
    1,126
  • Power Consumption (BTU/h/cabinet, Avg.)
    375
    Power Consumption (BTU/h/m², Max.)
    2,457
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -20℃ to +50℃
  • Operating Humidity
    10-99%RH
    IP rating Front / Rear
    IP65 / IP65

CERTIFICATION

  • Certification
    CE,FCC,ETL

ENVIRONMENT

  • Environment
    RoHS

CONTROLLER

  • Controller
    LCIN006

Download

  • Dimension
    25 Jan 2021 436 KB
  • Datasheet
    25 Jan 2021 3 MB
