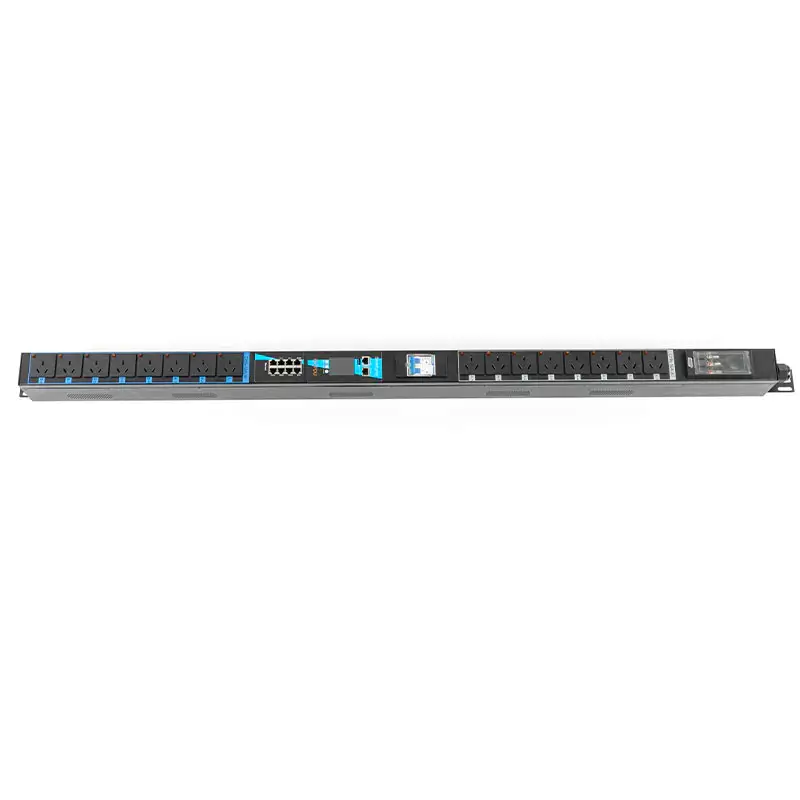

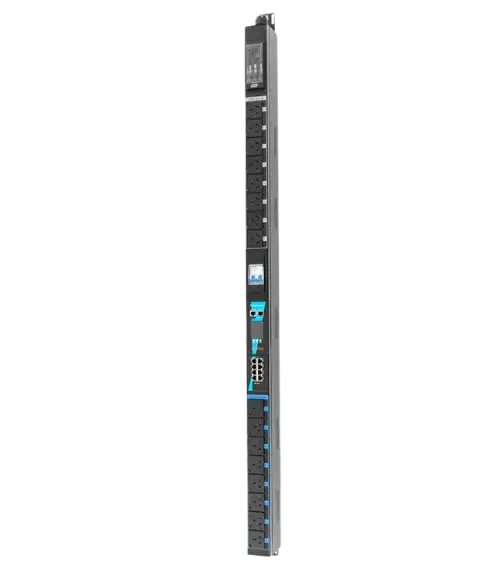

The Air Circuit Breaker 16-Outlet Vertical TCP/IP Sensor eco Smart Rack PDU is an innovative and intelligent power distribution unit that is specifically designed for data centers and server rooms. With its advanced features and capabilities, this PDU offers a highly efficient and reliable solution for managing power distribution and monitoring your infrastructure.The PDU is equipped with an air circuit breaker, providing an added layer of protection for your connected equipment. This breaker offers enhanced safety by automatically detecting and isolating electrical faults, such as overloads and short circuits, ensuring the continuous operation of your critical devices.Featuring a vertical design, this PDU optimizes space utilization within your rack. With 16 power outlets, it can accommodate a large number of devices, including servers, switches, routers, and storage systems, providing flexible power options for various equipment configurations.The TCP/IP Sensor Eco Smart technology integrated into this PDU allows for remote monitoring and control over the network. You can easily access the unit's status and power consumption data from anywhere, helping you efficiently manage power utilization and optimize energy efficiency within your data center.The eco Smart functionality of the PDU enables advanced energy monitoring and management. It provides real-time measurement of power consumption, allowing you to identify energy inefficiencies and take necessary actions to reduce waste. This ultimately leads to cost savings and a reduced environmental footprint. -
Installation and configuration of the PDU are simplified, thanks to its user-friendly interface and centralized management capabilities. You can easily customize power settings, schedule power cycles, and monitor device-level power consumption using the intuitive web-based interface.
▪ CHN-10A(A)*8+CHN-16A(B)*8▪ Air circuit breaker provides overload protection▪ Available in vertical Zero-U to save space▪ Processor for flexible control methods via Input/smoke/water / environmental sensor ports and enhanced monitoring via LCD console▪ Host built-in WEB▪ PC management software▪ LAN/Ethernet monitor the total current and voltage or branch current and voltage of the PDU▪ LAN/Ethernet control of PDU power on/off at the total or branch▪ Automatic storage of operation records▪ Set unlimited alarm values of voltage/current▪ Automatic storage of alarm value▪ LAN version automatically switches setting conditions by buzzer alarm or setting external devices (such as alarm devices)▪ Provides API interface for secondary development
Air Circuit Breaker 16-Outlet Vertical TCP/IP Sensor eco Smart Rack Pdu
✓ Efficient Rack Utilization:
✓ Mounting Dimension: 19inch
✓ Mounting Size: 1358mm
✓ Mounting Direction: Vertical
✓ Number of Units: 0U
✓ Width: 60mm
✓ Height: 85mm
✓ Versatile Power Distribution:
✓ Type of Electric Plug Connection: Chinese standard
✓ Number of Sockets: 16
✓ With TCP/IP: Yes
✓ With Sensor: Yes
✓ With Mounting Bracket: Yes
✓ Included Accessories: User manual/M6x4 fixing
PRODUCT SPECIFICATIONS
| Feature | Values | ||||||||
| Mounting dimension | 19inch | ||||||||
| Mounting size | 1358mm | ||||||||
| Mounting direction | vertical | ||||||||
| Type of electric plug connection | Chinese standard | ||||||||
| Number of sockets | 16 | ||||||||
| Number of units | 0U | ||||||||
| Width | 60mm | ||||||||
| Height | 85mm | ||||||||
| With TCP/IP | yes | ||||||||
| With sensor | yes | ||||||||
| With mounting bracket | yes | ||||||||
| Included accessories | user manual/M6x4 fixing |
