✓ AS-4124GO-NART+ H12DGO-6: 4U AMD EPYC 7002 DELTA GEN4 PCIE 8X SXM4 A100 3K
✓ PSE-MLN7763-0TH Mila17763: DP/UP 64C/128T 2.45G 256M 280W SP3, HF, ROHS
✓ MEM-DR464L-SLO2-ER32: 64GB DDR4-3200 2Rx4 LP (16Gb) ECC RDIMM, HF, ROHS
✓ HDS-S2TO-MZ7L3480HCHQA7: PM893 480GB SATA 6Gb/s V 2.5 7mm 1DWPD 5YR SED
✓ AOC-A25G-M2SM-0: AIOM2 port 25GbE SFP28, Mellanox CX-6 LX w/0.5U height
✓ MCP-220-00187-0B: 2.5-inch t-profile drive tray, standard color tab, for SC119UH
✓ GPU-NVTHGX-A100-SXM4-88D: NVIDIA Air CO01 DELTA HGX GPU Baseboard8 A100 80GB
In the world of high-performance hardware, two exceptional solutions stand out: the AS-4124GO-NART+ H12DGO-6 and the PSE-MLN7763-0TH Mila17763. The AS-4124GO-NART+ is a robust 4U system powered by the AMD EPYC 7002 DELTA GEN4 PCIE 8X SXM4 A100 3K, while the PSE-MLN7763-0TH boasts dual-processor (DP) and uni-processor (UP) capabilities, featuring a 64-core, 128-thread CPU operating at 2.45GHz with a 280W power output. Complemented by the MEM-DR464L-SLO2-ER32 and HDS-S2TO-MZ7L3480HCHQA7, these solutions lay the foundation for high-performance computing, catering to the most demanding workloads and data processing needs.
In the realm of networking and storage, the AOC-A25G-M2SM-0 emerges as a standout solution with its 25GbE SFP28 connectivity, offering blazing-fast data transfer speeds. Simultaneously, the MCP-220-00187-0B provides efficient storage solutions, ensuring seamless data management. For GPU-intensive tasks, the GPU-NVTHGX-A100-SXM4-88D takes center stage, boasting the formidable NVIDIA Air CO01 DELTA HGX GPU Baseboard8 and an A100 80GB GPU. This powerhouse excels at handling graphically intensive workloads, making it a top choice for professionals and enthusiasts alike. These hardware components, tailored to meet diverse computing needs, are poised to tackle a wide array of tasks with unmatched efficiency and power.
Specifications
Product SKUs

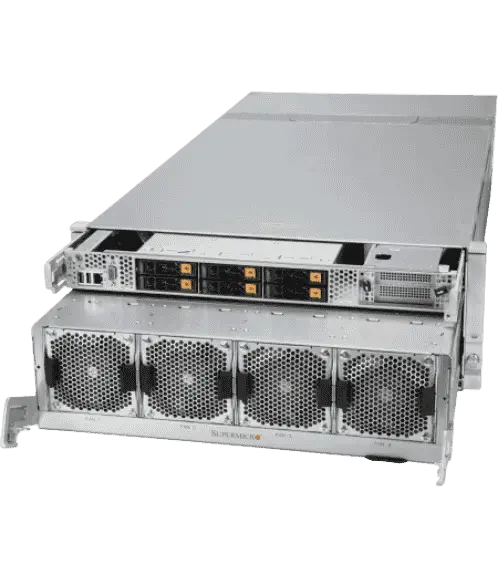

AS -4124GO-NART
A+ Server 4124GO-NART
Motherboard
Super H12DGO-6
Processor/Cache
CPU
Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
Socket SP3
Supports CPU TDP up to 280W*
Cores
Up to 128 Cores (64 per CPU)
Note * Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization
GPU
Supported GPUs
HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board
CPU-GPU Interconnect
PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect
GPU-GPU Interconnect
NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect
System Memory
Memory Capacity
32 DIMM slots
Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Memory Type
3200MHz ECC DDR4 RDIMM/LRDIMM
On-Board Devices
Chipset
System on Chip (SoC)
SATA
SATA3 (6Gbps)
Network Controllers
Provided via AIOM
IPMI
Support for Intelligent Platform Management Interface v.2.0
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics
ASPEED AST2600 BMC
Input / Output
SATA
4 SATA3 (6Gbps) ports
LAN
Provided by AIOM
1 RJ45 Dedicated IPMI LAN port
USB
2 USB 3.0 ports (front)
Video
1 VGA Connector (front)
COM Port
1 COM port (header)
System BIOS
BIOS Type
AMI 256Mb SPI Flash ROM
Management
Software
IPMI 2.0
KVM with dedicated LAN
SSM, SPM, SUM
SuperDoctor® 5
Watchdog
PC Health Monitoring
CPU
Monitors for CPU Cores, Chipset Voltages, Memory.
4+1 Phase-switching voltage regulator
FAN
Fans with tachometer monitoring
Status monitor for speed control
Pulse Width Modulated (PWM) fan connectors
Temperature
Monitoring for CPU and chassis environment
Thermal Control for fan connectors
Chassis
Form Factor
4U Rackmountable
Rackmount Kit (MCP-290-00180-0N)
Model
CSE-438G
Dimensions
Height
6.9″ (174mm)
Width
17.6″ (446mm)
Depth
35.4″ (900mm)
Package
29.5″ (750mm) H x 27.4″ (695mm) W x 44.9″ (1140mm) D
Weight
Net Weight: 166.0 lbs (75.3 kg)
Gross Weight: 225.0 lbs (102.1 kg)
Drive Bays / Storage
Hot-swap
6 hot-swap U.2 NVMe 2.5″ drive bays (4 via PCI-E switch, 2 via CPU, SATA/NVMe Hybrid or SAS with optional HBA)
(up to 10 hot-swap U.2 NVMe 2.5″ available)
M.2
2 M.2 NVMe
Expansion Slots
PCI-Express
8 PCI-E 4.0 x16 via PCI-E switch – supporting HGX A100 8-GPU’s 1:1 connection to 8 NICs
1 PCI-E 4.0 x16 LP and 1 PCI-E 4.0 x8 LP via CPUs
System Cooling
Fans
4 x Hot-swap 11.5K RPM heavy duty fans

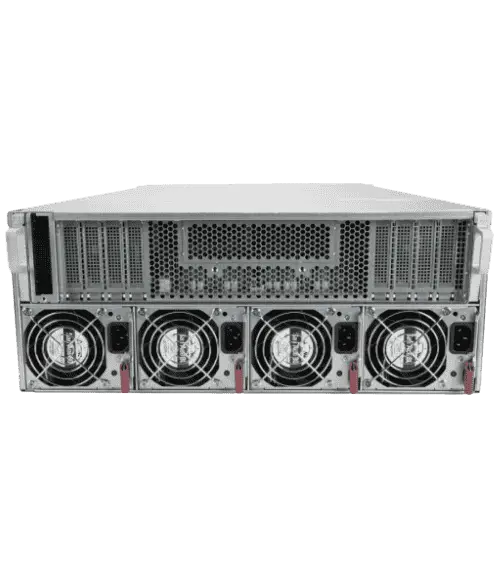

Power Supply
2200W Redundant Platinum Level Power Supplies
Total Output Power
1000W with Input 100 – 127Vac
2200W with Input 220 – 240Vac (for UL/cUL only)
2090W with Input 230 – 240Vdc (for CQC only)
Dimension
(W x H x L)
106.5 x 82.4 x 203.5 mm
Input
1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
1980W: 220-230 Vac / 10-9.5 A / 50-60 Hz
2090W: 230-240 Vac / 10-9.8 A / 50-60 Hz
2200W: 220-240 Vac / 11.8-9.6 A / 50-60 Hz (for UL/cUL only)
2090W: 230-240 Vdc / 10-9.8 A / 50-60 Hz (for CQC only)
+12V
Max: 41.67A / Min: 0A (500W)
+54V
Max: 18.5A / Min: 0A (1000W)
Max: 33.33A / Min: 0A (1800W)
Max: 36.6A / Min: 0A (1980W)
Max: 38.7A / Min: 0A (2090W)
Max: 40.74A / Min: 0A (2200W)
12Vsb
Max: 3A / Min: 0A
Output Type
Gold Finger (connector on M/P)
Certification Platinum Level Certified95%+
Platinum Certified
Operating Environment
RoHS
RoHS Compliant
Environmental Spec.
Operating Temperature:
10°C ~ 35°C (50°F ~ 95°F)
Non-operating Temperature:
-40°C to 60°C (-40°F to 140°F)
Operating Relative Humidity:
8% to 90% (non-condensing)
Non-operating Relative Humidity:
5% to 95% (non-condensing)
