● 2 x SPR 8468 2P 48C 2.1G 350W 105MB BI(1000) E5 4677
● 32 x 64GB DDR5-5600 2Rx4(10x4)(16Gb) LP ECC RDIMM
● 2 x SSD M.2 NVMe PCle4 960GB 1DWPDTLC D.80mm
● 2 x SSD 2.5" NVMe PCle4 7.6TB <2DWPD TLC D. 15mm
● 8 x 900-9X766-003N-SQ0 1-P NDR 400G IB/ETH OSFP Crypio Disabled
● 2 x NV 900-9X766-003N-ST 1-P IB/ETH NDR200 OSFP Cryplo Disable
● 1 x SPITPM 2.0 using SLB9670 (Retal Pack)
● 2 x SOCKETELGA4677.E1A XCC CARRIER.DG 1.0.ROHS
● 1 x SMc Svstem Management Softrare Suite Node License
● 1 x Std LP 2-0ort 10G RJ45. Intel X550 (Retal Pack)
● 1 x NlC Riser board (After Mid-Plane) for Delta-Nex GPU System
● 1 x NiC adapter board wth PLX switch for Delta-Nex GPU system
● 4 x MCIO x8(STR tO STR).55CM,30AWG.ROHS
● 1 x MicroHi,(2x4 to 2x4),PH3.0,40CM,8Apin.18AWG.RoHS
● 1 x NVIDIA DELTA-NEXT HGX GPU Baseboard, 8 H200 141GB SXM5
● 1 x 3 YRS LABOR PARTS, 1 YR CRS UNDER LIMITED WRNTY NCNR
All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.
● 5th/4th Gen Intel® Xeon® Scalable processor support;

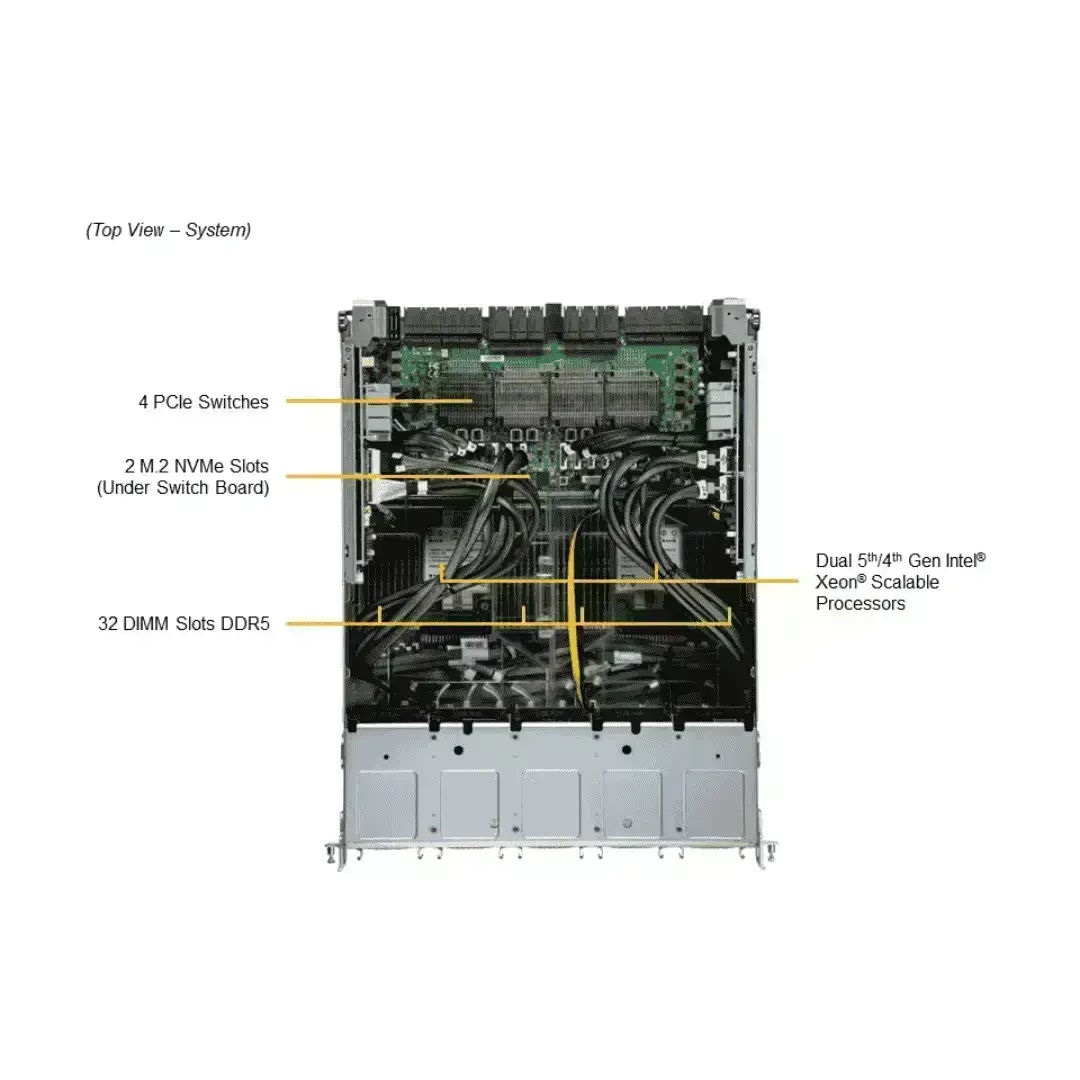

● 32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5;
● 8 PCIe Gen 5.0 X16 LP,2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional);
● Flexible networking options;
● 2 M.2 NVMe for boot drive only,16x 2.5" Hot-swap NVMe drive bays (12x by default,4x optional),3x 2.5" Hot-swap SATA drive bays,Optional: 8x 2.5" Hot-swap SATA drive bays;
● 10 heavy duty fans with optimal fan speed control;
● Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level 6x 3000W (4+2) Redundant Power Supplies, Titanium Level;
SYS-821GE-TNHR Specification | |

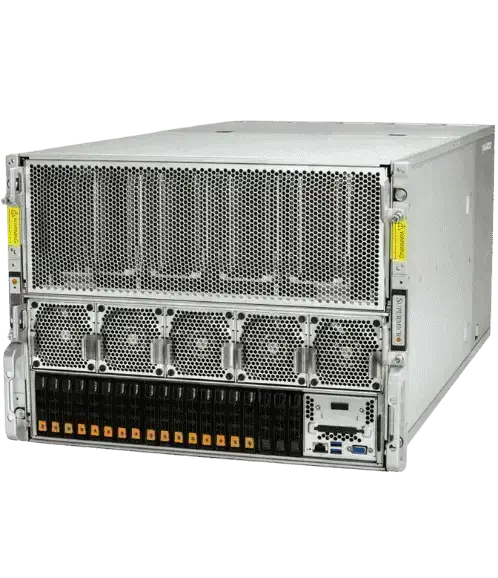

Form Factor | 8U Rackmount Enclosure: 437 x 355.6 x 843.28mm (17.2" x 14" x 33.2") Package: 698 x 750 x 1300mm (27.5" x 29.5" x 51.2") |
Processor | Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Up to 64C/128T; Up to 320MB Cache per CPU |

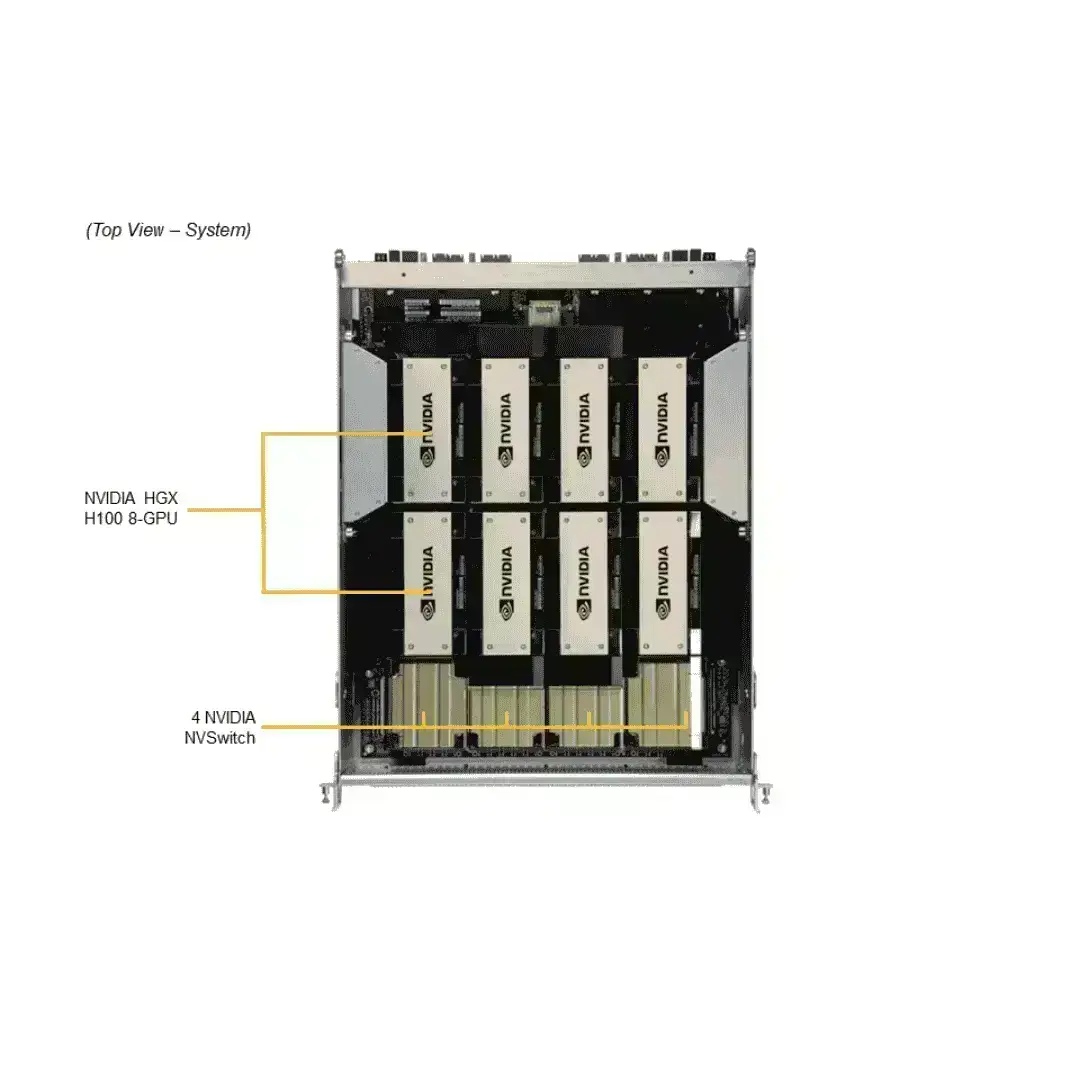

GPU | Max GPU Count: Up to 8 onboard GPUs Supported GPU: NVIDIA SXM: HGX H100 8-GPU (80GB), HGX H200 8-GPU (141GB) CPU-GPU Interconnect: PCIe 5.0 x16 CPU-to-GPU Interconnect GPU-GPU Interconnect: NVIDIA® NVLink® with NVSwitch™ |
System Memory | Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM |
Drive Bays Configuration | Default: Total 15 bays ● 12 front hot-swap 2.5" NVMe drive bays ● 3 front hot-swap 2.5" SATA drive bays Option A: Total 19 bays ● 12 front hot-swap 2.5" NVMe drive bays ● 4 front hot-swap 2.5" NVMe* drive bays ● 3 front hot-swap 2.5" SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details) M.2: 2 M.2 NVMe slots (M-key) |
Expansion Slots | Default ● 8 PCIe 5.0 x16 LP slots ● 2 PCIe 5.0 x16 FHHL slots |
On-Board Devices | Chipset: Intel® C741 Network Connectivity: ● 2 RJ45 10GbE with Intel® X550-AT2 (optional) ● 2 SFP28 25GbE with Broadcom® BCM57414 (optional) ● 2 RJ45 10GbE with Intel® X710-AT2 (optional) |
Input / Output | 1 VGA port |
System Cooling | Fans: 10 heavy duty fans with optimal fan speed control |
Power Supply | 6x 3000W Redundant Titanium Level (96%) power supplies |
System BIOSBIOS | BIOS Type: AMI 32MB SPI Flash EEPROM |
Management | SuperCloud Composer; Supermicro Server Manager (SSM); Supermicro Update Manager (SUM); Supermicro SuperDoctor® 5 (SD5); Super Diagnostics Offline (SDO); Supermicro Thin-Agent Service (TAS); SuperServer Automation Assistant (SAA) New! |
PC Health Monitoring | ● CPU: Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator ● FAN: Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors ● Temperature: Monitoring for CPU and chassis environment Thermal Control for fan connectors |
Dimensions and Weight | ● Weight: Gross Weight: 225 lbs (102.1 kg) ● Net Weight: 166 lbs (75.3 kg) ● Available Color: Black front & silver body |
Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
Motherboard | Super X13DEG-OAD |
Chassis | CSE-GP801TS |
