AI Hardware , Servers
Instock

Supermicro SuperServer SYS-741GE-TNRT

0 out of 5 (0)

✓  Supports 4th Gen Intel® Xeon® Scalable processors, including Xeon® CPU MAX Series

✓  16 DIMM slots with up to 4TB capacity: 16x 256 GB DRAM Memory Type at 4800MHz ECC DDR5

✓  4x PCIe 5.0 x16 (double-width) slots

✓  3x PCIe 5.0 x16 (single-width) slots

✓  Accommodates up to 4x double-width, full-length GPUs

✓  2x M.2 NVMe slots dedicated for boot drive

✓  Enhanced processing power with Intel® Xeon® Scalable processors

✓  High-speed and reliable memory support with ECC DDR5 technology

✓  Versatile PCIe slots for diverse expansion options

✓  Efficient GPU configuration for enhanced graphics capabilities

✓  Swift and responsive boot drive storage with dual M.2 NVMe slots

✓  2-year manufacturer repair or parts replacement warranty included

✓  2x P4X-SPR4410T-SRMGS-MCC 2

✓  8x MEM-DR564MC-ER48 8

✓  1x HDS-25T0-480GO-L2-TXD-NON-007

✓  1x HDS-25N4-003T8-E1-TXD-SED-007

✓  8x GPU-NVL40 NVIDIA Ada L40 48GB GDDR6 PCIe 4th Gen – 300w


Get this product for
$56,500.00
vipera
Get it in 10 days
Estimate for 682345
vipera
Will be delivered to your location via DHL
Inquiry to Buy
Power and Efficiency with SuperServer SYS-741GE-TNRT

SuperServer SYS-741GE-TNRT delivers unmatched performance with Dual Socket E (LGA-4677) support, accommodating 4th Gen Intel® Xeon® Scalable processors and future-ready for the upcoming 5th Gen Intel® Xeon® processors. With up to 4TB memory capacity, 16 DIMM slots supporting 4800MHz ECC DDR5 DRAM, and versatile GPU configuration supporting up to 4 double-width or 7 single-width GPUs, this server is a powerhouse. It ensures high-speed storage with 2 M.2 NVMe slots dedicated for the boot drive, while robust security features like TPM 2.0 and Secure Boot provide peace of mind. The server's compact Tower Rackmount form factor, sleek Black Front & Silver Body design, and hot-swappable storage make it a versatile and efficient solution.

    Product SKUs
    SuperServer SYS-741GE-TNRT (Black Front & Silver Body)
    Motherboard
    Super X13DEG-QT
    Processor
    CPU
    • Dual Socket E (LGA-4677)
    • 4th Gen Intel® Xeon® Scalable processors
    • Future support for the upcoming 5th Gen Intel® Xeon® processors
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 4 double-width or 7 single-width GPU(s)
    Supported GPU
    • AMD PCIe: Instinct MI210
    • NVIDIA PCIe: H100,RTX A5500,RTX A4000,A100,L40,RTX A6000,A30
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)
    System Memory
    Memory
    • Memory Capacity: 16 DIMM slots
    • Up to 4TB: 16x 256 GB DRAM
    • Memory Type: 4800MHz ECC DDR5 DRAM
    Memory Voltage
    • 1.1 V
    Error Detection
    • ECC
    On-Board Devices
    SATA
    • SATA3 (6Gbps); RAID 0/1/5/10 support
    Chipset
    • Intel® C741
    Network Connectivity
    • 2x 10GbE BaseT with Intel® X550-AT2
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Input / Output
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • IPMI 2.0
    • KVM with dedicated LAN
    • Super Diagnostics Offline
    • SuperDoctor® 5
    • Supermicro Update Manager (SUM)
    • Supermicro Power Manager (SPM)
    • Supermicro Server Manager (SSM)
    • Redfish API
    Power Configurations
    • ACPI Power Management
    • Power-on mode for AC power recovery
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • 8+4 Phase-switching voltage regulator
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Pulse Width Modulated (PWM) fan connectors
    • Status monitor for speed control
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • Tower Rackmount
    Model
    • CSE-749TS-R2K05BP
    Dimensions and Weight
    Height
    • 7″ (178mm)
    Width
    • 17.2″ (437mm)
    Depth
    • 29″ (737mm)
    Package
    • 27″ (H) x 13″ (W) x 38″ (D)
    Weight
    • Net Weight: 46 lbs (20.9 kg)
    • Gross Weight: 62 lbs (28.1 kg)
    Available Color
    • Black Front & Silver Body
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
    Expansion Slots
    PCI-Express (PCIe)
    • 7 PCIe 5.0 x16 FHFL slot(s)

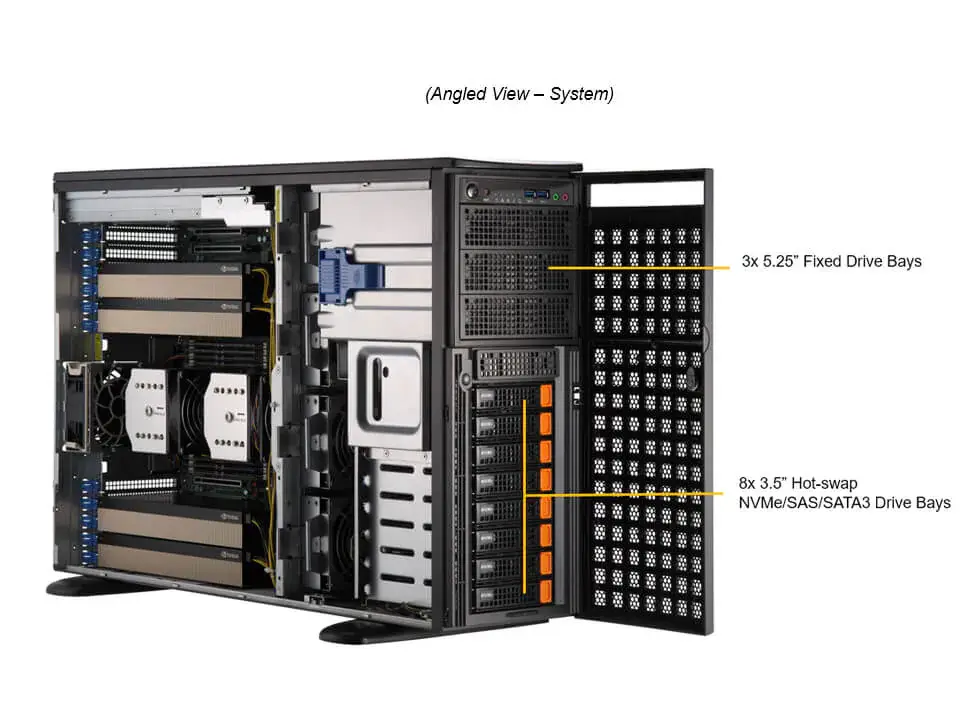

    Drive Bays / Storage
    Hot-swap
    • 8x 3.5″ hot-swap NVMe/SATA/SAS drive bays (8x 2.5″ NVMe hybrid)
    M.2
    • 2 M.2 NVMe
    System Cooling
    Fans
    • 4 heavy duty fans with optimal fan speed control
    Power Supply
    2000W Redundant Titanium Level power supplies
    Dimension

    (W x H x L)

    • 73.5 x 40 x 265 mm
    AC Input
    • 1000W: 100-120Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 230-240Vac / 50-60Hz
    +12V
    • Max: 83.3A / Min: 0A (100Vac-120Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166.7A / Min: 0A (230Vac-240Vac)
    12V SB
    • Max: 2.1A / Min: 0A
    Output Type
    • Backplanes (gold finger)
    CertificationTitanium Level94%+  Titanium Level



    Operating Environment
    Environmental Spec.
    • Operating Temperature:
      10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:
      -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:
      8% to 90% (non-condensing)
    • Non-operating Relative Humidity:
      5% to 95% (non-condensing)
