ROG Maximus Z790

Hero

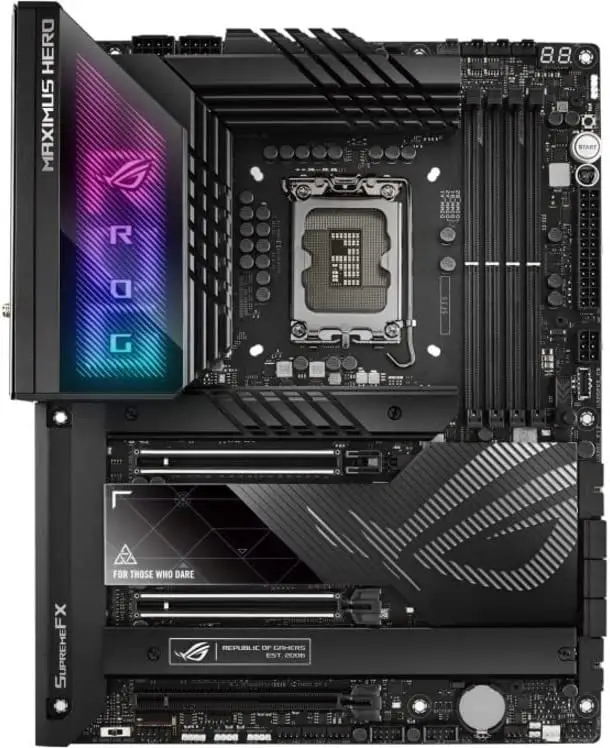

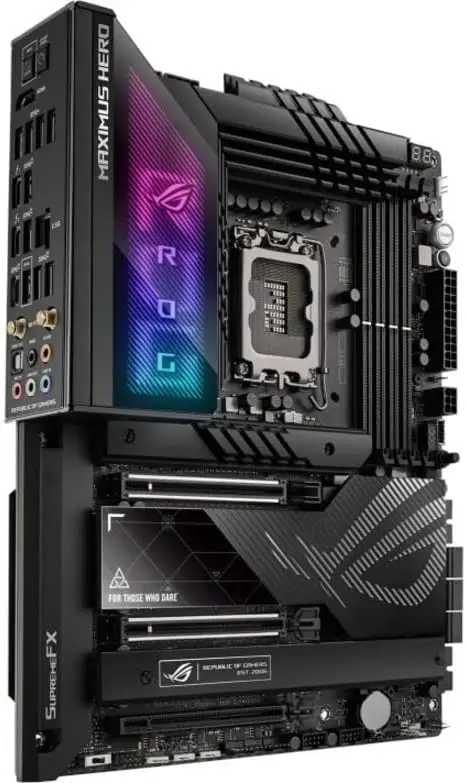

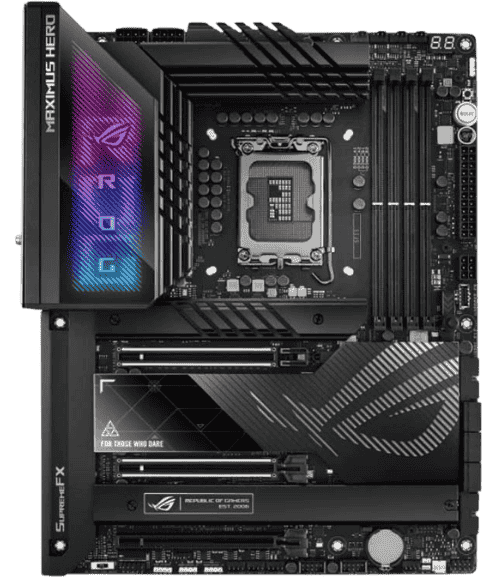

ASUS ROG Maximus Z790 Hero Intel Z790 LGA 1700 ATX motherboard, 20 + 1 power stages, DDR5, five M.2 slots, PCIe 5.0, Thunderbolt 4 USB Type-C port, WiFi 6E, AI Overclocking, and Aura Sync RGB

AI

OVERCLOCKING

Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.

TEAMED

POWER ARCHITECTURE

Today's CPU architectures place incredible demands on motherboard power design by transitioning from deep power-saving modes, going from lower-power mode to full load in an instant. The latest ROG VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.

MEMORY

PERFORMANCE

ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the Maximus Z790 Hero, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI.

COOLER

BY DESIGN

1. VRM and aluminum I/O heatsink: A VRM heatsink on the MOSFETs and chokes is connected to the aluminum I/O cover via an embedded heatpipe to increase mass and surface area for dissipation.

2. High-conductivity thermal pads: Each thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. For future maintenance, a replacement thermal pad can also be found in the package.

Solid steel backplate: A plate of electro-galvanized steel strengthens the spine of the ROG Maximus Z790 Hero to prevent bending.

PCIE 5.0

STORAGE

ROG HYPER M.2 CARD

Two additional slots ride on the ROG Hyper M.2 Card, providing the option to deploy both a PCIe 5.0 and 4.0 drive under a large heatsink that ensures optimal temperatures.

PCIE 5.0 EXPANSION SLOTS

Both of the x16 expansion slots have the PCIe 5.0 treatment to offer incredible speeds up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily thanks to the Q-Release button.

NETWORKING

WIFI 6E

Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.

2.5G ETHERNET

Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel 2.5 Gbps Ethernet.

SUPREMEFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an integrated ESS ES9218 QUAD DAC capable of reaching -115dB THD+N for superior front-panel output. The combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.

GROW YOUR GAMING WORLD WITH AURA SYNC

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
