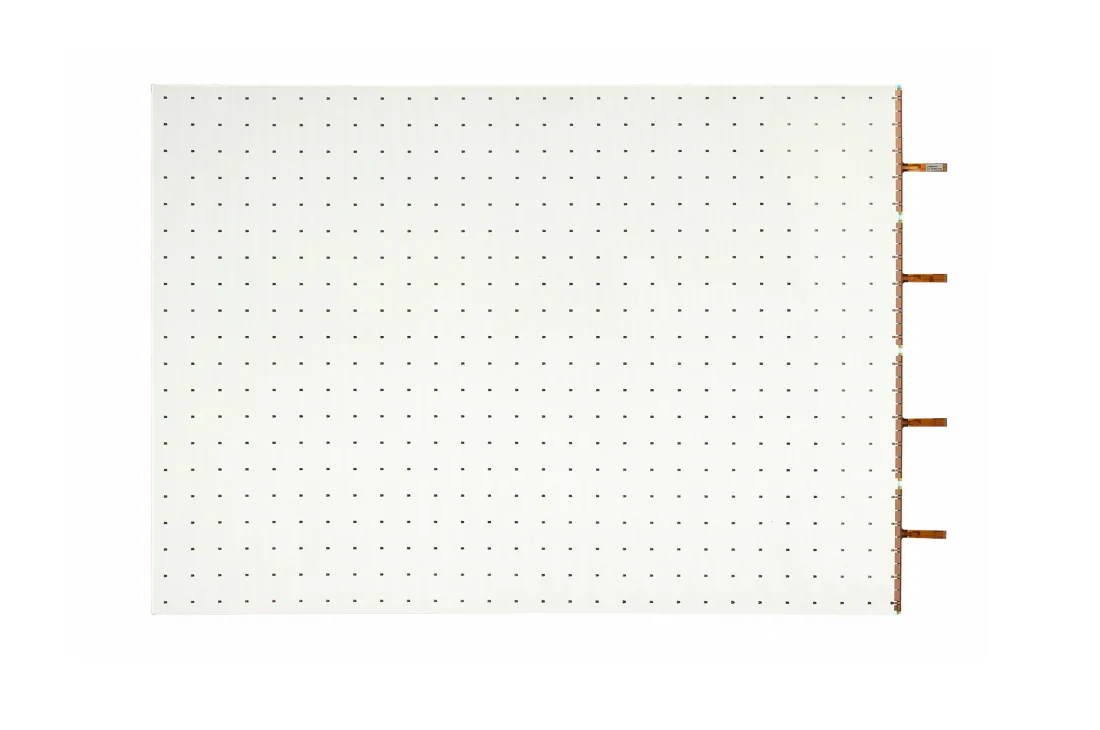

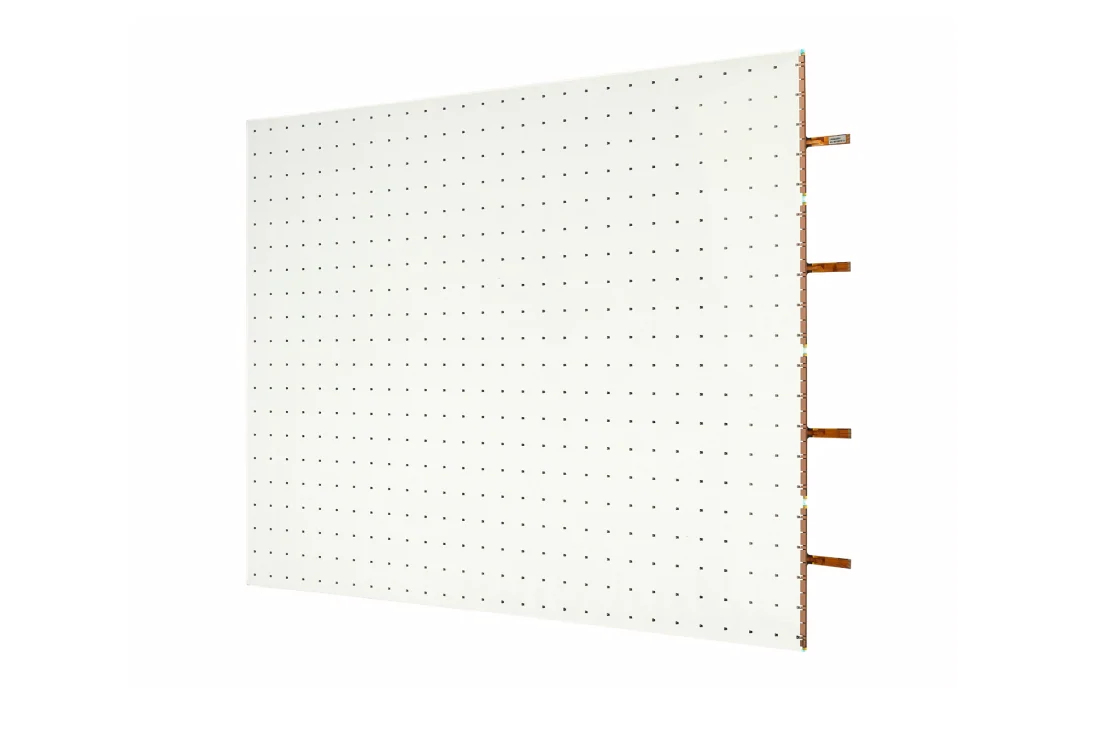

Color Transparent LED Film (LAT240)
Color Transparent LED Film (LAT240)
Color Transparent LED Film (LAT240)

Color Transparent LED Film (LAT240)

  • Pitch: 24mm
  • LED Type: R,G,B 3in1 Color Package
  • Transmittance: 73%
  • Curvature(Convex and Concave): 1,100R
  • Self-adhesive Film
  • High Transparency

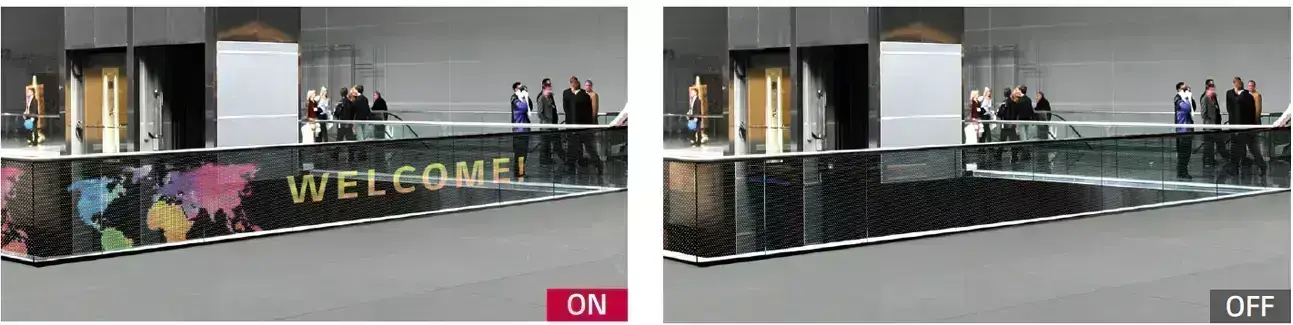

    High transparency*(73%) allows glass to remain visible even after attaching the
    film, with no adverse effects on the original design. When the LED is OFF, the film
    is unnoticeable, blending into the glass completely.

  • img

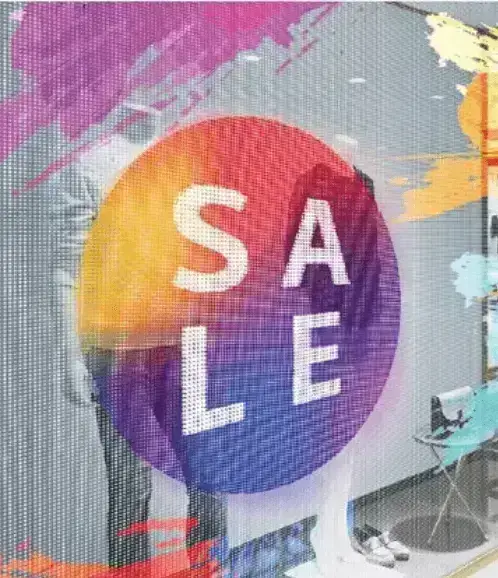

    Full Color Expression

    LG Color Transparent LED film delivers a surprisingly wide range of colors using a 24 mm pitch. Applications can be extended to display an entire video or pictures in which various colors combinations are possible.

  • img

    Easy Space Innovation

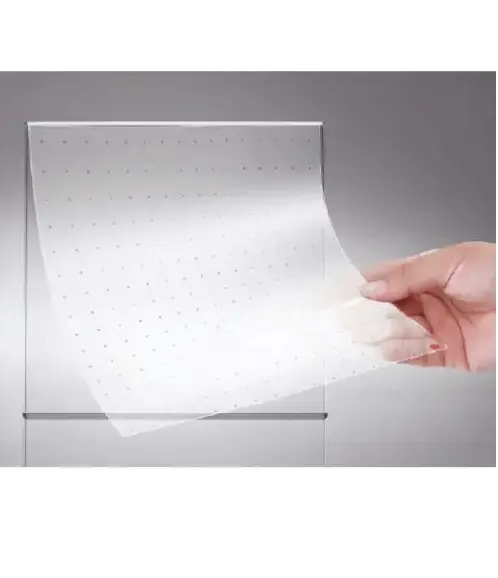

    Self-adhesive Film

    The transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass wihout the need for any complicated construction.

  • img

    Easy Space Innovation

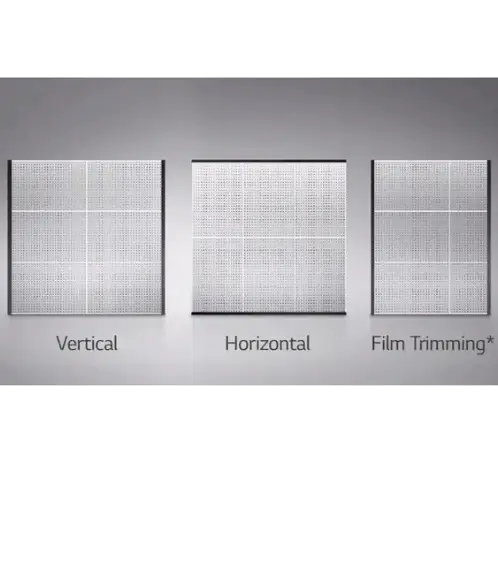

    Superb Expandability and Flexibility

    The size and layout of the film can be customized to fit in to the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.

  • img

    Easy Space Innovation

    Curved Format Supported

    The transparent LED film supports curvatures up to 1,100R convex and concave for curved glass or window applications. This allows a wider range of venues to be redesigned as a landmark.

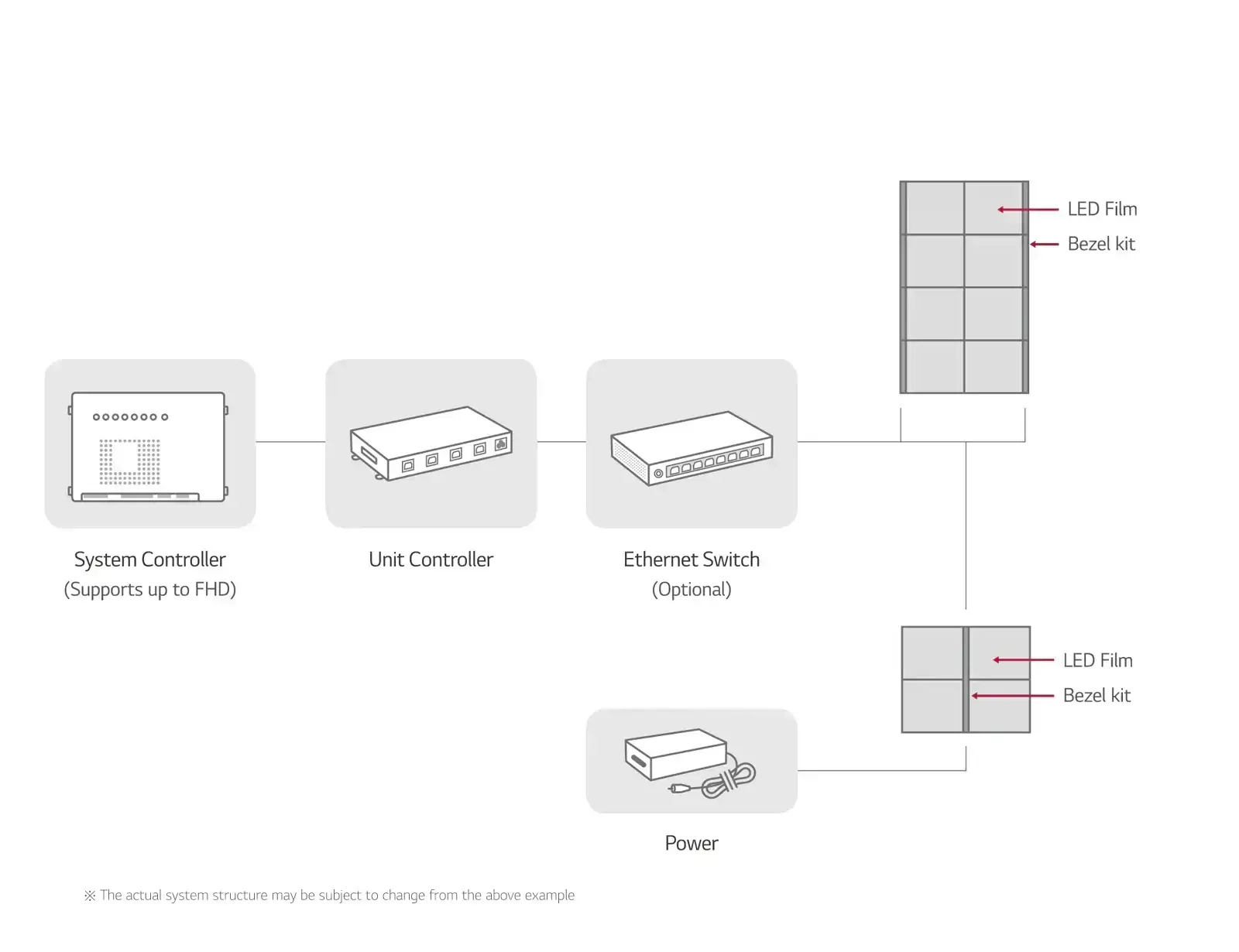

  • System Connection


LAT240DT1

  • Pitch
    24±0.2mm
    LED Type
    R, G, B 3in1 Color Package (SMD1818)
  • Resolution
    28 x 20
    Pixels per Panel
    560
  • Pixel Density [point/m²]
    1,736
    Brightness (After Calibration)
    >1,000nit
  • Contrast Ratio
    ≥ 100,000:1
    Luminance Uniformity
    ≥ 70%
  • Chromaticity Uniformity
    Δu’v’≤0.015
    Viewing Angle (H x V)
    120 x 120
  • Lifetime (Duration of Half Brightness in Hours)
    50,000
    Daily Usage
    24 Hrs / 7 Days
  • Warranty
    2 Years
    Transmittance
    73%
  • Operating Temperature
    0℃ ~ 45℃ (Indoor Glass Installation Only)
    Curved Installation
    1,100R (Convex and Concave)
  • Film Trimming
    Yes (Parallel to the Bezel Side Only)
    Film Surface Color Distortion
    No
  • Color Processing
    130/120/110 Level (R, G, B)
    Colors
    1,716,000 Colors
  • Color Chromaticity
    Cx: 0.28±0.03, Cy: 0.28±0.03
    Dimension (W x H x D)
    668 x 480 x 2.0 mm (with Front & Back Protection Film)
  • Weight
    0.73 kg
    Power Consumption
    37W (Transparent panel 1EA + Bezel kit 1EA)

1ST BEZEL KIT

  • Dimension (W x H x D)
    547.3 x 63 x 24 mm
    Weight
    0.45 kg

COMMON BEZEL KIT

  • Dimension (W x H x D)
    479.5 x 28.1 x 24 mm
    Weight
    0.26 kg

UNIT CONTROLLER

  • Resolution
    960 x 540 (4 Unit Controllers Needed for FHD)
    Interface
    Input : LVDS
    Output : RJ45 x4EA
  • Maximum Transmission Length
    100 m
    Dimension (W x H x D)
    293 x 37 x 188.7mm
  • Weight
    1.5 kg
    Temperature Sensor
    Yes
  • Power Consumption
    20 W

SYSTEM CONTROLLER

  • Video (Max. Input Resolution)
    DP: 3,840 x 2,160 @30Hz
    HDMI: 3,840 x 2,160 @30Hz
    DVI-D: 1,920 x 1,080 @60Hz
    Input
    HDMI, DP, DVI-D, RS232C, RJ45 (w/o LED Indicator), IR Receiver (for Installation), USB 3.0
  • Output
    LVDS, DP, RS232C, RJ45 (w/o LED Indicator)
    Dimension (W x H x D)
    293 x 40.1 x 193.3 mm
  • Weight (Head)
    1.6 kg
    Temperature Sensor
    O
  • Light Sensor
    O
    Source Selection
    HDMI, DVI-D, DP
  • TPC (Temporal Peak luminance Control)
    Yes
    Power Consumption
    17W
  • CMS S/W
    Yes
    Accessories
    Power cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card

POWER

  • Dimension (W x H x D)
    183 × 86 × 28 mm
    Weight
    0.769 kg
  • Input
    100~240V, 50~60Hz
    Output
    19.5V/10.8A (210W)
  • Color
    White
    DC Output Cable
    14AWG, 1.5m
  • Type
    L Type

Download

  • Datasheet
    01 Mar 2021 797 KB
