Curvable OLED Signage 55EF5F-L

  • Brightness: 150/400nit (APL 100%/25%)
  • Depth: 12.4 mm (Head Only)
  • Curvature: ~1,000R(Concave/convex)
  • Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
  • Artistic Space beyond Display

    Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige enhancing landmark with perfect colors and innovative forms.

  • img

    Absolute Black

    Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

  • img

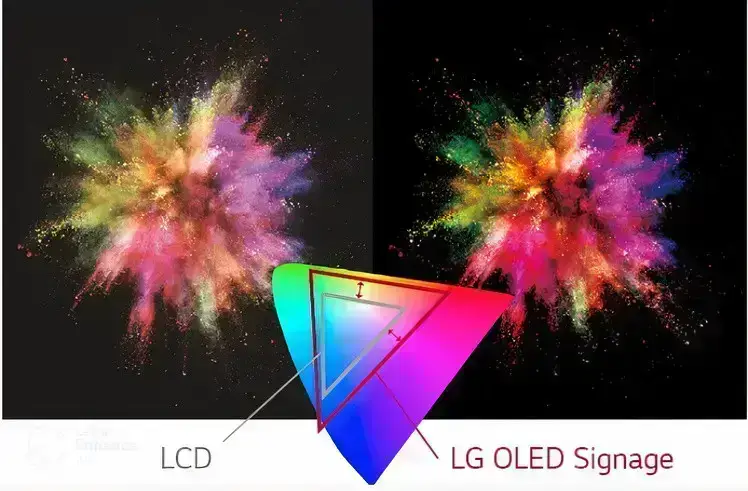

    Rich Color

    LG OLED Signage provides richness in all colors, bringing colors to life with great accuracy and vividness.

  • img

    Splendid Design

    LG OLED technology doesn’t require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.

  • img

    Expandable Screen Size

    The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.

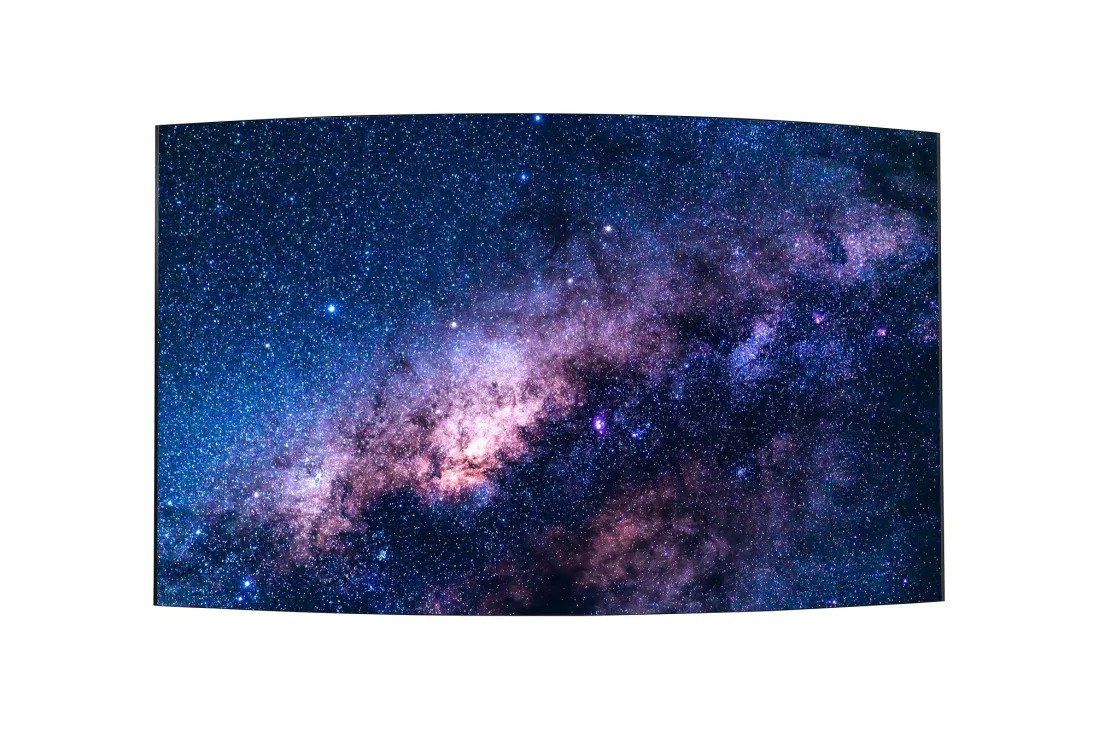

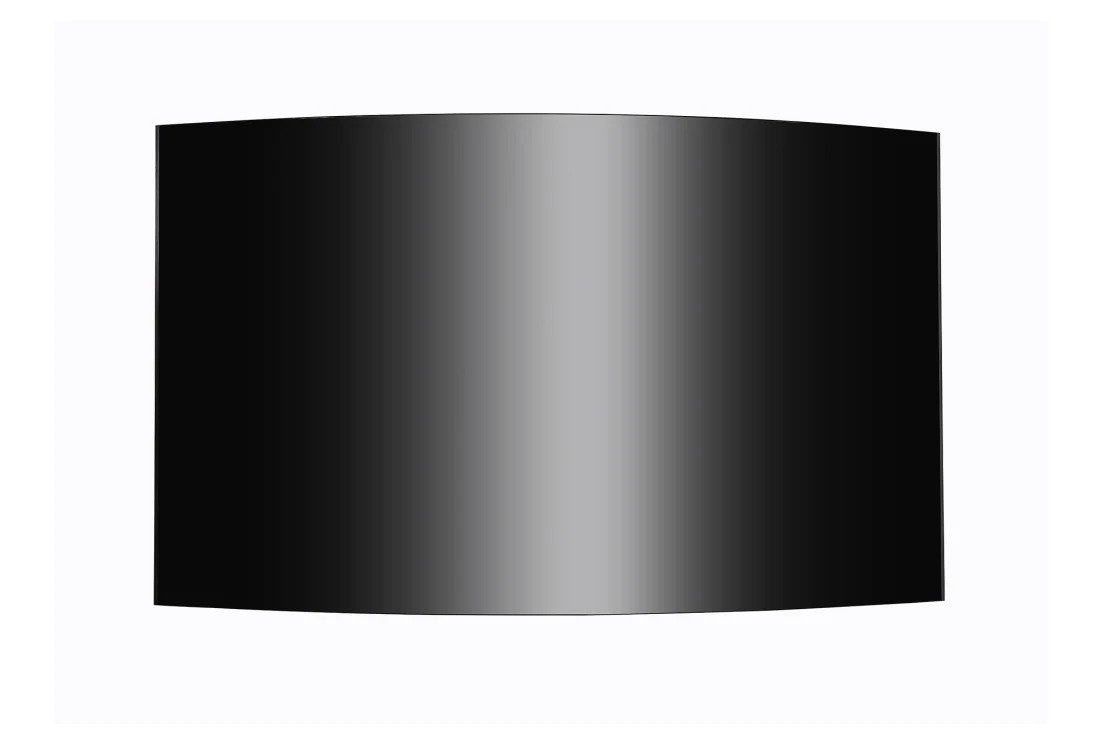

  • DESIGN FLEXIBILITY Variety of Curvature for Landmarks

    The 55EF5F series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

  • DESIGN FLEXIBILITY On-site Customization

    The 55EF5F series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)1)" supports the coordination of displays with various convex and concave curvature, depending on the requirements.

  • img

    EXCELLENT PERFORMANCE LAN Daisy Chain Management

    The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.

  • img

    EXCELLENT PERFORMANCE Synced Playback

    Through its built-in high performance SoC, each display plays its video tile without lag for synchronized content playback.

PANEL

  • Screen Size
    55″
    Panel Technology
    OLED
  • Native Resolution
    1,920 x 1,080 (FHD)
    Brightness
    150/400nit (APL 100%/25%)
  • Contrast Ratio
    150,000 : 1
    Color gamut
    BT709 120%
  • Viewing Angle (H x V)
    178 x 178
    Color Depth
    10bit(R), 1.07Bilion colors
  • Response Time
    1ms (G to G), 8ms (MPRT)
    Surface Treatment(Haze)
    Hard coating (2H)
    Reflectance Typ. 1.2%
  • Operation Hours (Hours/Day)
    18/7 (Moving Content Only)
    Portrait / Landscape
    Yes / Yes

CONNECTIVITY
(JACK INTERFACE)

  • Input – Digital – HDMI
    Yes (1), HDCP1.4
    Input – Digital – DP
    Yes (1), HDCP1.3
  • Input – RS232C IN
    Yes (1)
    Input – RJ45(LAN)
    Yes (1)
  • Input – IR IN
    Yes (1), External IR Receiver
    Input – USB
    USB2.0 Type A(2)
  • output – DP Out
    Yes (1)
    output – Audio Out
    Yes (1)
  • output – RS232C OUT
    Yes (1) (w/ IR out)
    output – RJ45(LAN)
    Yes (1)

MECHANICAL SPECIFICATION

  • Bezel Color
    Black
    Bezel Width
    T/R/L/B : 0.6/6.7/6.7/0.6mm (LandScape, Off Bezel)
    T/R/L/B : 0.6/6.7/6.7/0.6mm (Portrait, Off Bezel)
    T/R/L/B : 5.0/7.6/7.6/10.6mm (LandScape, On Bezel)
    T/R/L/B : 5.0/13.2/7.8/5.0mm (Portrait, On Bezel)
  • Weight (Head)
    5.8Kg (LandScape, Head)
    7.0Kg (Portrait, Head)
    3.5Kg (Signage Box)
    Monitor Dimension (W x H x D)
    1224.9 x 696.2 x 38.0mm (LandScape, Head, w/Pemnut)
    701.4 x 1219.7 x 38.0mm (Portrait, Head, w/Pemnut)
    1224.9 x 696.2 x 12.4mm (Landscape, Head, w/o Pemnut)
    701.4 x 1219.7 x 12.4mm (Landscape, Head, w/o Pemnut)
    413 x 353 x 57.3mm (Signage Box)

KEY FEATURE

  • HW – Internal Memory
    16GB
    HW – Sensor – Temperature Sensor
    Yes
  • HW – FAN
    Yes
    SW – webOS ver.
    webOS4.0
  • SW – Embedded CMS – Local Contents Scheduling
    Yes
    SW – Embedded CMS – Group Manager
    Yes
  • SW – USB Plug & Play
    Yes
    SW – Fail over
    Yes
  • SW – Sync Mode – RS-232C Sync
    Yes
    SW – Sync Mode – Local Network Sync
    Yes
  • SW – Video Tag
    Yes (4)
    SW – Rotation – Screen Rotation
    Yes
  • SW – Rotation – External Input Rotation
    Yes
    SW – Gapless Playback
    Yes
  • SW – Tile Mode Setting
    Yes
    SW – Setting Data Cloning
    Yes
  • SW – SNMP
    Yes
    SW – ISM Method
    Yes
  • SW – Auto Set ID
    Yes
    SW – Status Mailing
    Yes
  • SW – Control Manager
    Yes
    SW – 3rd Party Compatibility – Crestron Inside
    Yes
  • SW – Power – PM mode
    Yes
    SW – Power – Wake on LAN
    Yes
  • SW – HDMI-CEC
    Yes
    SW – SI Server Setting
    Yes
  • SW – Pro:Idiom
    Yes

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    AC 100-240V~, 50/60Hz
    Power Type
    Built-In Power

POWER CONSUMPTION

  • Typ.
    309 W
    Max.
    318 W
  • BTU (British Thermal Unit)
    1054 BTU/Hr(Typ.), 1085 BTU/Hr(Max)
