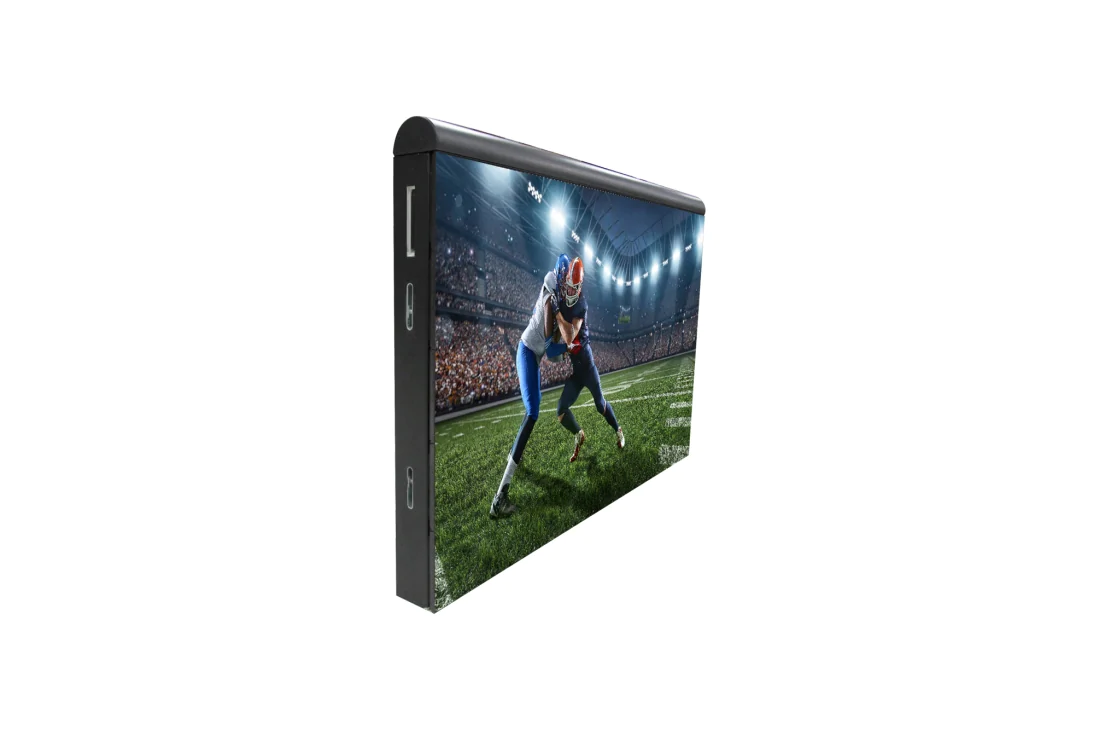

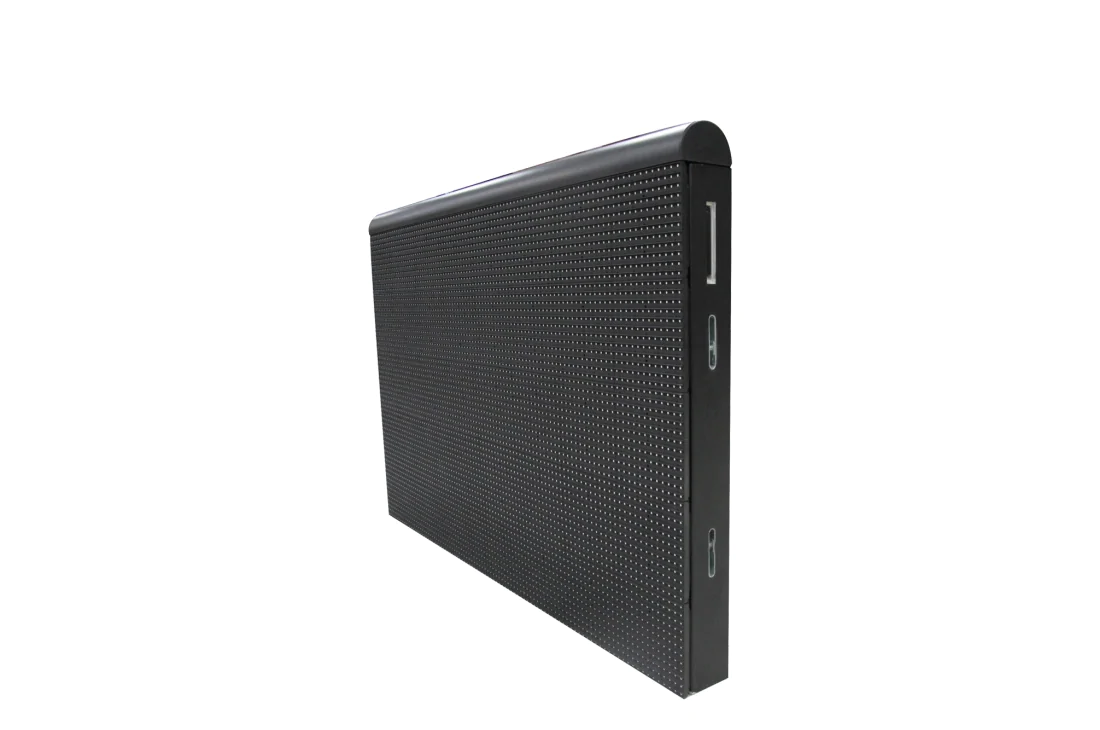

Stadium Series (Perimeter)

  • Pixel Pitch: 16.0mm
  • Brightness: 6,000cd/m²
  • Outstanding Visibility
  • High Refresh Rate of 4,000Hz
  • 16-bit Color Processing
  • Reliable Weatherproof Design

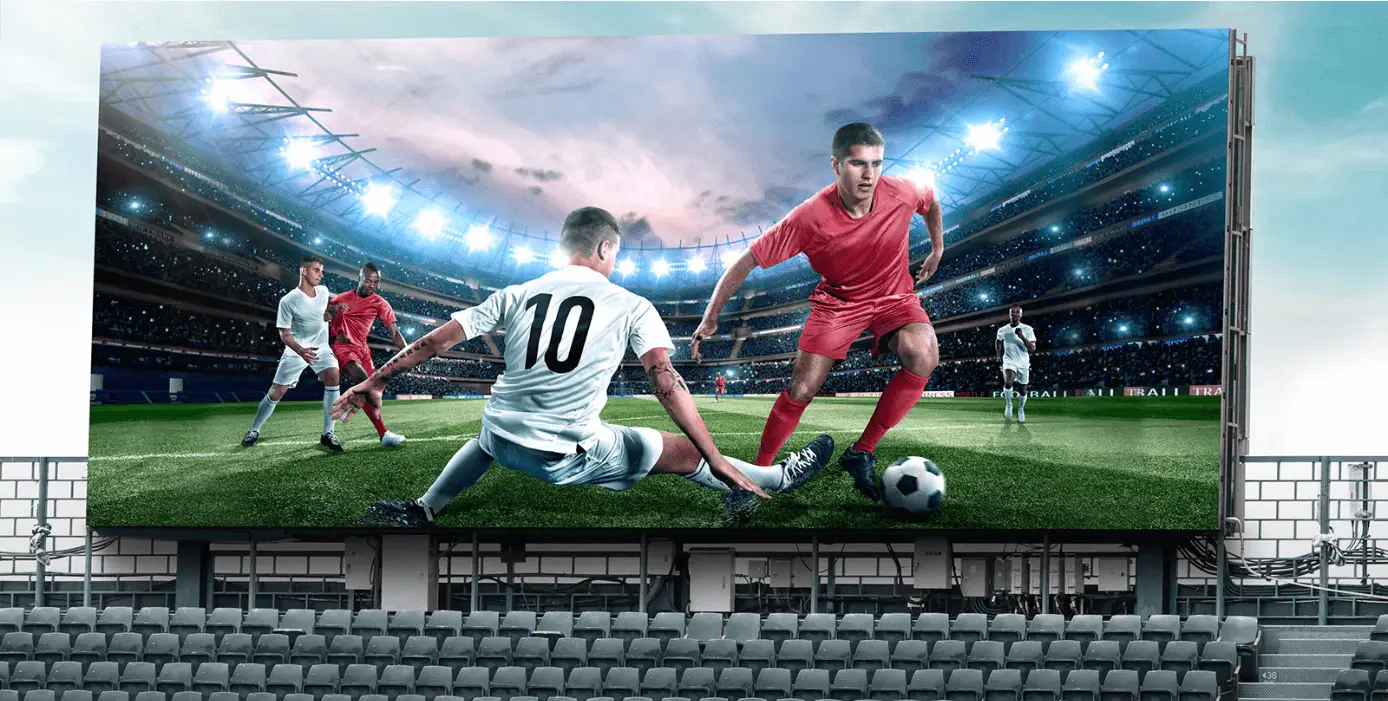

  • Outstanding Visibility

    Offering a powerful 6,000 nits brightness (customizable up to 8,500 nits), this super-bright display excels outdoors even in direct sunlight, instantly captivating attention and effectively delivering content.

  • Smooth Playback in Dynamic Motion

    A high refresh rate of 4,000Hz ensures smooth playback. Flicker-free images prevent the black bars that appear in video recordings, as well as viewer eye strain and blurred vision.

  • img

    Detailed Expression of Color Depth

  • img

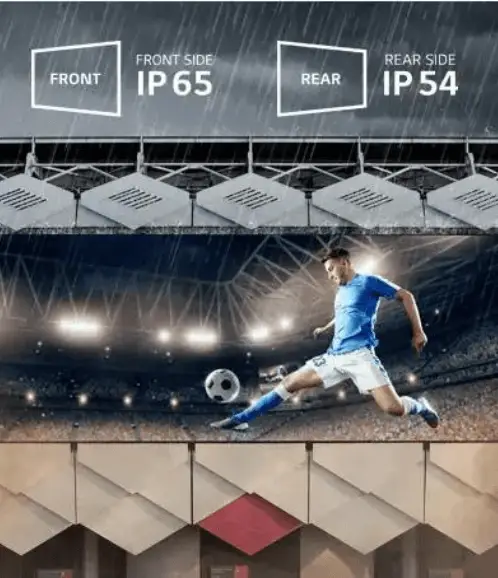

    Reliable Weatherproof Design

  • img

    Front and Rear Serviceability

  • img

    Uniform Picture Quality

  • img

    Vividness with Color Accuracy

  • img

    RoHS Certified Safe Product



PHYSICAL PARAMETER

  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    16.00
  • Module Resolution (W x H)
    12 × 12
    Module Dimensions (W x H, mm)
    192 × 192
  • Weight per Module (kg)
    0.58
    No. of Modules per Cabinet (W × H)
    8 × 5
  • Cabinet Resolution (W × H)
    96 × 60
    Cabinet Dimensions (W × H × D)
    1536 × 960 × 215
  • Cabinet Surface Area (m²)
    1.475
    Weight per Cabinet (kg/cabinet)
    71.0
  • Weight per Square Meter (kg/m²)
    48.1
    Physical Pixel Density (pixels/m²)
    3,906
  • Flatness of Cabinet
    ±1.0 mm
    Cabinet Material
    Aluminum Sheet
  • Service Access
    Front and Rear

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    6,000
    Color Temperature
    3500 ~ 8500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    105
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    3,000
    Processing Depth (bit)
    16

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    1050
    Power Consumption (W/cabinet, Avg.)
    420
  • Power Consumption (W/m², Max.)
    712
    Power Consumption (BTU/h/cabinet, Max.)
    3,583
  • Power Consumption (BTU/h/cabinet, Avg.)
    1,433
    Power Consumption (BTU/h/m², Max.)
    2,429
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    4,000

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -20° to +50°
  • Operating Humidity
    10-90%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP54

CERTIFICATION

  • Certification
    CE,FCC,ETL

ENVIRONMENT

  • Environment
    RoHS, REACH
