Fine-pitch Essential Series

  • Pixel Pitch: 0.945mm
  • Brightness: 600cd/m²
  • 16:9 Aspect Ratio
  • Lightweight Cabinet Design
  • Front Serviceability

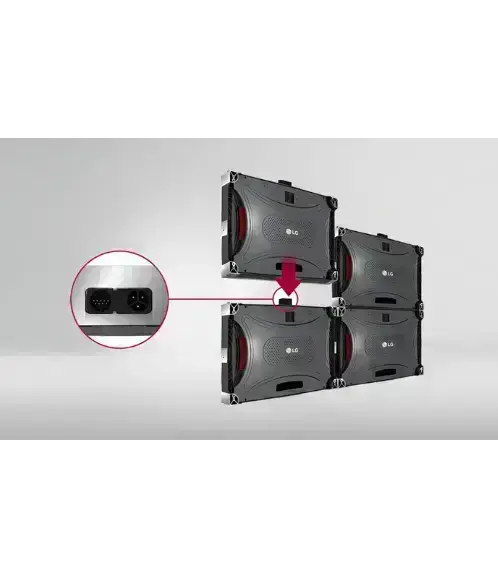

  • Cableless Installation and Clean Design

    Cabinets are stackable, with sockets on the top and bottom that align. Thanks to the built-in power and signal connector protruding from the top, there is no need for wiring between cabinets. With easy installation and seamless appearance, this design eliminates the need for cables or additional space.

  • 16:9 Aspect Ratio Optimized for FHD/UHD Content

    Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content. This allows you to enjoy existing content without additional editing.

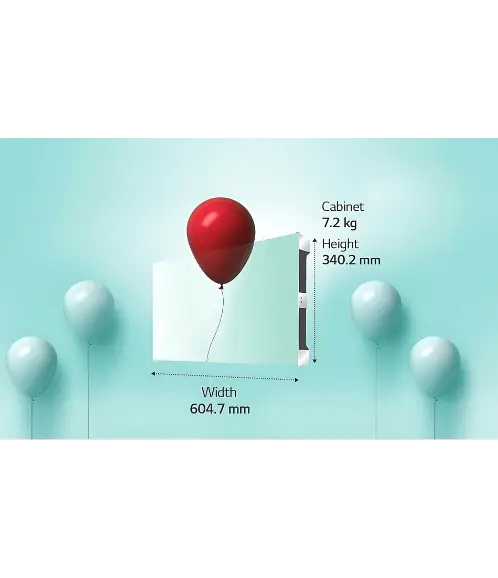

  • Easy-handling Lightweight Cabinet

    It’s lightweight and easy to install, preventing damage during installation. A full set of LED screens is still lightweight, reducing strain on the structure holding the screens.

  • Signal / Power Redundancy

    With an additional controller and power unit, a back-up controller activates if a signal transmission error occurs, preventing a screen blackout error (Signal Redundancy). The product also offers Power Redundancy as an option. Two power units are provided in single LED cabinet one activates to provide power when the other fails.

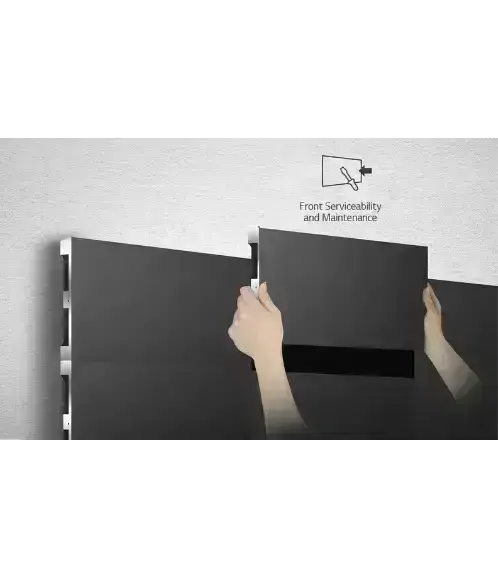

  • Front Serviceability

    The product offers front access, freeing customers from needing rear access space.

  • Compatibility with LG Software Solutions

    Powered by LG’s high performance system controller, the LAS-F series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and Signage365Care, which help customers operate their own business flawlessly.

  • Uniform Picture Quality

    Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97% brightness uniformity.

  • Vividness with Color Accuracy

    LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

  • RoHS Certified Safe Product

    Boasting RoHS certification, all LG LED signage models are environmentally-friendly products that do not use materials harmful to the environment and people.


PHYSICAL PARAMETER

  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    0.945
  • Module Resolution (W x H)
    320 × 180
    Module Dimensions (W x H, mm)
    302.4 × 170.1
  • Weight per Module (kg)
    0.65
    No. of Modules per Cabinet (W × H)
    2 × 2
  • Cabinet Resolution (W × H)
    640 × 360
    Cabinet Dimensions (W × H × D)
    604.8×340.2×72.5
  • Cabinet Surface Area (m²)
    0.206
    Weight per Cabinet (kg/cabinet)
    7.4
  • Weight per Square Meter (kg/m²)
    36.0
    Physical Pixel Density (pixels/m²)
    718,184
  • Flatness of Cabinet
    ±0.5
    Cabinet Material
    Die Casting Aluminum
  • Service Access
    Front
    * Min. 50mm needed between cabinet rear surface and back wall.

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    600
    Color Temperature
    3,000 – 10,000
  • Visual Viewing Angle (H×V)
    160 × 140
    Brightness Uniformity
    ≥ 97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    7,000
  • Processing Depth (bit)
    16

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    120
    Power Consumption (W/cabinet, Avg.)
    62
  • Power Consumption (W/m², Max.)
    620
    Power Consumption (BTU/h/cabinet, Max.)
    409
  • Power Consumption (BTU/h/cabinet, Avg.)
    212
    Power Consumption (BTU/h/m², Max.)
    2,115
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10° to +40°
  • Operating Humidity
    10-80% RH
    IP rating Front / Rear
    IP5X

CERTIFICATION

  • Certification
    CE/FCC/cTUVus/CB

ENVIRONMENT

  • Environment
    RoHS/REACH

CONTROLLER

  • Controller
    LCLG006
