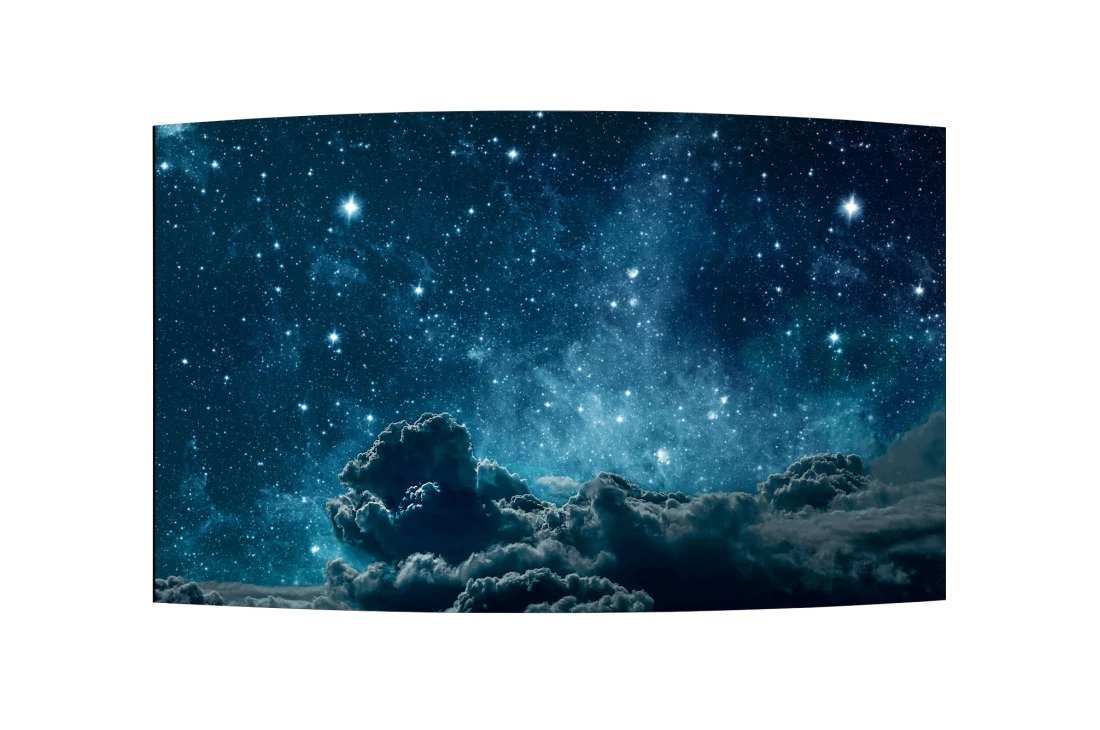

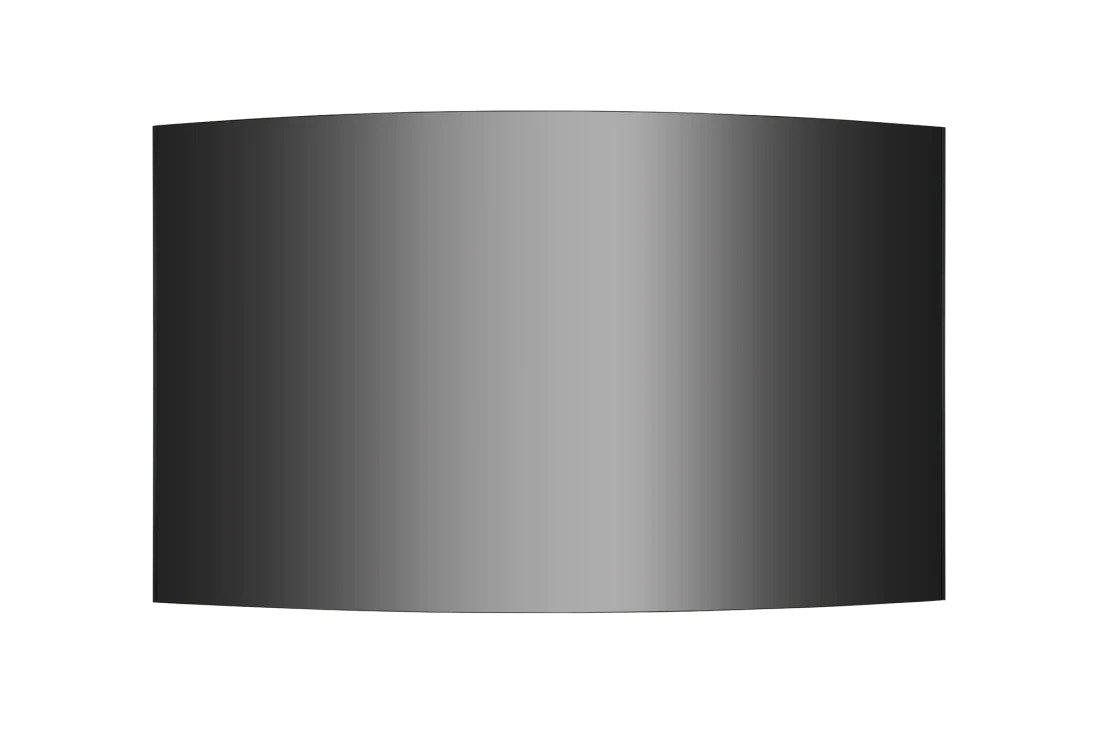

Curvable OLED Signage 55EF5G-L

  • Brightness(Typ.): 400 cd/m² (Average Picture Level 25%)
  • Depth: 12.4 mm (Head Only)
  • Curvature: ~1,000R(Concave/convex)
  • Interface: HDMI, DP, USB(2), Audio, RS232C, RJ45, IR
  • Artistic Space beyond Display

  • Blending in with space while captivating everyone’s mind. LG OLED signage offers an unprecedentedly flexible design. Beyond its informative features, LG OLED signage delivers unsurpassed advertising effectiveness, redesigning space as a prestige enhancing landmark with perfect colors and innovative forms.

  • img

    UNRIVALED PICTURE QUALITY

    Perfect Black

    Equipped with over 8 million self-lighting pixels operating individually, LG OLED Signage reproduces absolute blacks with no light bleed and offers infinite contrast.

  • img

    UNRIVALED PICTURE QUALITY

    Perfect Color

    LG OLED Signage provides richness in all colors, bringing colors to life with superb accuracy and vividness.

  • img

    UNRIVALED PICTURE QUALITY

    Perfect Viewing Screen

    LG OLED Signage delivers its awe-inspiring picture quality and brightness even from wide viewing angles.

  • img

    SPACE-FITTING DESIGN

    Perfect Design

    LG OLED technology doesn't require a backlight unit nor a liquid crystal layer so it offers a flexible design with unbelievably lightweight and slim features.

  • img

    SPACE-FITTING DESIGN

    Expandable Screen Size

    The screen size can be as large as users want by tiling up displays horizontally and vertically. This provides viewers with an incredibly immersive viewing experience.

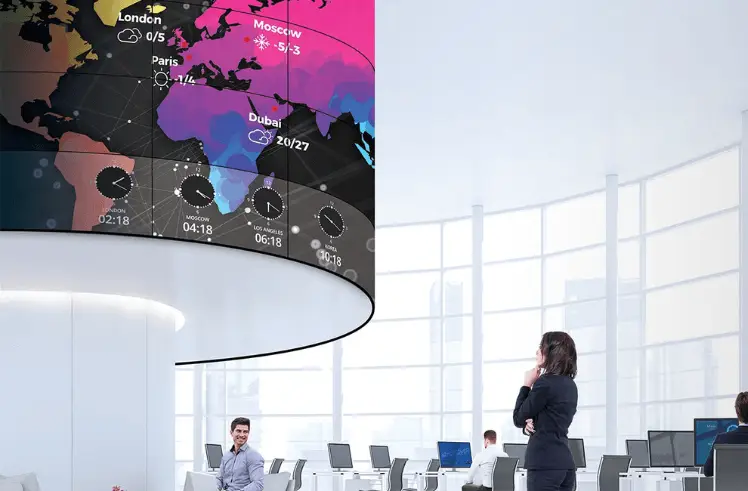

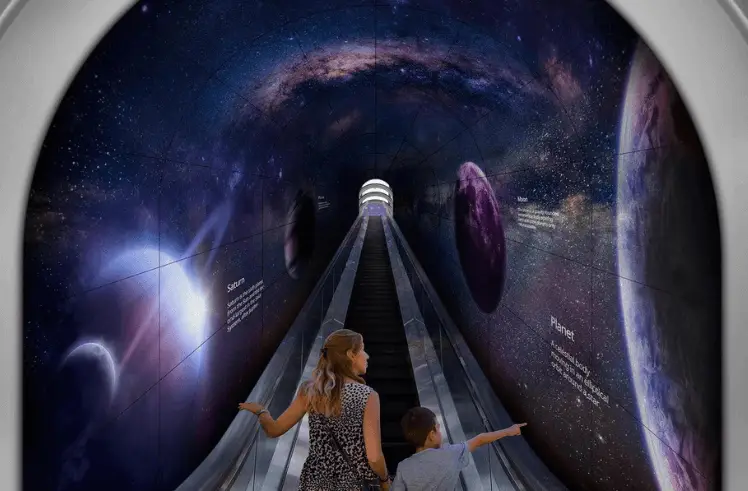

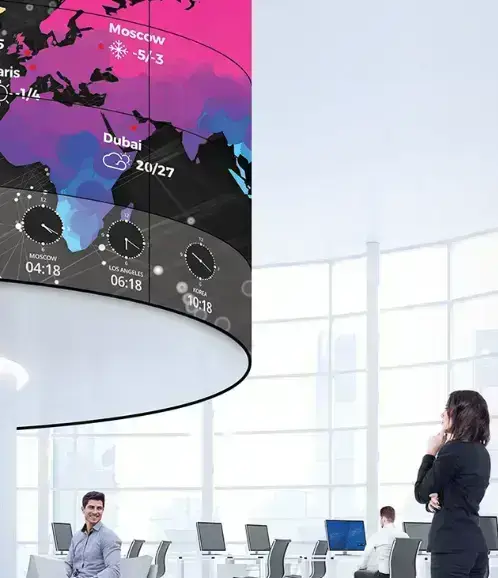

  • Variety of Curvature for Landmarks

    The 55EF5G series supports various concave and convex curvature in both portrait and landscape orientations. You can differentiate your space in a variety of ways with beautifully curved displays to keep passengers captivated and immersed.

  • On-site Customization

    The 55EF5G series enables a completely new approach for innovative and flexible designs. Its optional "Curvature Calibrator(CC)*" supports the coordination of displays with various convex and concave curvature, depending on the requirements. This makes it possible to rapidly respond to changes on-site, making it easier to successfully build an eyecatching landmark.

  • img

    LAN Daisy Chain Management

    The LAN daisy chain allows users to control and monitor displays, transmit data and even update firmware all at once, reducing management burden.

  • img

    Videowall Playlist & Sync Playback

    Through its built-in high-performance SoC, each display plays its video tile for synchronized content playback.

PANEL

  • Screen Size
    55″
    Panel Technology
    OLED
  • Aspect Ratio
    16 : 9
    Native Resolution
    1,920 x 1,080 (FHD)
  • Brightness (APL25%, Typ., cd/m²)
    400
    Brightness (APL100%, Typ., cd/m²)
    150
  • Contrast Ratio
    150,000 : 1
    Viewing Angle (H x V)
    178 x 178
  • Life Time (Typ.)
    30,000 Hrs
    Operation Hours
    18 Hrs / 7 Days (Moving Video Only)
  • Orientation
    Landscape & Portrait

CONNECTIVITY

  • Input
    HDMI, DP, USB 2.0 (2)
    Output
    DP, Audio (Fixed/Off/Variable)
  • External Control
    RS232C In/out, RJ45 In/out, IR In

PHYSICAL SPECIFICATION

  • Bezel Width (T/B/L/R)
    0.6 / 0.6 / 6.7 / 6.7 mm (Flat, Off Bezel)
    5.0 / 10.6 / 7.6 / 7.6 mm (Flat, On Bezel)
    Monitor Dimension (W x H x D)
    1,224.9 x 696.2 x 38.0 mm (Head, w/Pem-nut)
    1,224.9 x 696.2 x 12.4 mm (Head Only)
    Signage Box: 413 x 353 x 57.3 mm
  • Weight
    6.6 kg (Head)
    Signage Box: 3.5 kg
    Carton Dimensions (W x H x D)
    1,350 x 837 x 250 mm
  • Packed Weight
    17 kg (Head)

ENVIRONMENT CONDITIONS

  • Operation Temperature
    0°C to 40°C
    Operation Humidity
    10 % to 80 %

POWER

  • Power Supply
    100-240V~, 50/60Hz
    Power Type
    Built-In Power
  • Power Consumption (Typ. / Max.)
    309 W / 318 W (Based on 8 color bar)

CERTIFICATION

  • Safety
    CB / NRTL
    EMC
    FCC Class “A” / CE / KC
  • ErP / Energy Star
    Yes (EU Only) / No

MEDIA PLAYER COMPATIBILITY

  • OPS type compatible
    No

SOFTWARE COMPATIBILITY

  • Content Management Software
    SuperSign CMS
    Control and Monitoring Software
    SuperSign Control+ / Control
  • Signage365Care
    Yes

ACCESSORIES

  • Basic
    Remote Controller, Power Cord, QSG, IR Receiver, Regulation Book, Phone to RS232C Gender, FFC Cables(220mmx4ea for Connection between Panel and Signage Box), DP Cable, LAN Cable, RS232 Cable(4P-4P), LC Cable(VLC), Tapes, Screws, Shield Cover Ass’y, Tiling Set Fixers, Flex Bars
