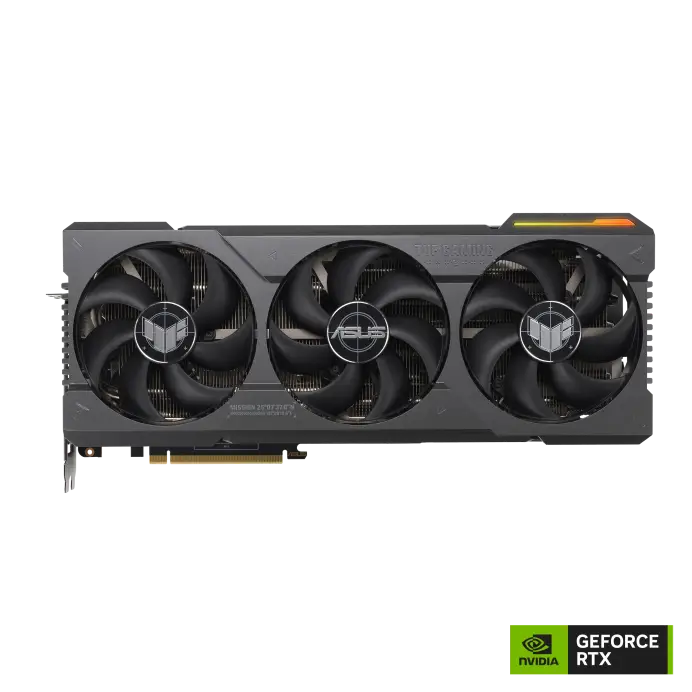

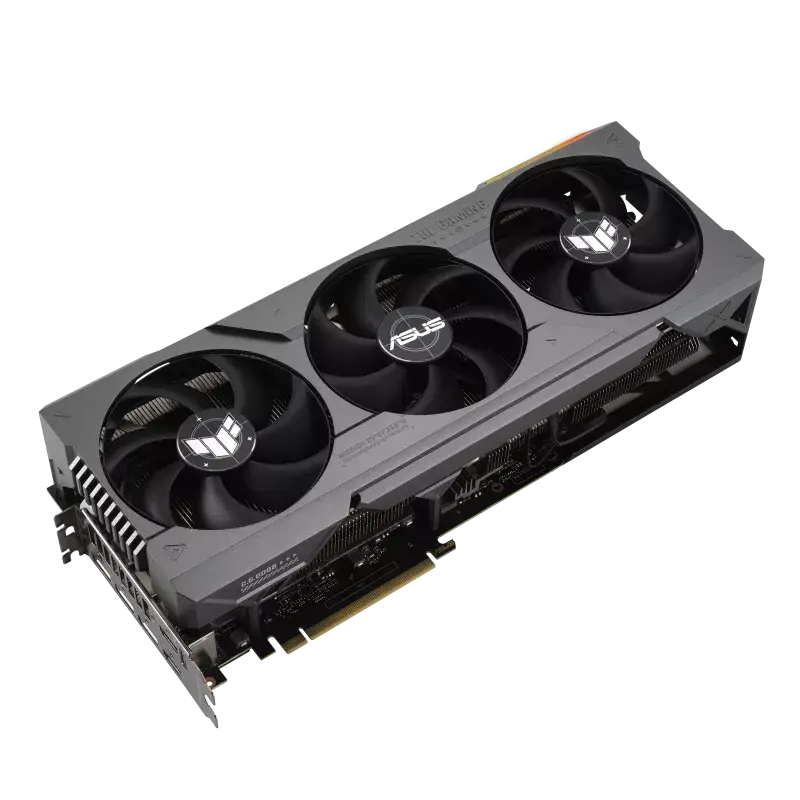

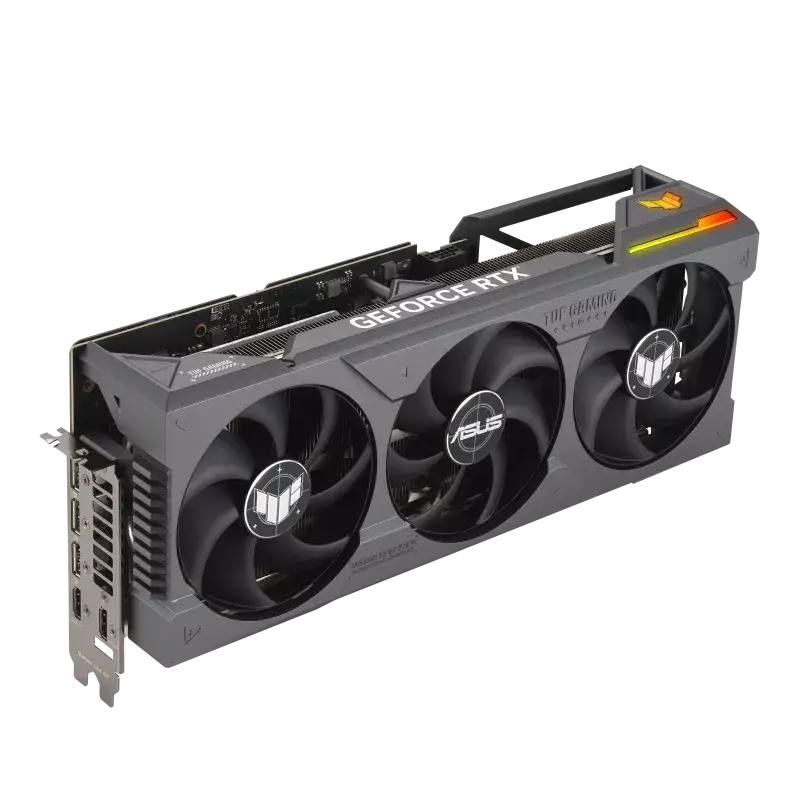

ASUS TUF Gaming GeForce RTX™ 4090 OC Edition 24GB GDDR6X
ARMED FOR FLOW
NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming GeForce RTX™ 4090.
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
✓ New Streaming Multiprocessors
Up to 2x performance and power efficiency
✓ Fourth-Gen Tensor Cores
Up to 2x AI performance
✓ Third-Gen RT Cores
Up to 2x ray tracing performance
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 23% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.

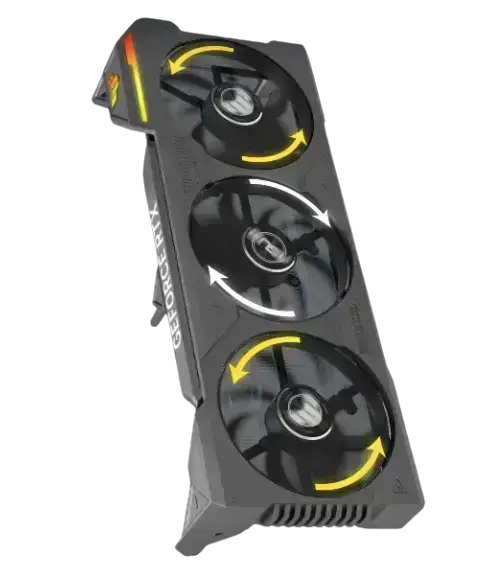

The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 Celsius, referencing a speed curve that balances performance and acoustics for work or play.
Phase That Blaze
A vapor chamber and generously sized heatsink combo efficiently soak up heat from the GeForce RTX 4090 GPU so that it can be whisked away by the three Axial-tech fans.
MILITARY-GRADE 20K CAPACITORS
A lineup of capacitors rated to last 20,000 hours at 105 Celsius brings higher temperature and ripple tolerance to the GPU power rail, arming the card for long-term deployment in challenging conditions.
LOCK, LOAD, AND LET THE PERFORMANCE FLOW
The GeForce RTX 4090 gloriously presented on a backdrop of low noise and rugged durability.
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.

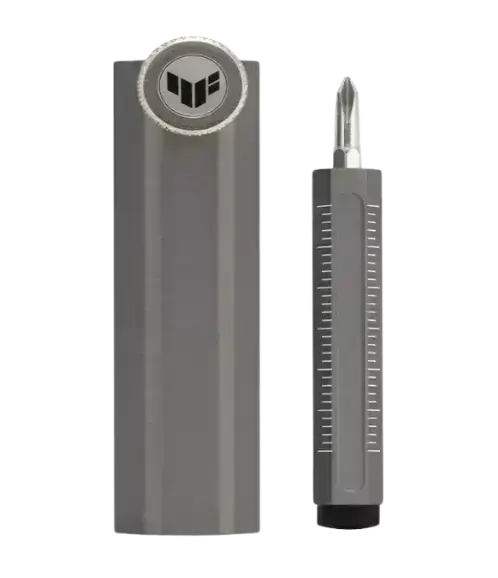

GRAPHICS CARD HOLDER
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
ASUS TUF Gaming GeForce RTX™ 4090 OC Edition
✓ NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
✓ 4th Generation Tensor Cores:Up to 4x performance with DLSS 3 vs. brute-force rendering
✓ 3rd Generation RT Cores: Up to 2X ray tracing performance
✓ OC mode: Boost clock 2595 MHz (OC mode)/ 2565 MHz (Gaming mode)
✓ Axial-tech fans scaled up to deliver 23% more airflow
✓ Dual Ball Fan Bearings last up to twice as long as conventional designs
✓ Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable
✓ Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
✓ Auto-Extreme precision automated manufacturing for higher reliability
✓ GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
Lead time to 2-4 weeks
|MODEL NAME||TUF Gaming GeForce RTX™ 3080 Ti OC Edition|
|Graphic Engine||NVIDIA® GeForce RTX™ 3080 Ti|
|Bus Standard||PCI Express 4.0|
|Video Memory||12GB GDDR6X|
|Engine Clock||OC mode : 1785 MHz (Boost Clock)
Gaming mode : 1755 MHz (Boost Clock)
|Memory Speed||19 Gbps|
|Resolution||Digital Max Resolution 7680 x 4320|
|Interface||Yes x 2 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 1.4a)
HDCP Support Yes (2.3)
|Dimensions||299.9 x 126.9 x 51.7 mm
11.81 x 5 x 2.04 inch
|Power Connectors||2 x 8-pin|
