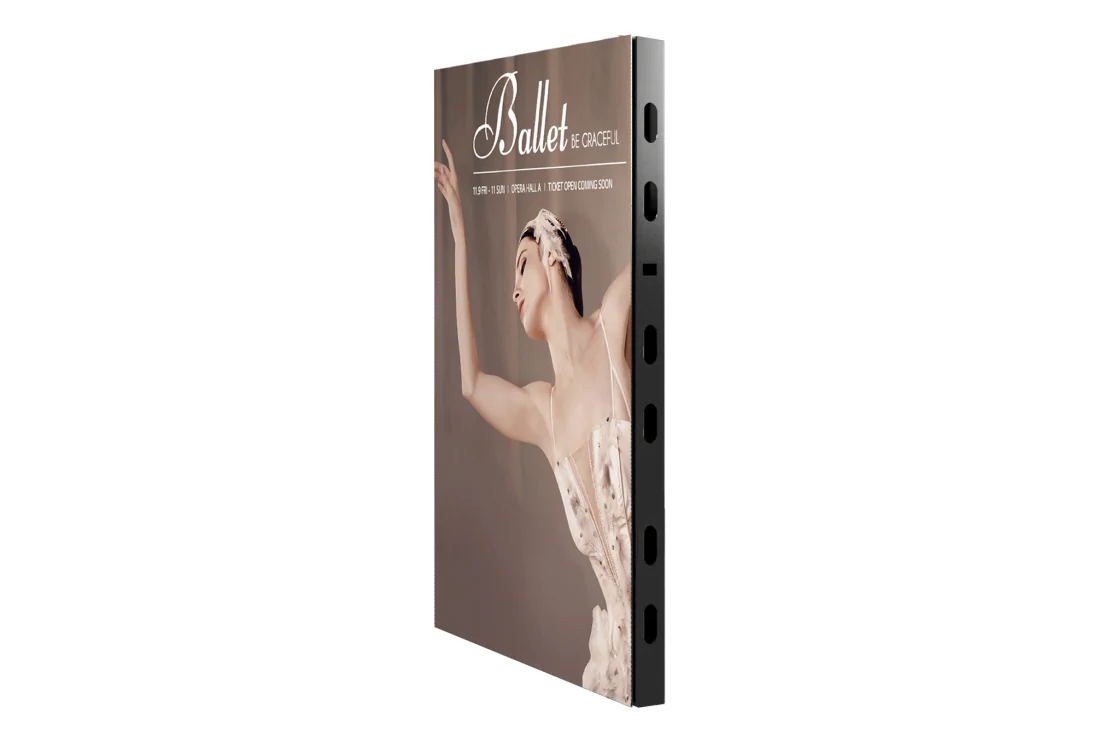

Premium Slim Series

  • Pixel Pitch: 6.25mm
  • Brightness: 6,000cd/m²
  • Outstanding Visibility
  • 16-bit Color Processing
  • Slim and Lightweight Design
  • Reliable Weatherproof Design
  • Outstanding Visibility

    Offering a 6,000 nits, this super-bright display excels outdoors even in direct sunlight, instantly captivating attention and effectively delivering content.

  • Smooth Playback in Dynamic Motion

    A high refresh rate of 4,000Hz assures the smooth playback of content. The flicker-free image prevents the black bars that occur from video shooting, as well as eye strain and blurred vision in viewers.

  • img

    Reliable Weatherproof Design

  • img

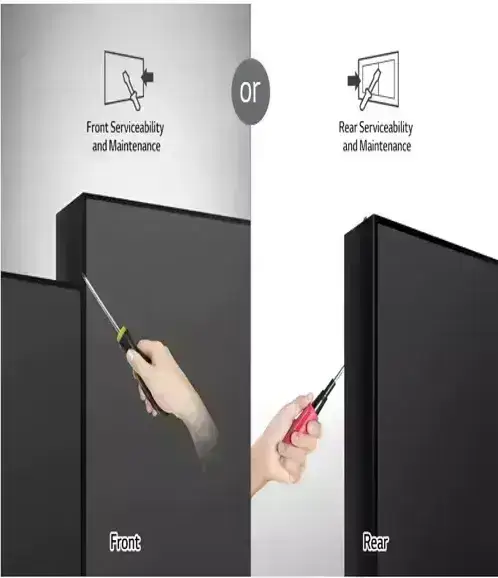

    Front and Rear Serviceability

    The product offers both front access and rear access, allowing customers to choose according to their installation environment and minimizing limitations in installation and maintenance.

  • img

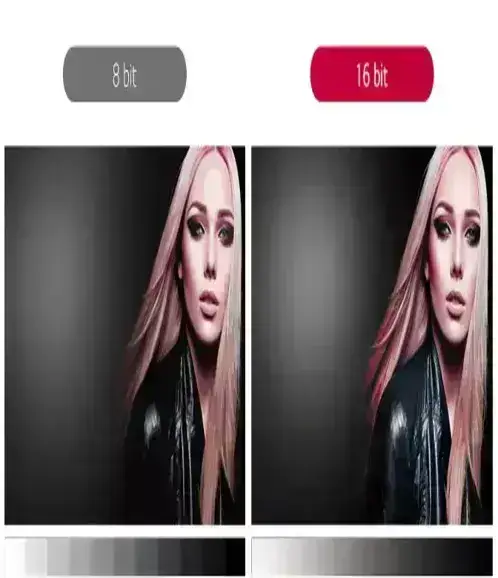

    Detailed Expression of Color Depth

  • img

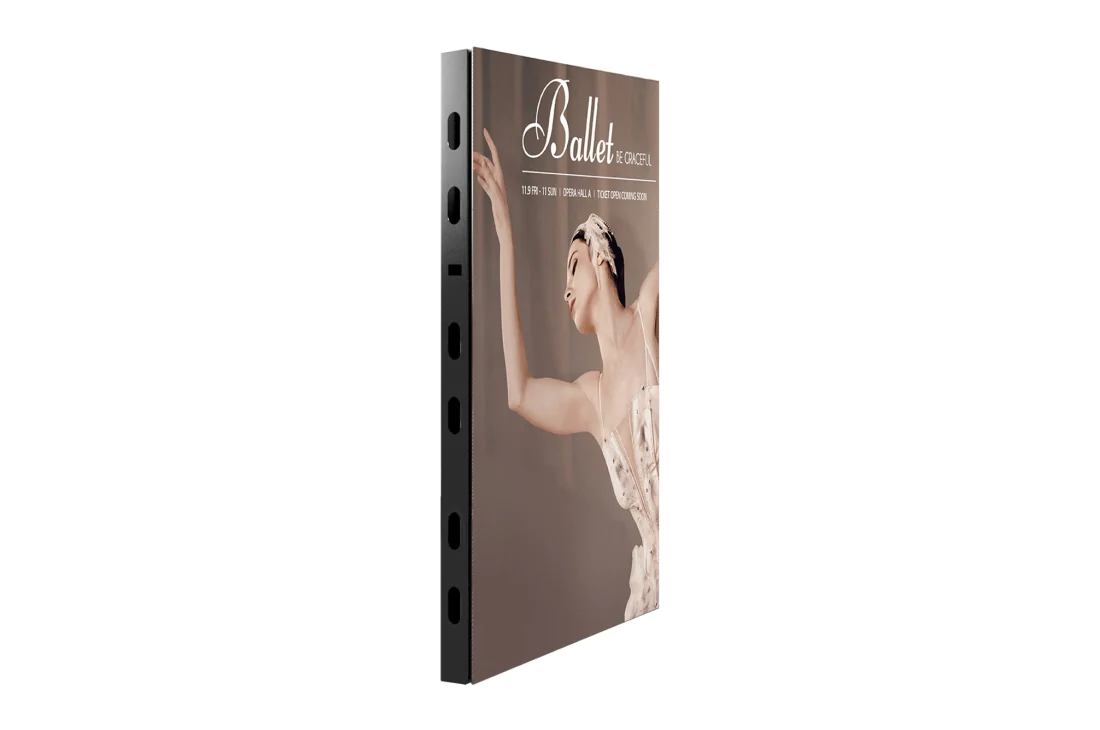

    Slim and Lightweight Design



PHYSICAL PARAMETER

  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    6.25
  • Module Resolution (W x H)
    64 × 64
    Module Dimensions (W x H, mm)
    400 × 400
  • Weight per Module (kg)
    2.45
    No. of Modules per Cabinet (W × H)
    2 × 4
  • Cabinet Resolution (W × H)
    128 × 256
    Cabinet Dimensions (W × H × D)
    800 × 1600 × 143.5
  • Cabinet Surface Area (m²)
    1.280
    Weight per Cabinet (kg/cabinet)
    40.0
  • Weight per Square Meter (kg/m²)
    31.3
    Physical Pixel Density (pixels/m²)
    25,600
  • Flatness of Cabinet
    ±1.0 mm
    Cabinet Material
    Aluminum Sheet
  • Service Access
    Front and Rear

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    6,000
    Color Temperature
    3500 ~ 8500
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    130
  • Brightness Uniformity
    97%
    Color Uniformity
    ±0.05Cx,Cy
  • Contrast Ratio
    3,000
    Processing Depth (bit)
    16

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    940
    Power Consumption (W/cabinet, Avg.)
    376
  • Power Consumption (W/m², Max.)
    734
    Power Consumption (BTU/h/cabinet, Max.)
    3,207
  • Power Consumption (BTU/h/cabinet, Avg.)
    1,283
    Power Consumption (BTU/h/m², Max.)
    2,504
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    4,000

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -30° to +50°
  • Operating Humidity
    < 90%RH
    IP Rating Front
    IP66
  • IP Rating Rear
    IP66

CERTIFICATION

  • Certification
    CE,FCC,ETL

ENVIRONMENT

  • Environment
    RoHS, REACH

CONTROLLER

  • Controller
    LCLH001
