Compact Series

  • Pixel Pitch: 2.5mm
  • Brightness: 1,000cd/m²
  • Fast Installation and Teardown
  • Uniform Picture Quality

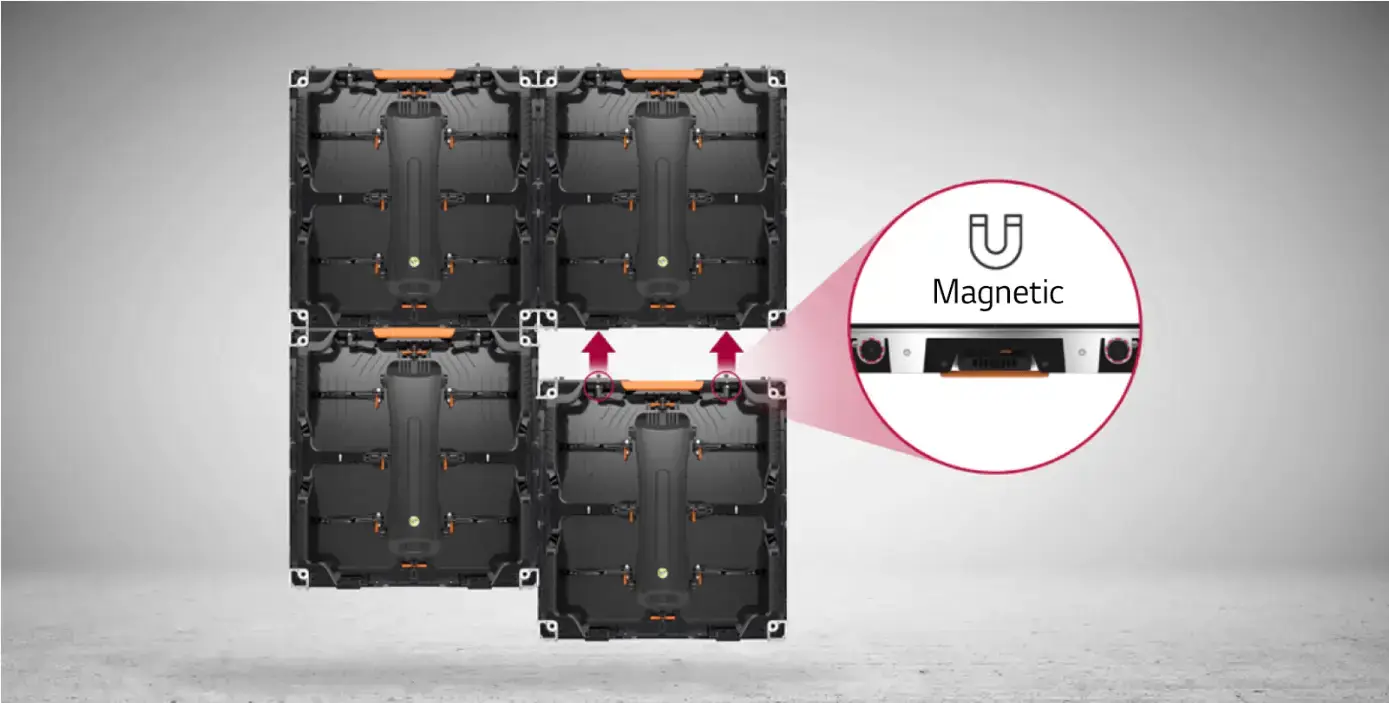

  • Fast Installation and Teardown

    The LED cabinets are attached via magnets for easy installation. Moreover, lock handles on the top and sides make it easy for even one person to set up and dismantle the cabinets.

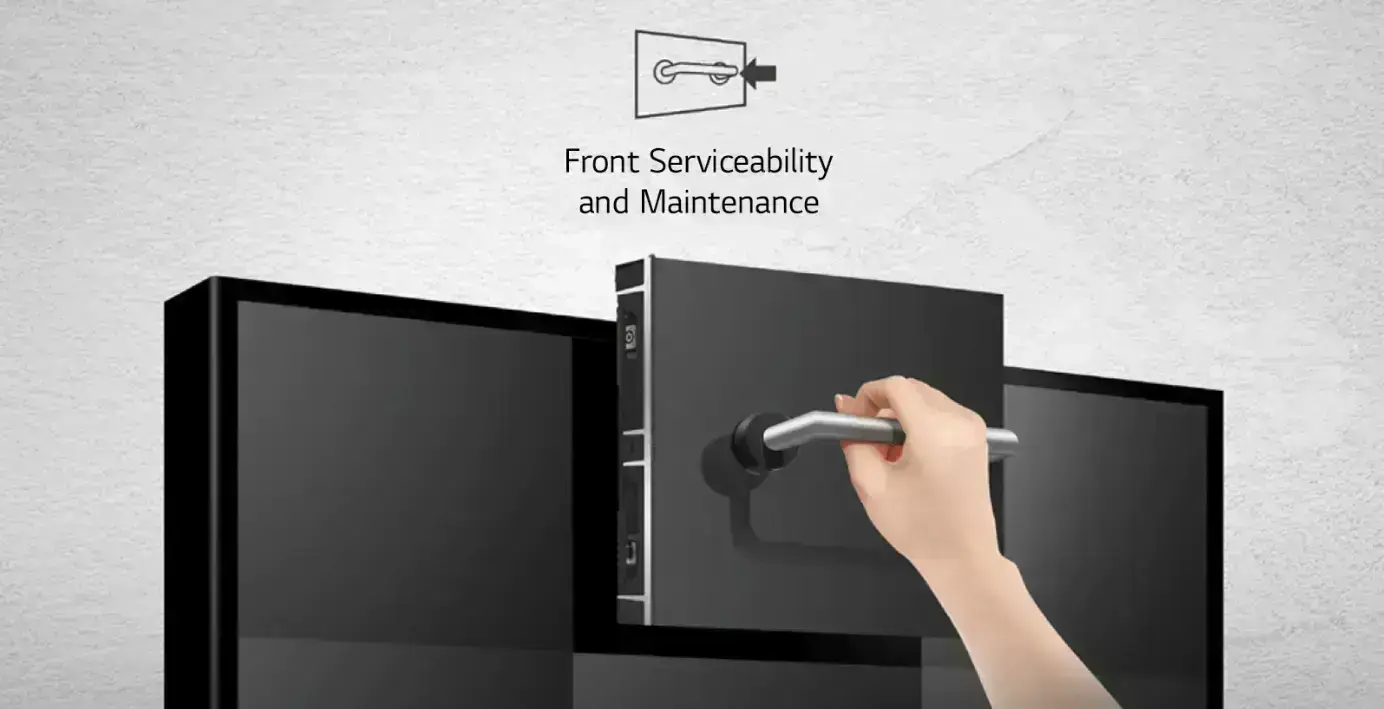

  • Front Module Removal

    With magnetic tool, LED module can be easily removed.

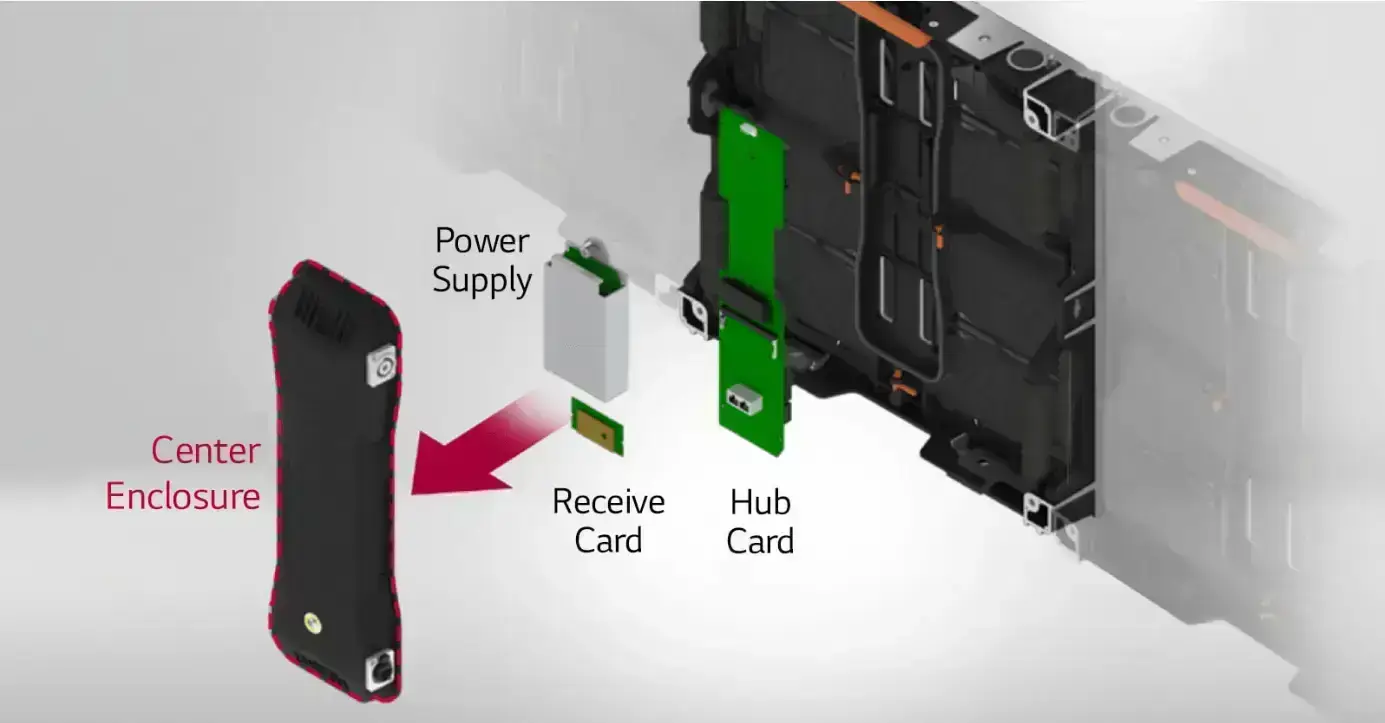

  • Easy Maintenance

    The center enclosure on the back of the product conveniently includes a power supply module, receive card, and hub card, making it easy to maintain the components.

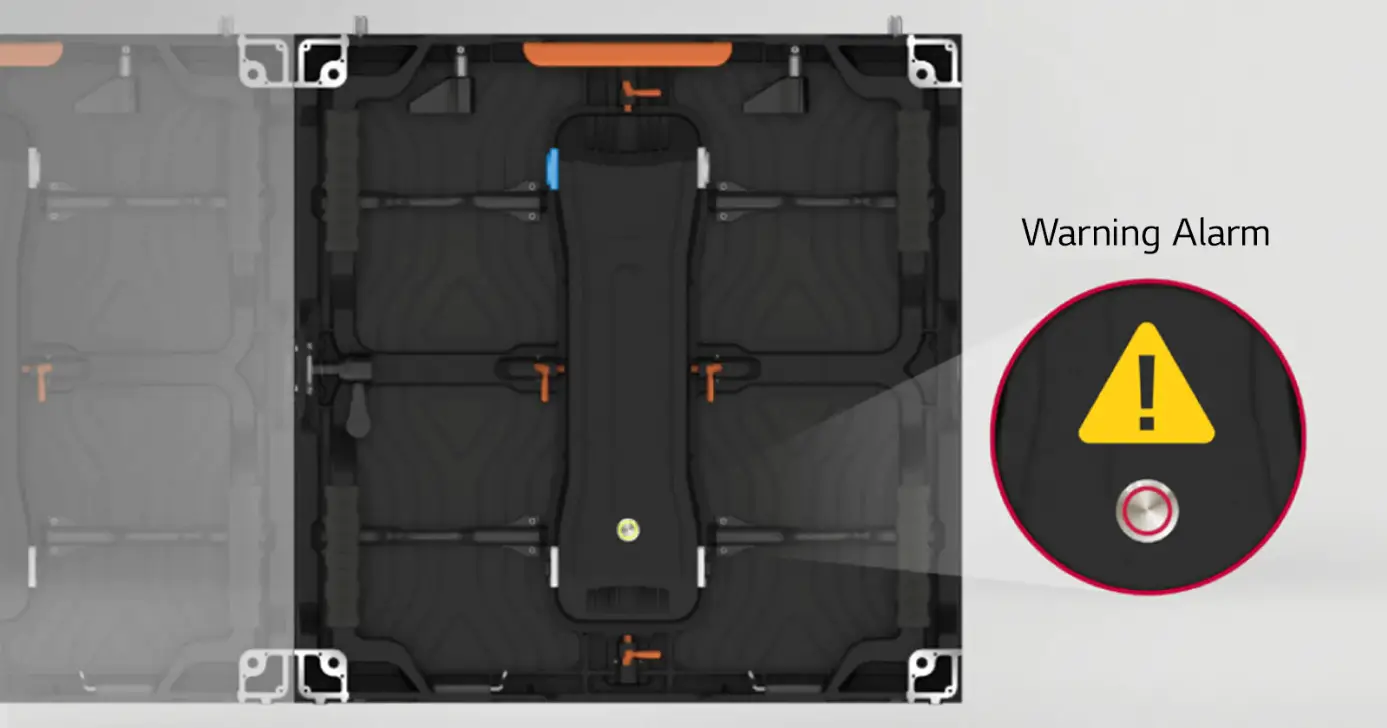

  • Simple Status Check

    You can easily check power and signal status through the status button on the outside of the cabinet (alternates between red and green). The button shows test patterns, eliminating the need to connect the source.

  • Uniform Picture Quality

    Every step from production is strictly managed, while factory calibration ensures consistent quality between the LED units. The display provides seamless content with 97% brightness uniformity.

  • Vividness with Color Accuracy

    LG’s rigorous quality standards also make LG LED signage reproduce accurate colors, vividly displaying the original colors of objects without distortion.

  • Compatibility with LG Software Solutions

    Powered by LG’s high performance system controller, the LAS-V series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and Signage365Care, which help customers operate their own business flawlessly.


PHYSICAL PARAMETER

  • Pixel Configuration
    3 in 1
    Pixel Pitch (mm)
    2.50
  • Module Resolution (W x H)
    100×100
    Module Dimensions (W x H, mm)
    250×250
  • Weight per Module (kg)
    0.54
    No. of Modules per Cabinet (W × H)
    2 × 2
  • Cabinet Resolution (W × H)
    200×200
    Cabinet Dimensions (W × H × D)
    500x500x74
  • Cabinet Surface Area (m²)
    0.250
    Weight per Cabinet (kg/cabinet)
    7.5
  • Weight per Square Meter (kg/m²)
    30.0
    Physical Pixel Density (pixels/m²)
    160,000
  • Flatness of Cabinet
    ±0.5
    Cabinet Material
    Die Casting Aluminum
  • Service Access
    Front
    * Min. 100mm needed between cabinet rear surface and back wall.

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    1,000
    Color Temperature
    3,000 – 10,000
  • Visual Viewing Angle (H×V)
    160 × 140
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    8,000
  • Processing Depth (bit)
    16

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    160
    Power Consumption (W/cabinet, Avg.)
    58
  • Power Consumption (W/m², Max.)
    640
    Power Consumption (BTU/h/cabinet, Max.)
    546
  • Power Consumption (BTU/h/cabinet, Avg.)
    198
    Power Consumption (BTU/h/m², Max.)
    2,184
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -10° to +40°
  • Operating Humidity
    10-80%RH
    IP Rating Front
    IP5X
  • IP Rating Rear
    IP5X

CONTROLLER

  • Controller
    LCLG006

CERTIFICATION

  • Certification
    CE/FCC/cTUVus/CB

ENVIRONMENT

  • Environment
    RoHS/REACH
