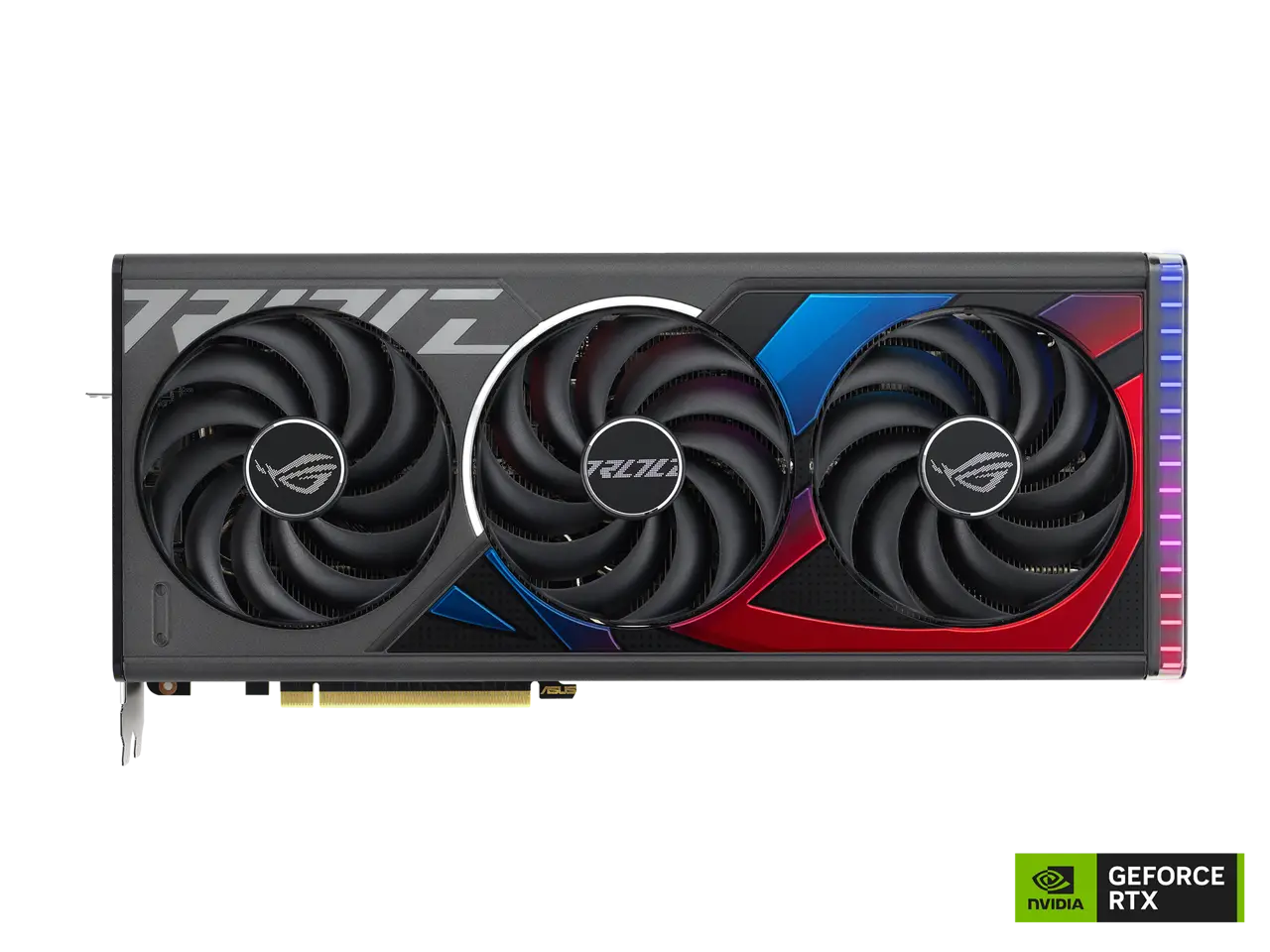

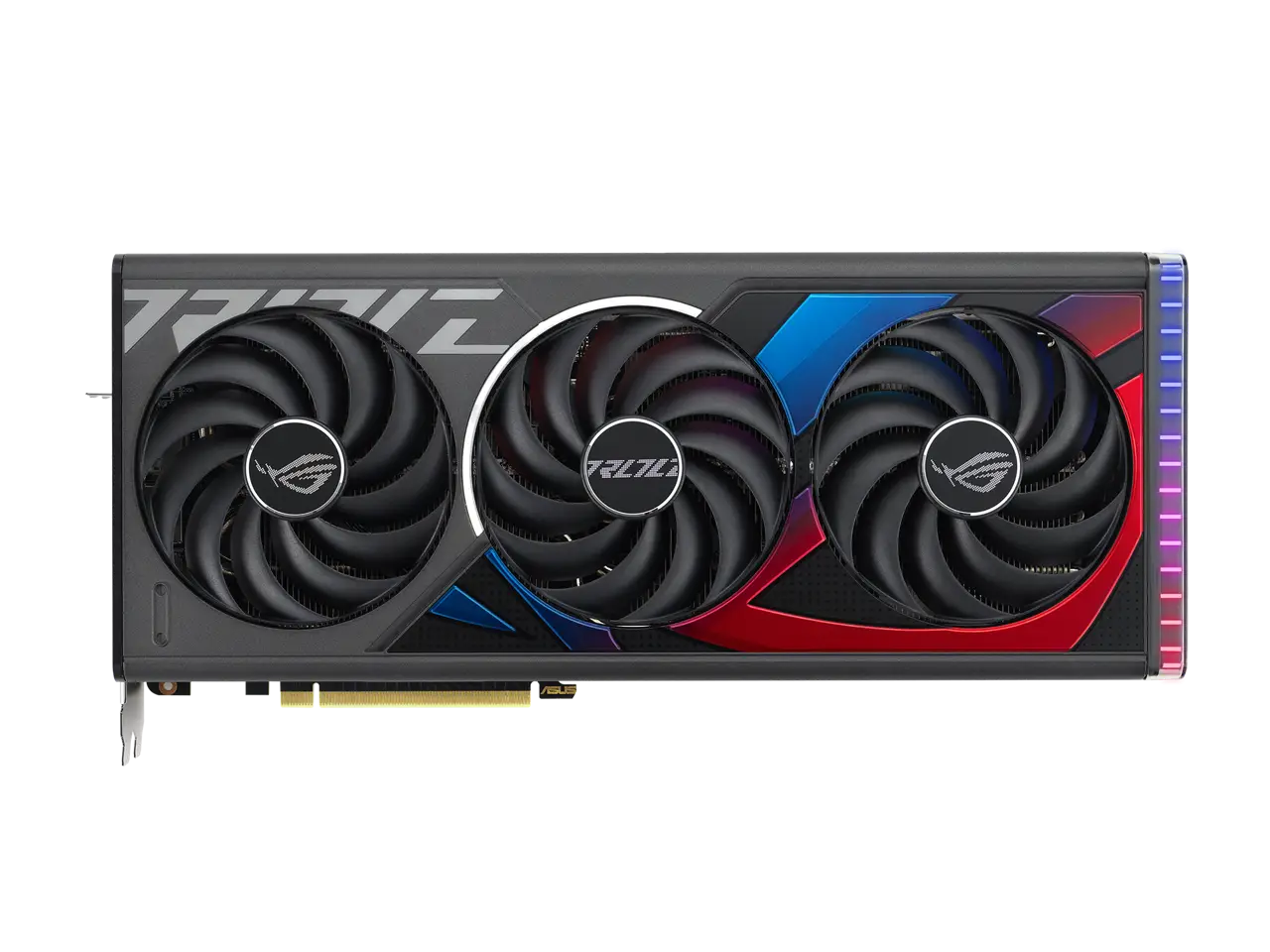

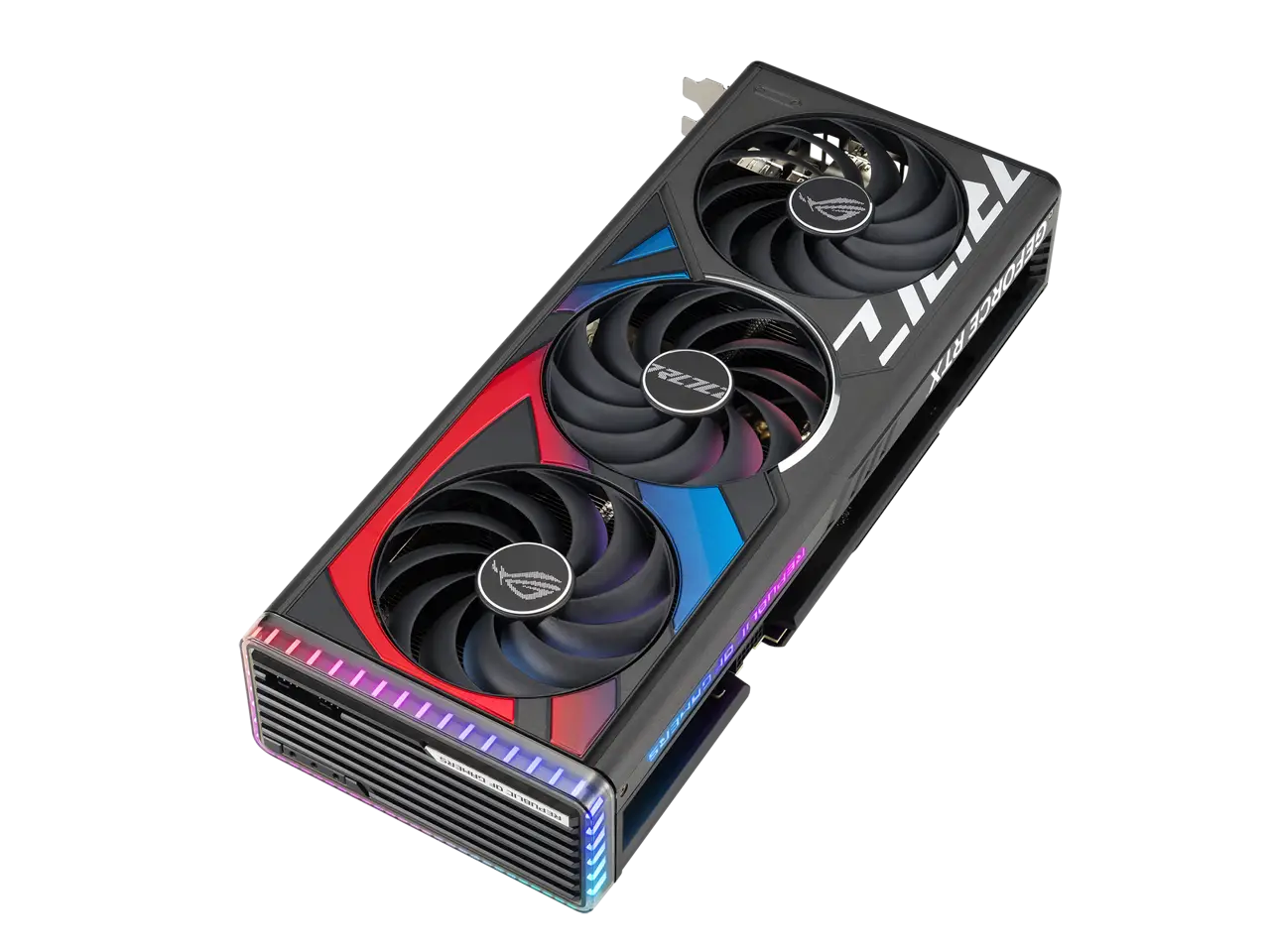

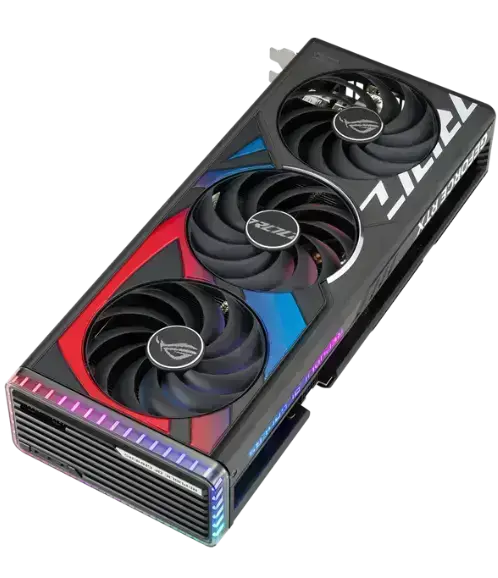

ROG Strix GeForce RTX 4070Ti 12GB GDDR6X OC Edition
ROG Strix GeForce RTX™ 4070 Ti 12GB GDDR6X OC Edition with DLSS 3 and chart-topping thermal performance.
✓Powered by NVIDIA DLSS3, ultra-efficient Ada Lovelace arch, and full ray tracing.
✓4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
✓3rd Generation RT Cores: Up to 2X ray tracing performance
✓OC mode: 2790 MHz (OC mode)/ 2760 MHz (Default mode)
✓Axial-tech fans scaled up for 31% more airflow
✓3.15-slot design: massive fin array optimized for airflow from the three Axial-tech fans
✓Diecast shroud, frame, and backplate add rigidity and are vented to further maximize airflow and heat dissipation
✓Digital power control with high-current power stages and 15K capacitors to fuel maximum performance
✓Auto-Extreme precision automated manufacturing for higher reliability
✓GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
The Ultimate Platform for Gamers and Creators
Powered by GeForce RTX 40 Series and DLSS 3
✓ New Streaming Multiprocessors
Up to 2x performance and power efficiency
✓ Fourth-Gen Tensor Cores
Up to 4x performance with DLSS 3
vs. brute-force rendering
✓ Third-Gen RT Cores
Up to 2x ray tracing performance
A Fresh Spin
Bigger and better. Axial-tech fans spin on dual-ball bearings and have been scaled up to propel 31% more air through the card, setting the stage for lower temperatures, less noise, and higher performance.
Reverse Rotation and 0dB Technology
The two side fans spin counterclockwise to minimize turbulence and maximize air dispersion through the heatsink. All three fans come to a standstill when GPU temps are below 50 Celsius, letting you play less-demanding games or perform light tasks in relative silence. Fans start up again when temps are over 55 C, referencing a speed curve that balances performance and acoustics for work or play.
Through Thick and Fin
The custom sink is generously sized and structured to soak up heat from the GeForce RTX 4070 Ti GPU so that it can be efficiently whisked away by the three Axial-tech fans.
Premium Power Delivery
igital power control, an array of high-current power stages, and a lineup of 15K caps ensure massive reserves to reliably push performance boundaries.

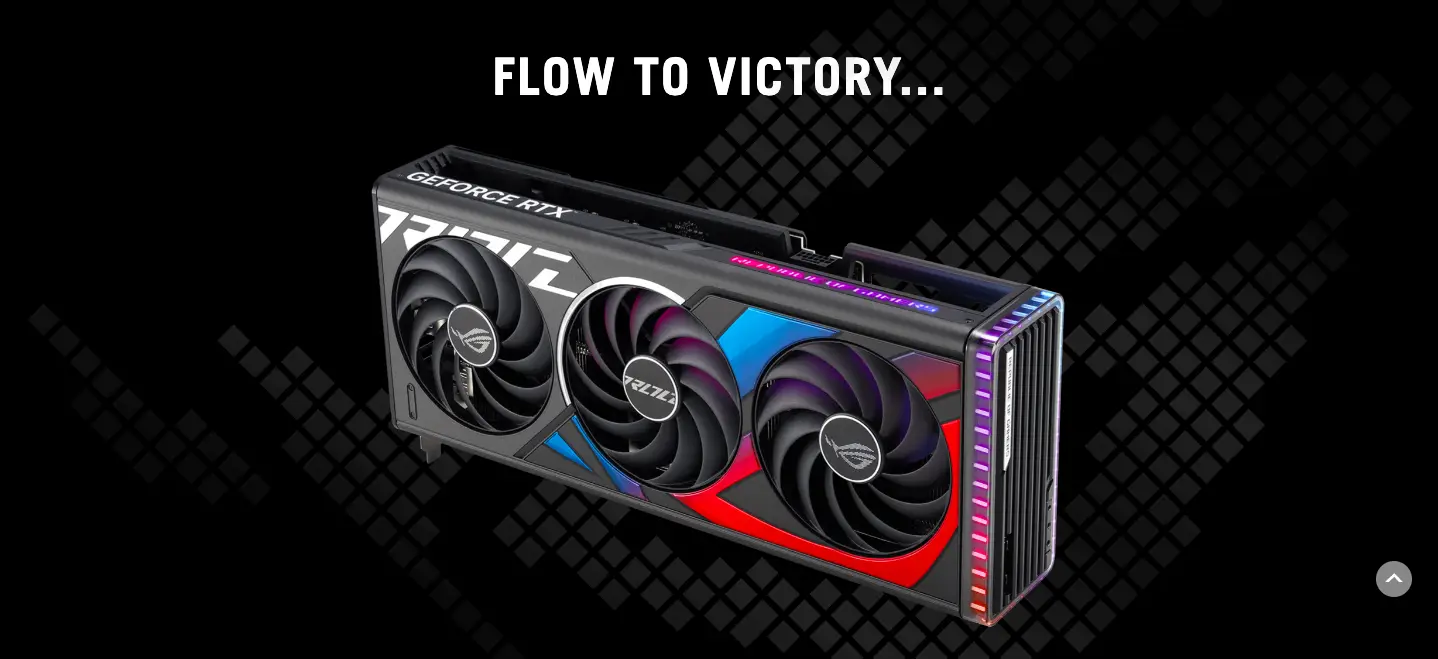

WITH THE INCREDIBLE SUM OF ITS PARTS
The ROG Strix GeForce RTX™ 4070 Ti brings a whole new meaning to going with the flow.
Inside and out, every element of the card gives the monstrous GPU headroom to breathe freely and achieve ultimate performance.
The unleashed reign of the NVIDIA Ada Lovelace architecture is here.

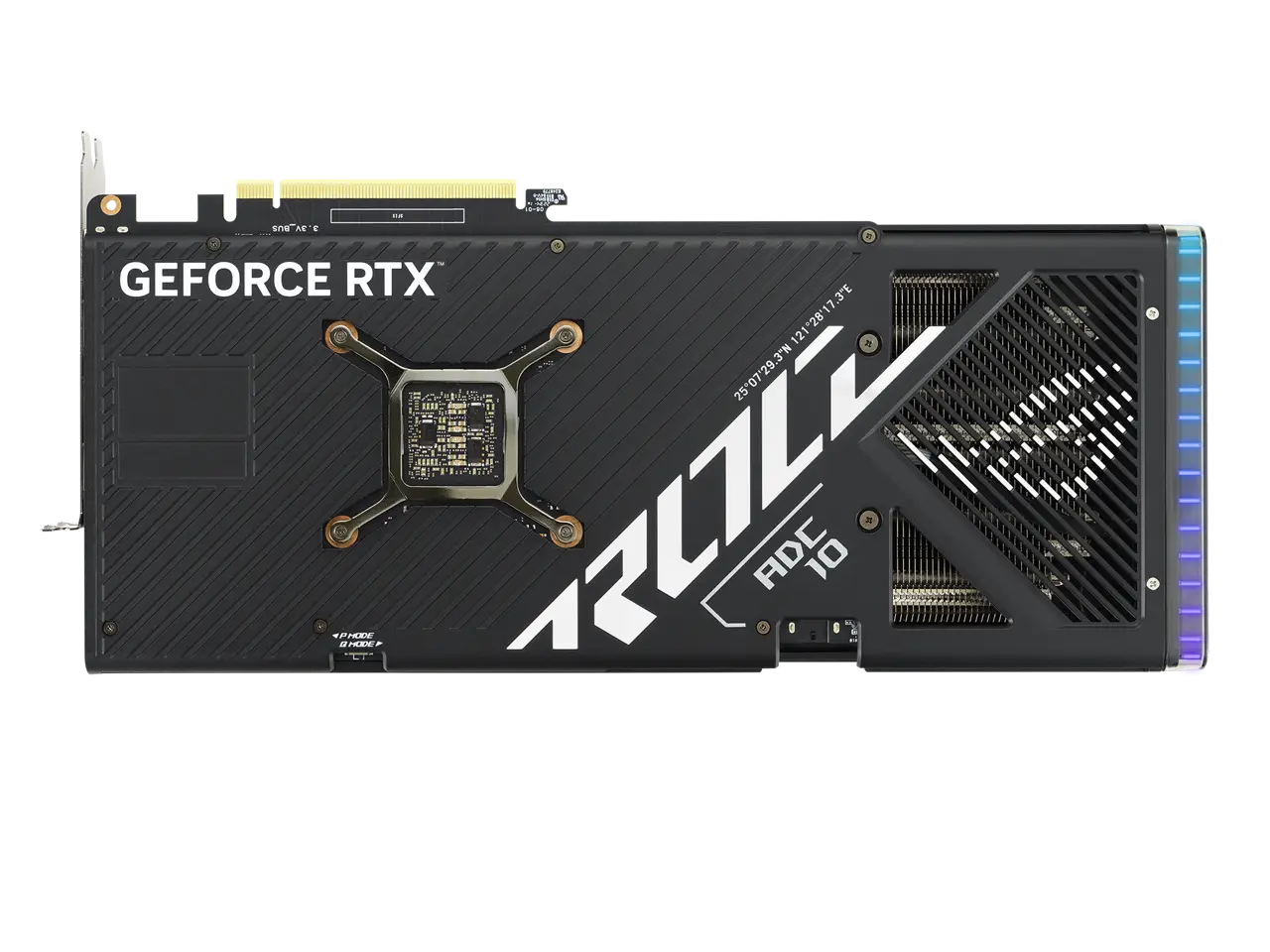

A high-quality diecast frame, shroud, and backplate tightly brace the PCB and strategically steer airflow.
Two PWM FanConnect headers provide additional DIY flexibility. Chassis fans can be directly attached to the card and tuned with a curve that is based on CPU and GPU temperatures, delivering extra intake or exhaust for demanding 3D tasks.

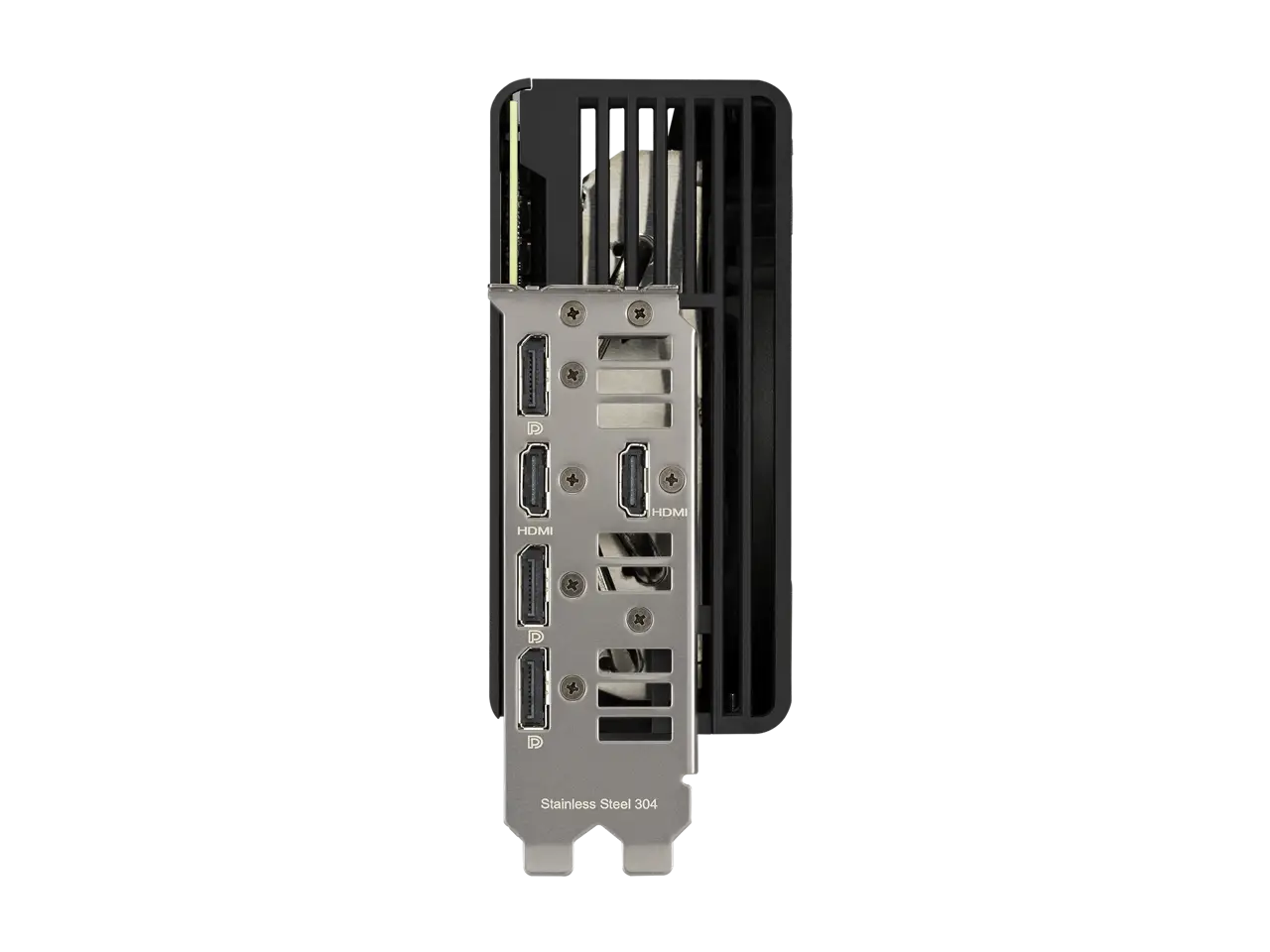

A GPU bracket provides extra stability to the critical connection between die and heat spreader. The rear I/O bracket is made from stainless steel to prevent corrosion in humid climates and provide a more resilient mount. A conveniently placed Dual Bios switch allows quick selection between “performance” and “quiet” speed profiles for the Axial-tech fans.
Know if your PSU is worthy. ROG Strix GeForce RTX 4070 Ti graphics cards feature a high-speed circuit that constantly monitors input power from the PSU and utilizes conveniently placed LEDs to indicate voltage regulation issues and cable connection problems.
For specific instructions for connecting this graphics card to your power supply unit, please see the FAQ section.
Auto-Extreme Technology is an automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption, and a more reliable product overall.
Graphics Card Holder
Pillar of Support
The bundled graphics card holder banishes sag and also contains a screwdriver to help you build.
ASUS ROG Strix NVIDIA GeForce RTX 4070 Ti OC Edition
You Save: $500
ASUS ROG Strix NVIDIA GeForce RTX 4070 Ti OC Edition Gaming Graphics Card (PCIe 4.0, 12GB GDDR6X, HDMI 2.1a, DisplayPort 1.4a) ROG-STRIX-RTX4070TI-O12G-GAMING
|Interface||PCI Express 4.0|
|GPU Series||NVIDIA GeForce RTX 40 Series|
|GPU||GeForce RTX 4070 Ti|
|Core Clock||2310 MHz|
|Boost Clock||2790 MHz|
|HDMI||2 x HDMI 2.1a|
|DisplayPort||3 x DisplayPort 1.4a|
|Max Resolution||7680 x 4320|
|Thermal Design Power||285W|
|Recommended PSU Wattage||750W|
|Power Connector||1 x 16-Pin|
|Max GPU Length||336mm|
|Slot Width||3.15 Slot|
