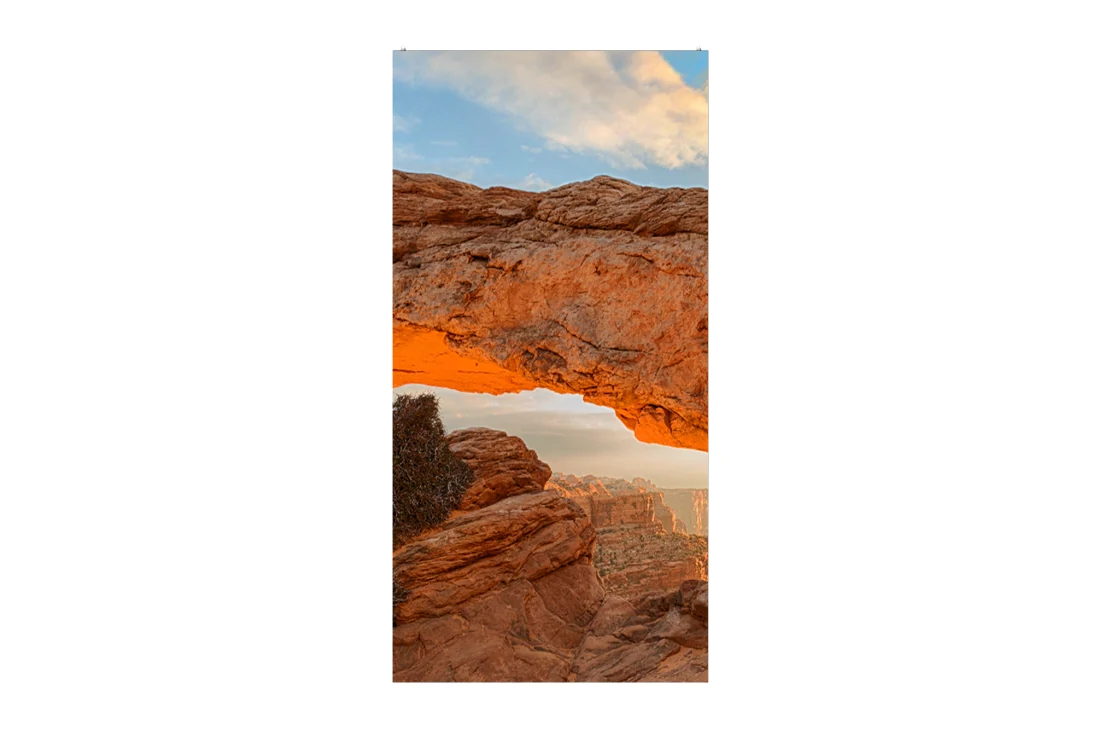

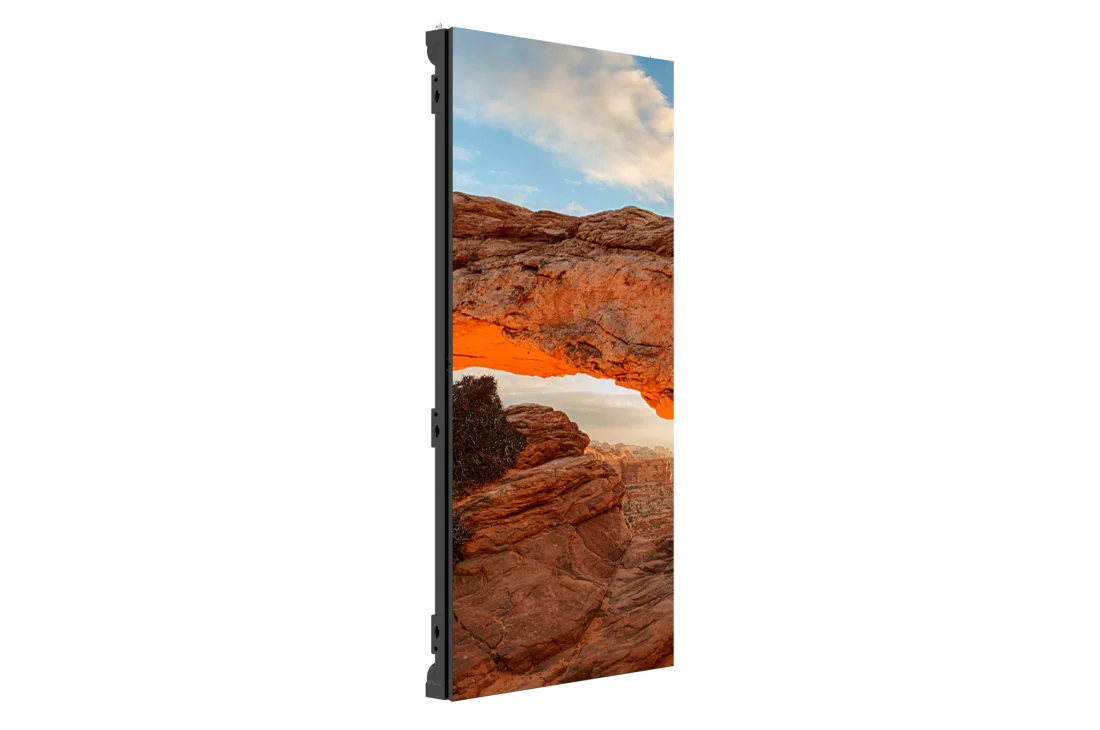

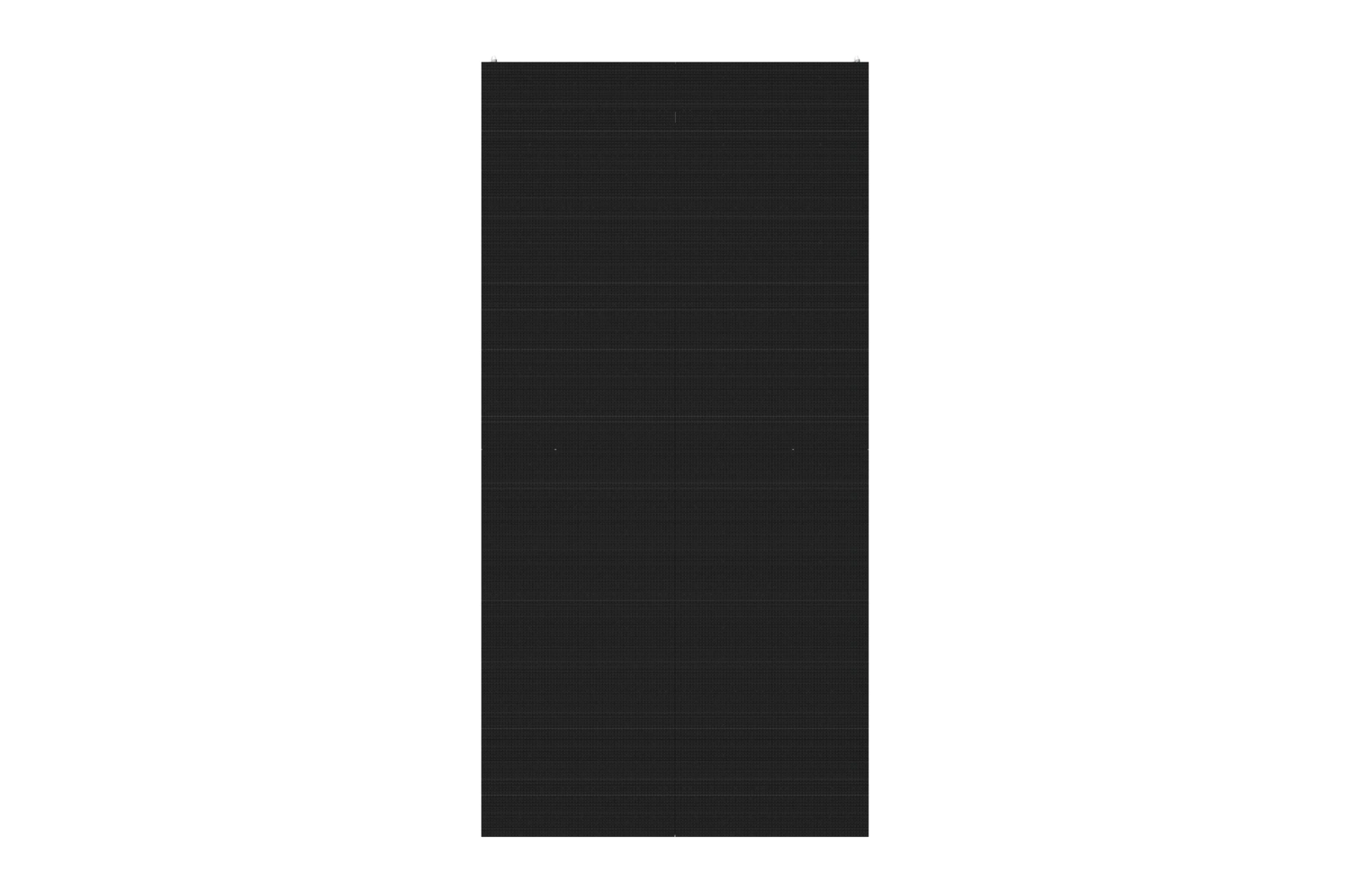

Versatile Series-GSCA039

  • Pixel Pitch: 3.91mm
  • Brightness: 5,000 cd/m²
  • Fast Assembly and Easy Maintenance
  • Two Cabinet Options
  • IP65 Weatherproof Design
  • 90º Corner Option Available

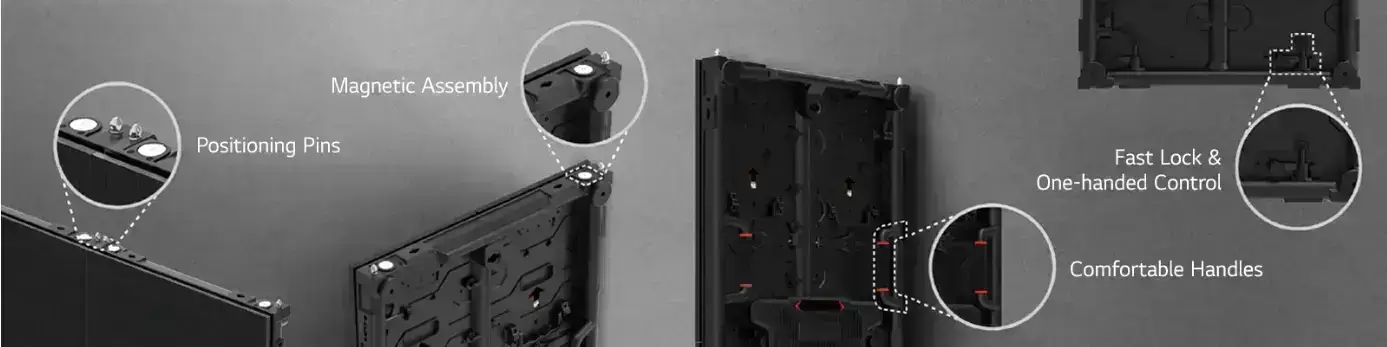

  • Fast Installation

    Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.

  • img

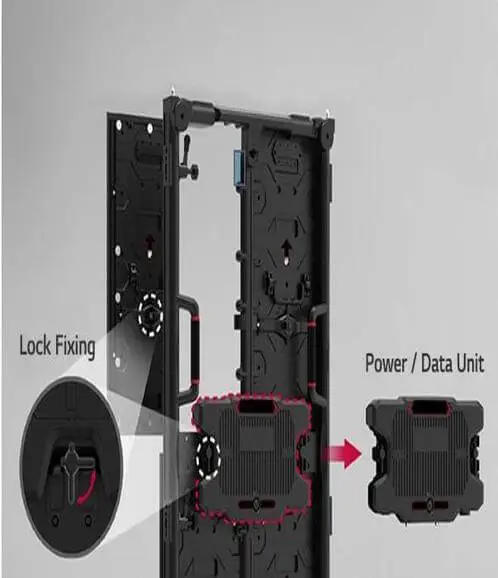

    Easy Maintenance

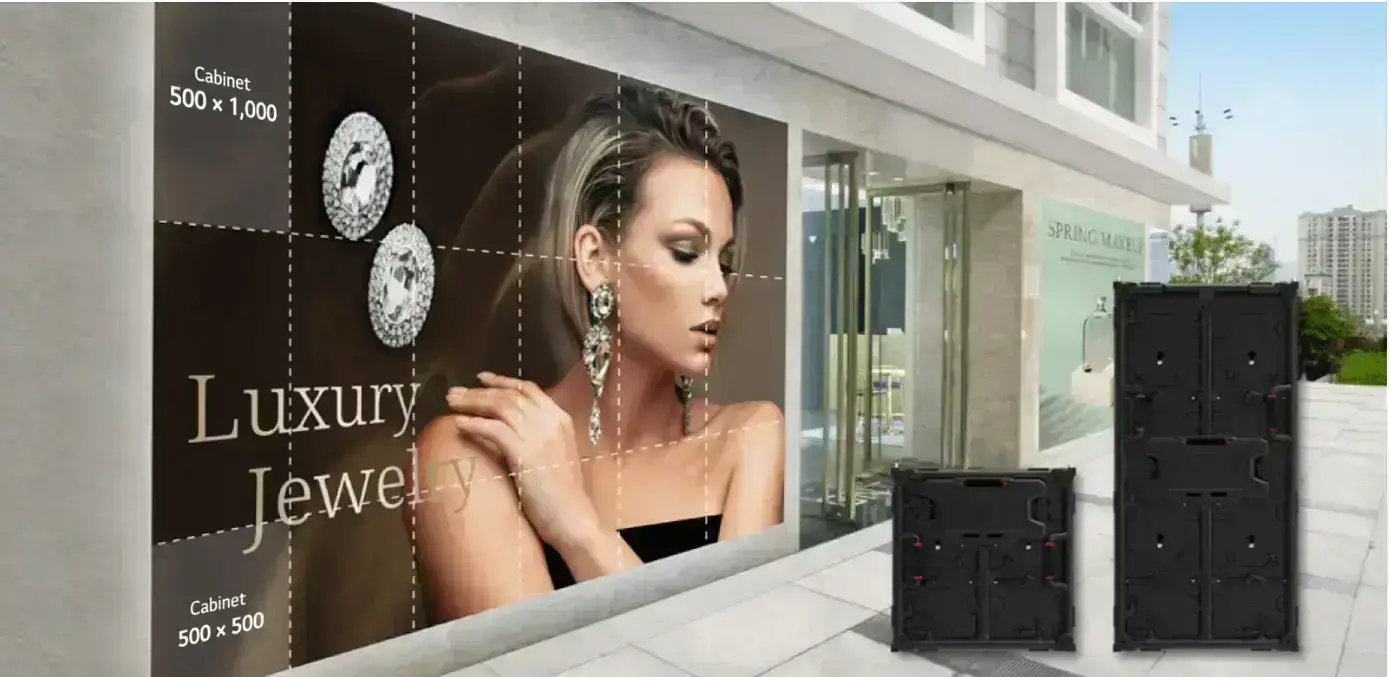

  • Two Cabinet Options

    The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer's demands.

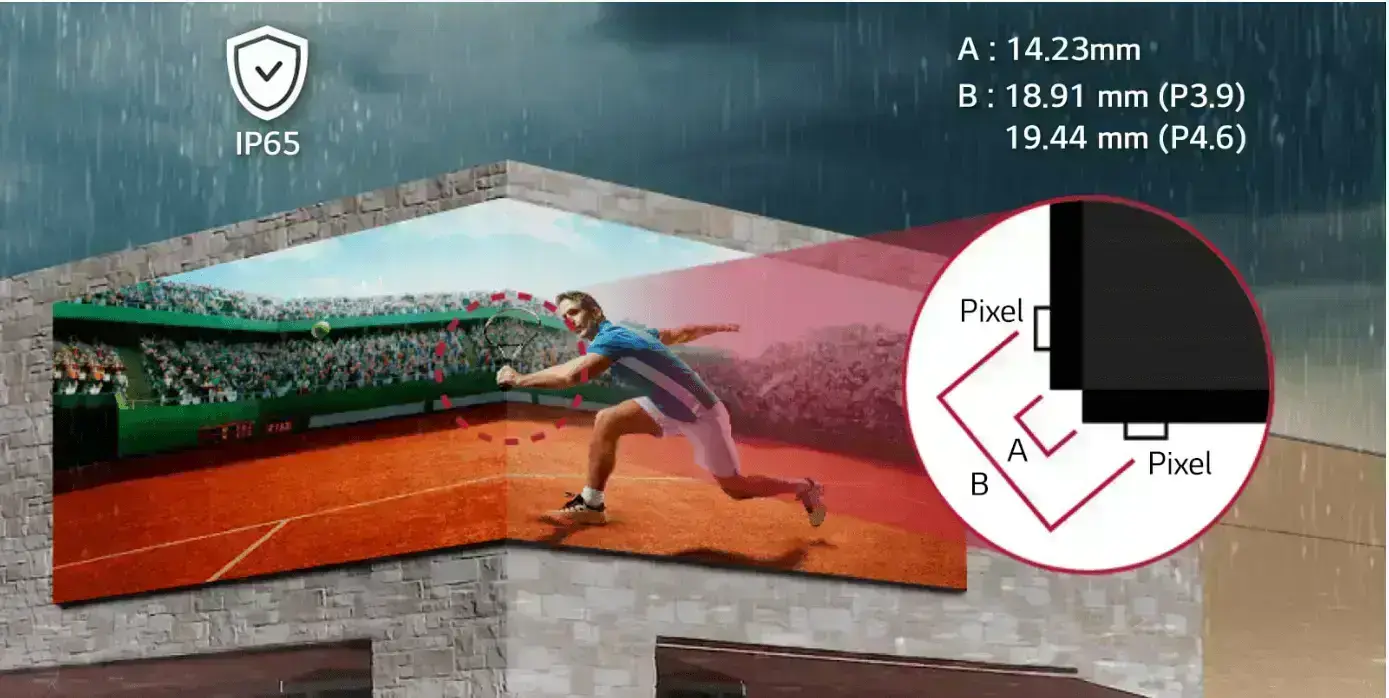

  • IP Rated Weatherproof & 90° Corner Design

    The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option, the GSCA series can deliver flawless content even when installed on the corners.

  • img

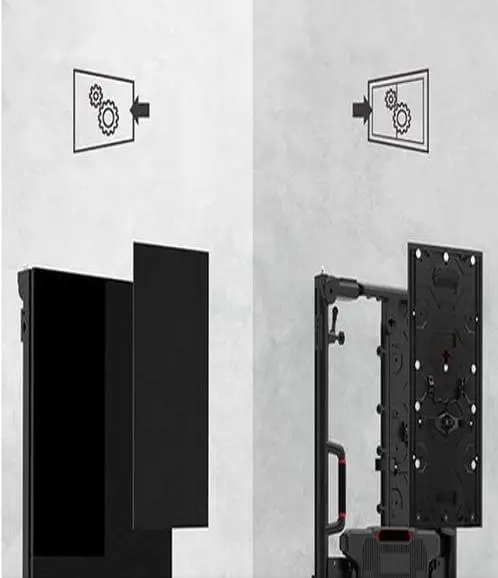

    Front or Rear Serviceability



PHYSICAL PARAMETER

  • Pixel Configuration
    3 in 1 SMD
    Pixel Pitch (mm)
    3.91
  • Module Resolution (W x H)
    64 × 128
    Module Dimensions (W x H, mm)
    250 × 500
  • Weight per Module (kg)
    1.40
    No. of Modules per Cabinet (W × H)
    2 × 2 / 2 × 1 (Half-sized)
  • Cabinet Resolution (W × H)
    128 × 256 / 128 × 128 (Half-sized)
    Cabinet Dimensions (W x H x D, mm)
    500 × 1,000 × 66.05
    500 × 500 × 66.05 (Half-sized)
  • Cabinet Surface Area (m²)
    0.500 / 0.250 (Half-sized)
    Weight per Cabinet (kg/cabinet)
    12.5 / 7.9 (Half-sized)
  • Weight per Square Meter (kg/m²)
    24.9 / 31.7 (Half-sized)
    Physical Pixel Density (pixels/m²)
    65,536
  • Flatness of Cabinet
    ± 0.3 mm
    Cabinet Material
    Die-casting Magnesium
  • Service Access
    Front or Rear (One Option Only)

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    5,000
    Color Temperature
    3,500 ~ 9,000
  • Visual Viewing Angle (Horizontal/Vertical)
    160 / 155
    Brightness Uniformity
    97%
  • Color Uniformity
    ± 0.003 Cx,Cy
    Contrast Ratio
    6,000
  • Processing Depth (bit)
    14

ELECTRICAL PARAMETER

  • Power Consumption (W/cabinet, Max.)
    300 / 150 (Half-sized)
    Power Consumption (W/cabinet, Avg.)
    100 / 50 (Half-sized)
  • Power Consumption (W/m², Max.)
    600
    Power Consumption (BTU/h/cabinet, Max.)
    1024 / 512 (Half-sized)
  • Power Consumption (BTU/h/cabinet, Avg.)
    341 / 171 (Half-sized)
    Power Consumption (BTU/h/m², Max.)
    2047
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    -20℃ to +45℃
  • Operating Humidity
    10-99%RH
    IP Rating Front
    IP65
  • IP Rating Rear
    IP65

CERTIFICATION

  • Certification
    CE,FCC,ETL

ENVIRONMENT

  • Environment
    RoHS

CONTROLLER

  • Controller
    LCIN006

Download

  • Dimension
    28 Jan 2021 484 KB
  • Datasheet
    28 Jan 2021 1 MB
