LAPE Series

  • Pixel Pitch: 1.5mm
  • Brightness: 700 cd/m²
  • Curvature(Concave/convex): Up to 1,000R
  • High performance system controller
  • Front and rear serviceability
  • img

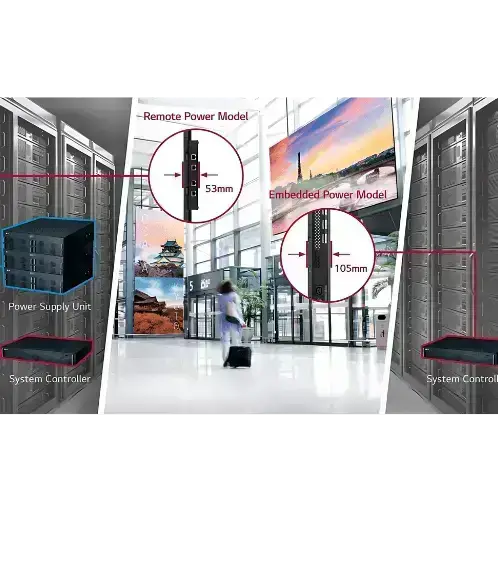

  • SELECTABLE TWO PRODUCT TYPES

  • img

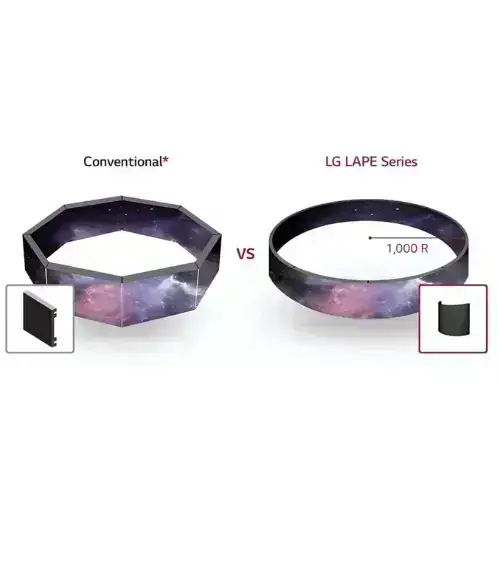

    FLEXIBLE LDM

    With a specially designed flexible LDM(LED Display Module), the LAPE series supports true concave and convex curvature up to 1,000R. This greatly amplifies design flexibility, providing users with the ability to create true curved screens.

  • REALISM THROUGH LIFELIKE COLORS

  • DETAILED EXPRESSION OF COLOR DEPTH

  • SMOOTH PLAYBACK IN DYNAMIC MOTION

  • POWER/SIGNAL REDUNDANCY SUPPORT

  • PRECISE FHD/UHD SCEEN CONFIGURATION

  • SMART HIGH PERFORMANCE SYSTEM CONTROLLER

  • INTUITIVE MANAGEMENT SOFTWARE

  • REAL-TIME 365 CARE SERVICE

  • EASY TO HANDLE & INSTALL

  • img

    HIGH PERFORMANCE SoC with webOS

  • img

    EASY SCREEN ALIGNMENT

  • img

    FRONT INSTALLATION & SERVICE



PHYSICAL PARAMETERS

  • Pitch Name
    P1.5
    Pixel Configuration
    3 in 1 SMD
  • Pixel Pitch (mm)
    1.50
    Module Resolution (W x H)
    160 x 120
  • Module Dimensions (W x H, mm)
    240 x 180
    Weight per Module (kg)
    0.36
  • No. of Modules per Unit Case (W x H)
    2 x 3
    Unit Case Resolution (W x H)
    320 x 360
  • Unit Case Dimensions (W x H x D, mm)
    480 x 540 x 105
    Unit Case Surface Area (m²)
    0.259
  • Weight per Unit Case (kg/unit)
    10.1
    Weight per Square Meter (kg/m²)
    38.4
  • Physical Pixel Density (pixels/m²)
    444,444
    Flatness of Unit Case (mm)
    ±0.2
  • Unit Case Material
    Die Casting Aluminum
    Service Access
    Front1) and Rear
    1) Min. 400mm of space should be required between the cabinet rear and the wall.

OPTICAL PARAMETER

  • Min. Brightness (After Calibration)
    700 cd/m²
    Color Temperature
    3,200 ~ 9,300
  • Visual Viewing Angle (Horizontal)
    160
    Visual Viewing Angle (Vertical)
    140
  • Brightness Uniformity
    95%
    Color Uniformity
    ±0.015Cx, Cy
  • Contrast Ratio
    6,000
    Processing Depth (bit)
    16 (HDR10)

ELECTRICAL PARAMETER

  • Power Consumption (W/Unit, Max.)
    200
    Power Consumption (W/Unit, Avg.)
    67
  • Power Consumption (W/m², Max.)
    770
    Power Consumption (BTU/h/cabinet, Max.)
    682
  • Power Consumption (BTU/h/cabinet, Avg.)
    228
    Power Consumption (BTU/h/m², Max.)
    2,626
  • Power Supply (V)
    100 to 240
    Frame Rate (Hz)
    50 / 60
  • Refresh Rate (Hz)
    3,840

OPERATION CONDITIONS

  • Lifetime (Hours to Half Brightness)
    100,000
    Operating Temperature (°C)
    0°C to + 40°C
  • Operating Humidity
    10-80% RH

CERTIFICATION

  • EMC
    FCC Class A / CE / KC
    Environment
    RoHS

CONTROLLER

  • Controller
    LCLG005-D

CONNECTIVITY

  • Video Inputs
    HDMI In, DP In, OPS In, USB
    Control
    RJ45 In, RS232C In/out
  • Special Features
    HDR10, Temperature Sensor, Power Detection
