CDU
Modular Hydro Cooling Mining Solution
200kW Sufficient Cooling Capacity.
- Meet the heat dissipation demand of hydro cooling mining system.
Compatible with Whatsminer/Antminer Rack System.
- 42U modular rack system design
Designed for Bitcoin Mining Heat Recovery.

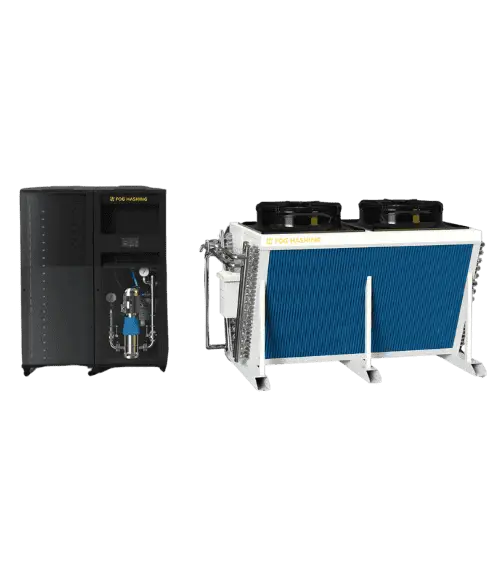

- Solution designed according to heating needs, optional dry cooler or cooling tower.
-
Safety Assurance and Easy Maintenance

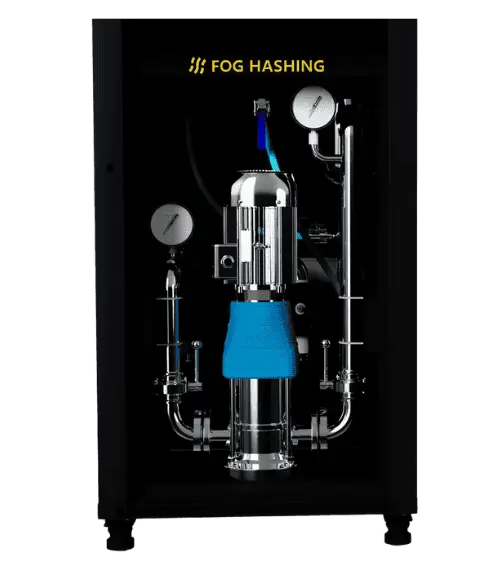

The utilization of high-quality stainless steel pipelines and liquid safety detection ensures the system's safety.
The unique single-circuit design simplifies both the installation and maintenance processes.
Enjoy a one-year warranty and comprehensive after-sales service.
-
Advanced Control and Multi-Sensor Monitoring

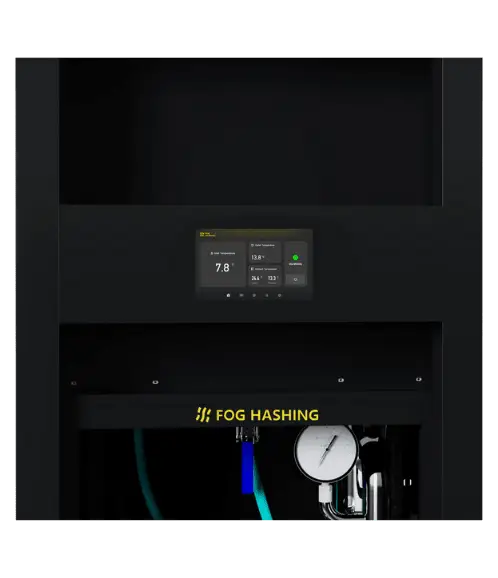

Features a 7 inches HMI display and PLC for digital display and automatic control, along with integrated flow, pressure, temperature, conductivity, and leakage sensors to comprehensively monitor system status.
-
Outstanding Heat Dissipation and Heat Recovery Design
Maintains optimal temperature during high-power operation and achieves a high outlet temperature of up to 80°C for efficient heat recovery.

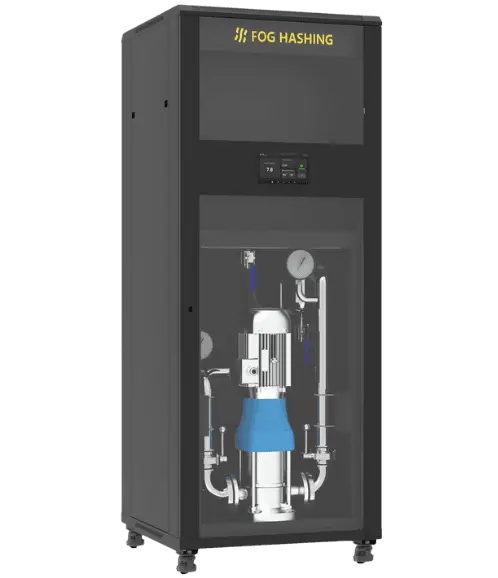

FogHashing H200 Hydro Cooling System Scalable for Warehouses
$4,989.40 – $10,627.50
200KW Cooling Capacity
✓ H200- S Support up to 36 Antminer S21/S19 Hydro
✓ H200-M Support 20 Whatsminer M63s.
Multiple Sensor Monitor
✓ Contain flow, pressure, temperature, conductivity, and oil-leakage sensors.
10″ HMI Display & PLC
✓ Digital display and automatic flow/temperature/electrical control.
High Outlet Temperature
✓ Up to 80° C outlet temperature, designed for heat reuse.
High Quality Material
✓ Stainless steel pipes, valves, filters, etc.
Easy to Install & Maintain
✓ Hydro quick connector design, easy to remove and replace.
Rack |
H200-S |
H200-M |
Size | 1550mm(W)*2200mm(H)*400mm(D) | 800mm(W)*2100mm(H)*1000mm(D) |
System Power Load (MAX) | 226kW | 210kW |
Miner Capacity | 36 S21/S19 Hydro | 20 Whatsminer M63s |
Input Voltage | 3-Phase 380V-415V, 50/60Hz | 3-Phase 380V-480V,50/60Hz |
PDU | PDC/PDU | 20 Port SA2-30 Smart PDU |
Network | 1000M Network Switch*2 | 1000M Network Switch |
Operation Temperature | -25 ~ 35℃ | -25℃~45℃ |
Operating Humidity | 5%~95%RH | 5%~95%RH |
Water Manifold | Stainless Steel | Stainless Steel |
Hose | PE/PTFE Hose + Quick Connects | PE/PTFE Hose + Quick Connects |
H200 CDU | |
Size | 800mm(W)*2100mm(H)*1000mm(D) |
Cooling Capacity | 200kW |
Power | 3.5kW |
Input Voltage | 3-Phase 380V-480V, 50/60Hz |
Cooling Medium | Pure water/Soften water+Antifreeze+Corrosion Inhibitor |
Inlet/Outlet | 10°C (Normal) 14°C (High Performance) |
Rated Flow Rate | 20m³/h |
Operating Temperature | -25℃~45℃ |
Operating Humidity | 5%~95%RH |
PLC System | Constant flow control with pressure regulation |
Communication Method | Modbus-RTU,TCP/IP |
Design Pressure | 0.3MPa |
