✓ Product: NVIDIA L40S
✓ Architecture: NVIDIA Ada Lovelace Architecture
✓ Process Size: 4nm NVIDIA Custom Process | TSMC
✓ Transistors: 76.3 Billion
✓ Die Size: 608.44 mm2
✓ CUDA Cores: 18176
✓ Tensor Cores: 568 | Gen 4
✓ RT Cores: 142 | Gen 3
✓ GPU Memory: 48 GB GDDR6 ECC
✓ Memory Interface: 384-bit
✓ Memory Bandwidth: 864 GB/s
✓ Display Connectors: 4x DP 1.4a
✓ Maximum Digital Resolution:
Ships in 2 weeks from payment. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

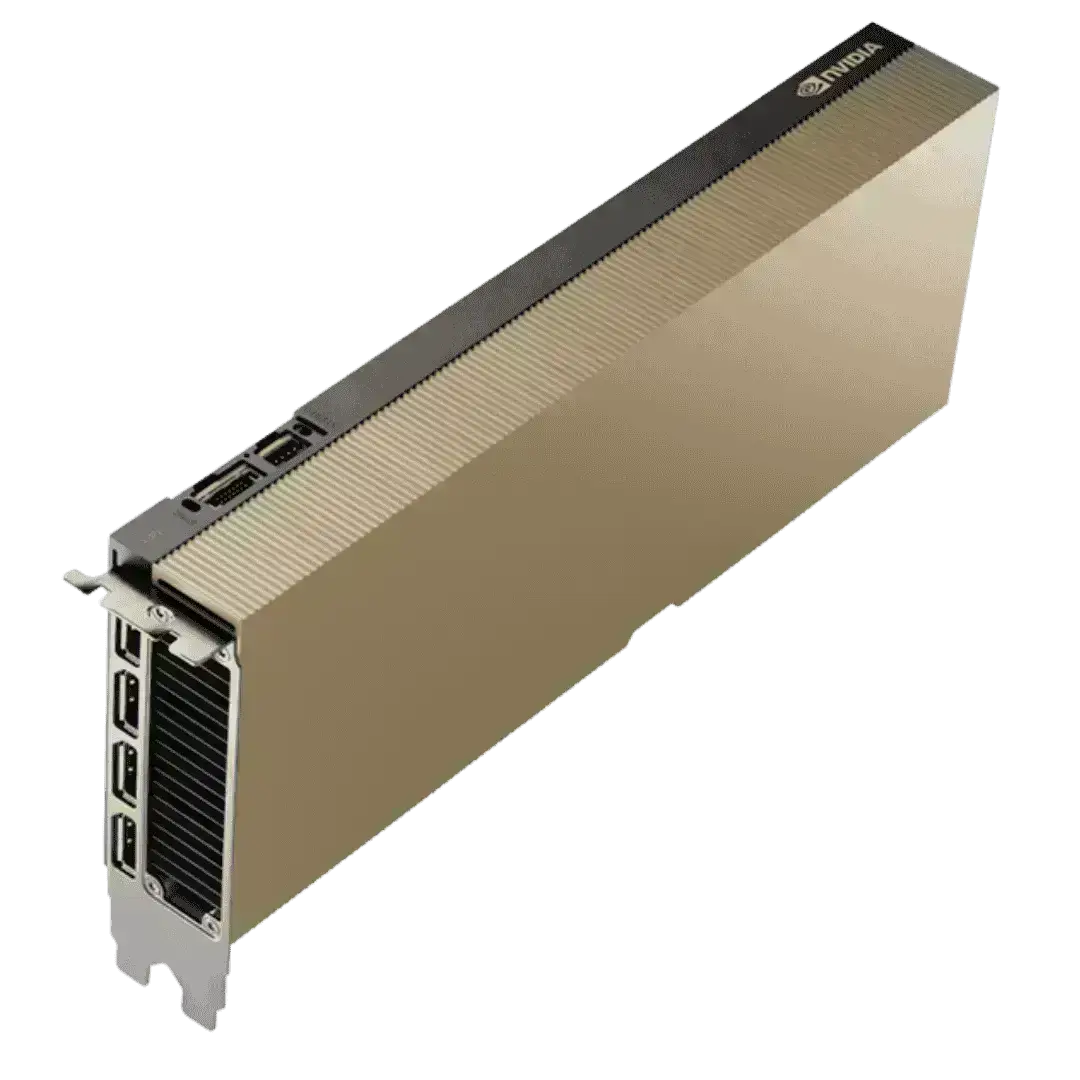

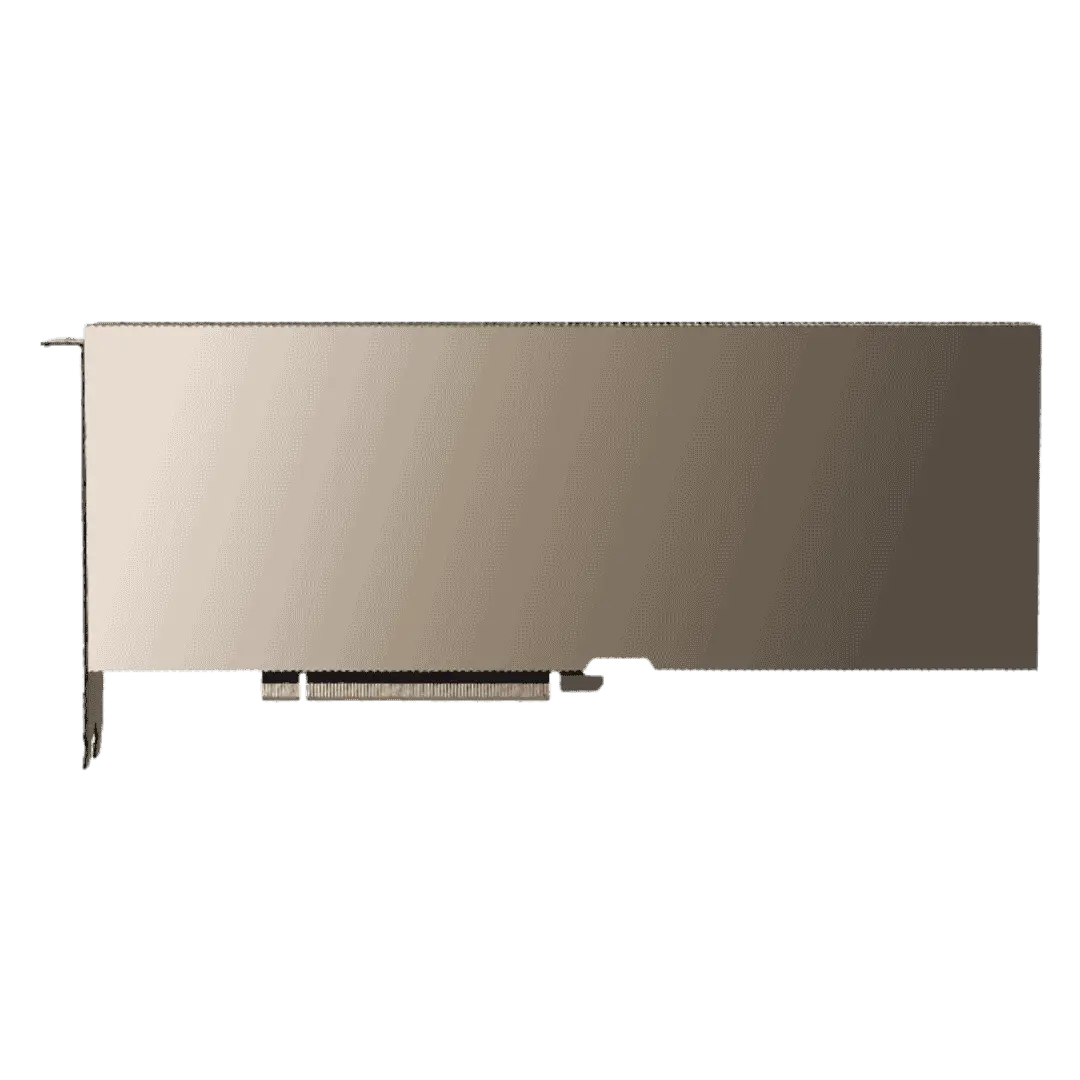

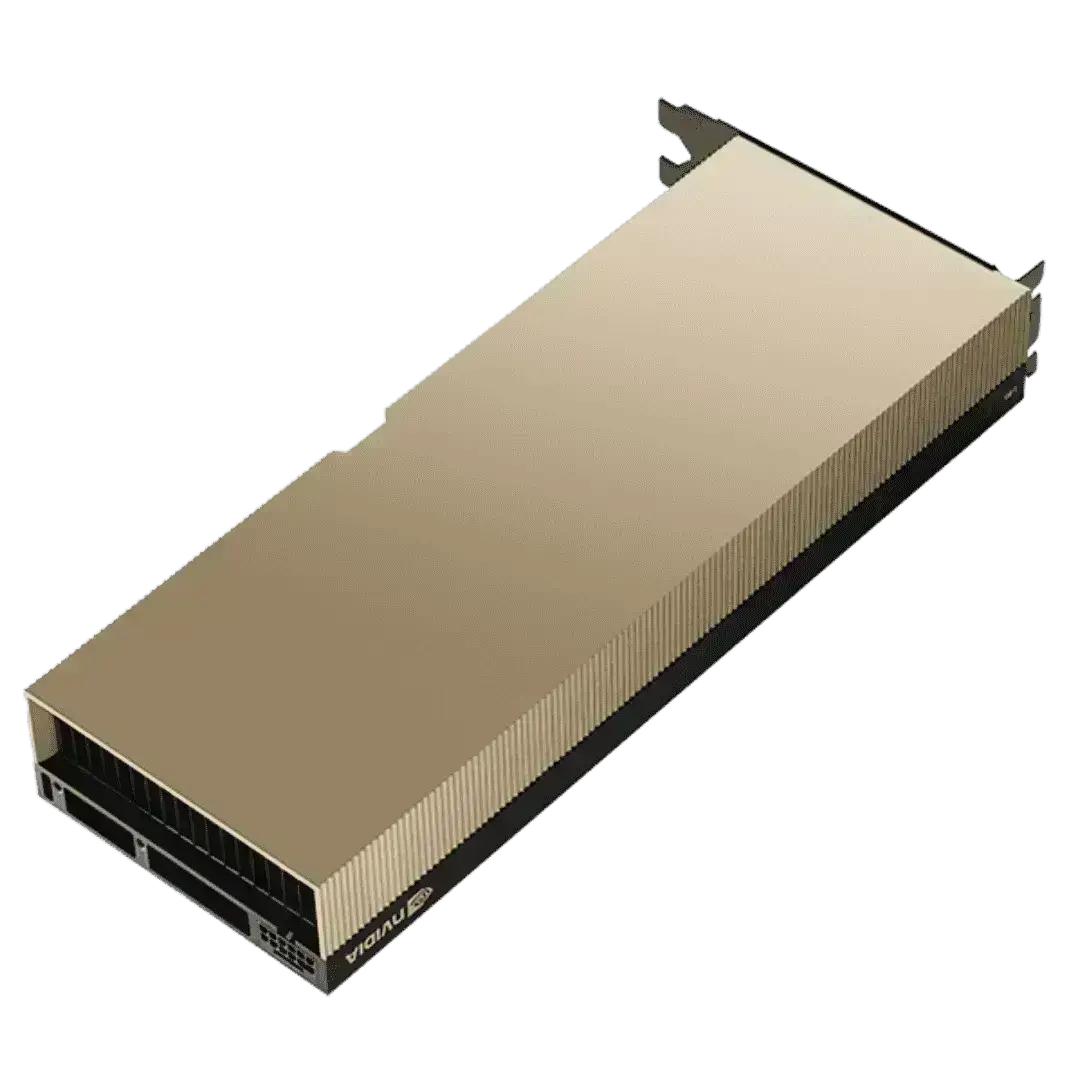

The NVIDIA L40, powered by the state-of-the-art Ada Lovelace Architecture, is a game-changer in terms of performance. With its groundbreaking features and cutting-edge technology, the L40 sets a new standard for GPU capabilities. Built on a 4nm NVIDIA Custom Process with a staggering 76.3 billion transistors, this GPU delivers unparalleled performance and efficiency. Whether you're a professional designer working with complex 3D models or an avid gamer seeking the ultimate gaming experience, the L40's power will amaze and delight.
Product | NVIDIA L40S |
|---|---|
Architecture | NVIDIA Ada Lovelace Architecture |
Process Size | 4nm NVIDIA Custom Process | TSMC |
Transistors | 76.3 Billion |
Die Size | 608.44 mm2 |
CUDA Cores | 18176 |
Tensor Cores | 568 | Gen 4 |
RT Cores | 142 | Gen 3 |
GPU Memory | 48 GB GDDR6 ECC |
Memory Interface | 384-bit |
Memory Bandwidth | 864 GB/s |
Display Connectors | 4x DP 1.4a |
Maximum Digital Resolution | 4x 5K at 60 Hz | 2x 8K at 60 Hz 4x 4K at 120 Hz | 30-bit Color |
Form Factor | 4.4″ H x 10.5″ L | Dual Slot |
Thermal Solution | Passive |
Maximum Power Consumption | 300 W |
vGPU Software Support | NVIDIA vApps, vPC, vWS | Early 2023 |
vGPU Profiles Supported | 1 GB, 2 GB, 3 GB, 4 GB, 6 GB, 8 GB, 12 GB, 16 GB, 24 GB, 48 GB |
Graphics APIs | DirectX 12 Ultimate, Shader Model 6.6, OpenGL 4.6, Vulkan 1.3 |
NVENC | NVDEC | 3x ENC | 3x DEC | Includes AV1 Encode and Decode |
Compute APIs | CUDA 12.0, DirectCompute, OpenCL 3.0 |
NVIDIA 3D Vision and 3D Vision Pro | Support via Optional 3-pin mini-DIN Bracket |
Frame Lock | Supported with optional NVIDIA Quadro Sync II |
Power Connector | 1x PCIe CEM5 16-pin |
NEBS Ready | Level 3 |
Secure Boot with Root of Trust | Supported |
