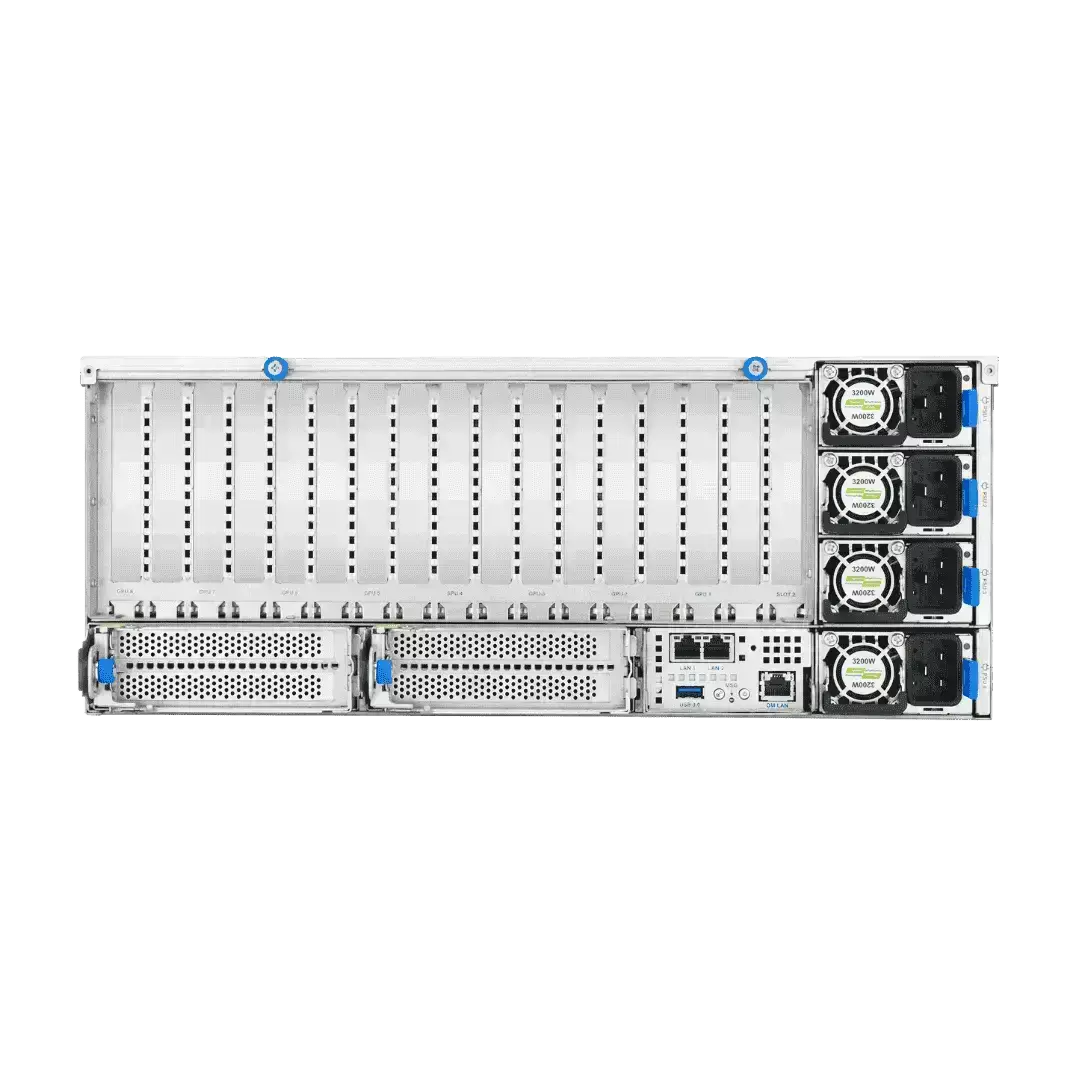

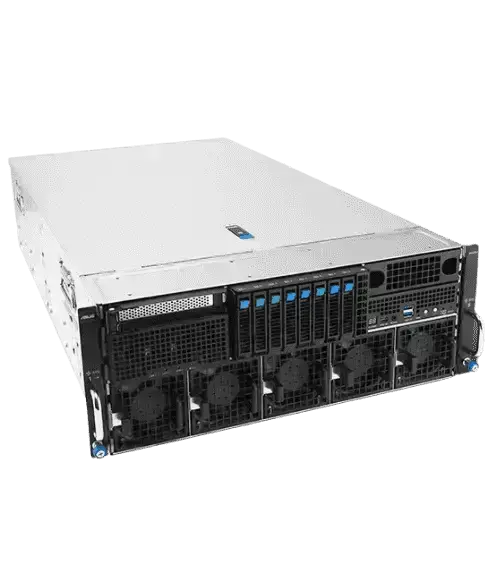

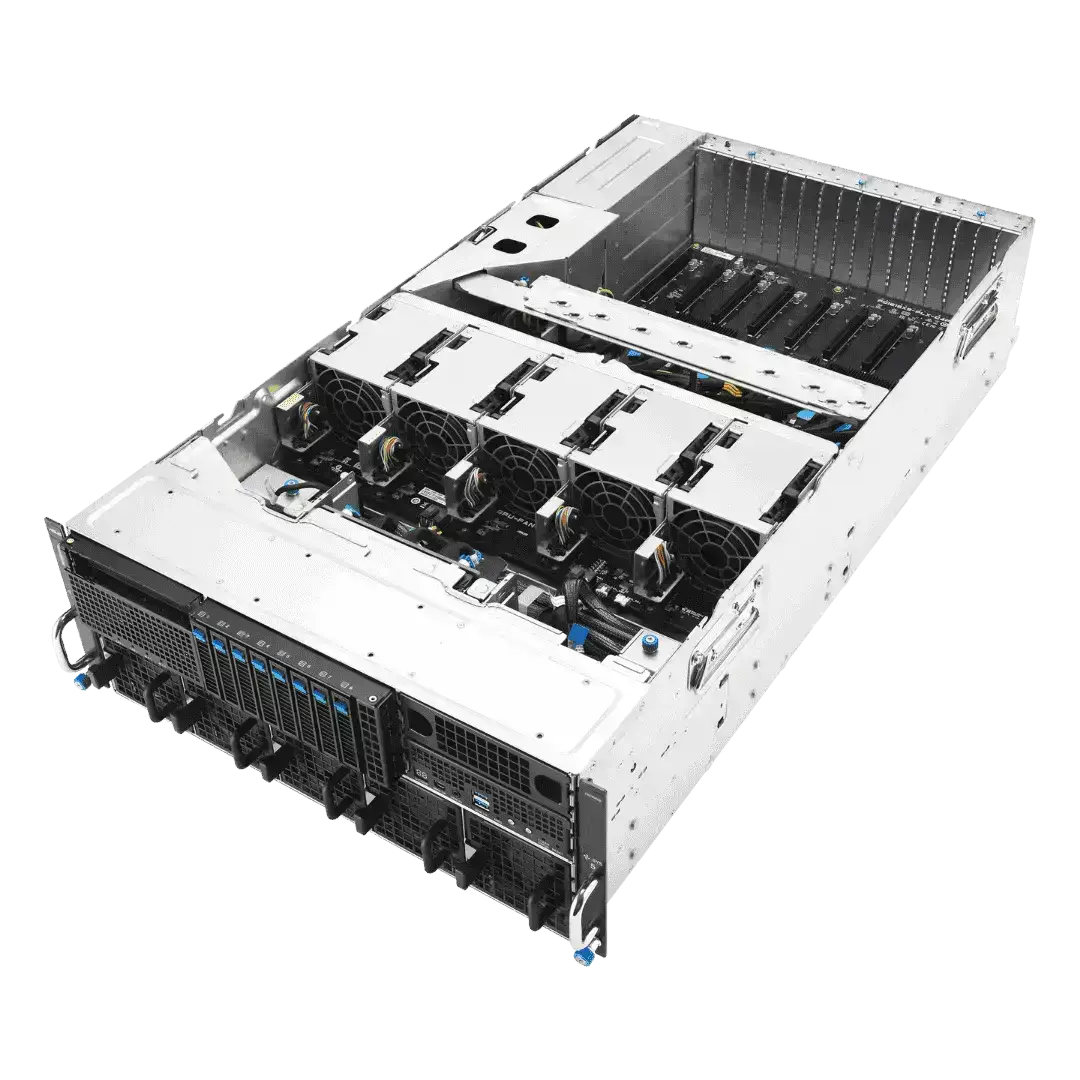

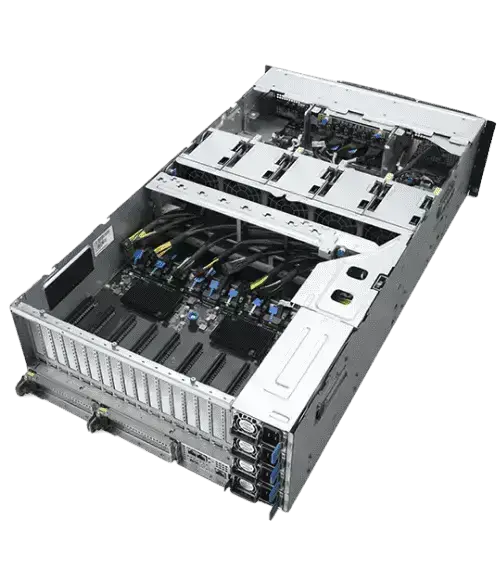

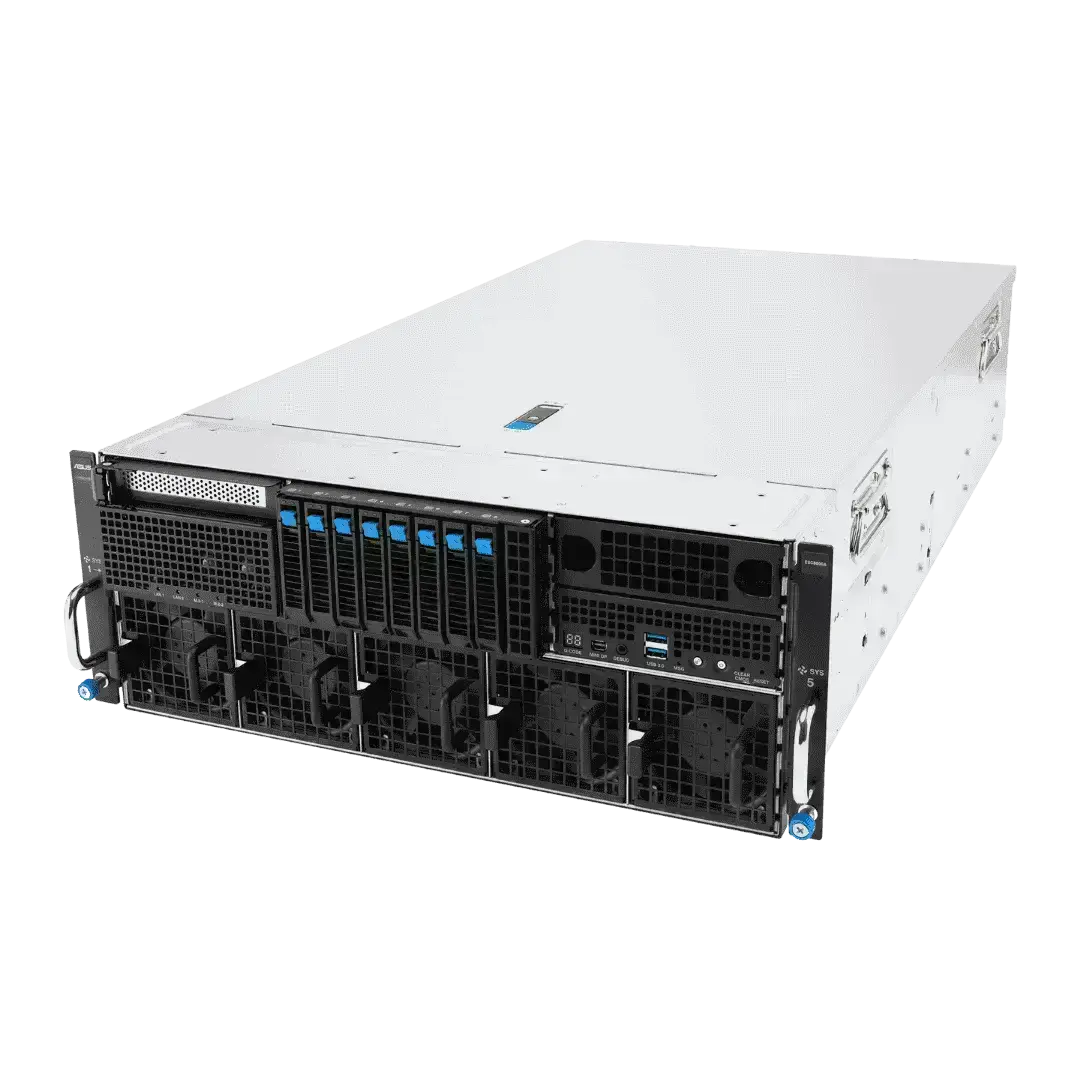

ASUS ESC8000A-E13P 8x PCIe GPU Server

SKU:ESC8000A-E13P
0 out of 5 (0)

AMD EPYC™ 9005 dual-processor 4U NVIDIA® MGX server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, up to 24 DIMM, five PCIe® 5.0 slots and eight 2.5" NVMe

  • Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 6400 MHz DDR5 and support for a maximum TDP of up to 500 watts per socket
  • Fully compatible with NVIDIA MGX architecture, enabling fast and large-scale deployment.
  • High-density 4U server for eight dual-slot high-end NVIDIA H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, supporting up to 600 watts each
  • Optimized server configuration, five PCI 5.0 slots for high-bandwidth PCIe NICs and DPU to enable performance scaling
  • ASUS-exclusive toolless design empowers easy maintenance for maximum efficiency
  • ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Get this product for
vipera
Get it in 10 days
Estimate for 682345
vipera
Will be delivered to your location via DHL

All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.


Eight dual-slot GPUs in a high-density 4U compute server

Powered by AMD EPYC™ 9005 processors, ESC8000A-E13P delivers exceptional performance, featuring top-tier GPUs, faster GPU interconnects, and higher-bandwidth fabric. This powerhouse server supports up to eight dual-slot GPUs, either active or passive, and offers flexible scalability with options for NVIDIA® NVLink® Bridge or AMD Infinity Fabric™ Link. This configuration allows seamless scaling and performance enhancement, making ESC8000A-E13P an ideal choice for tackling the most Enterprise AI and HPC tasks.

Scale with ease and flexibility using MGX architecture

ESC8000A-E13P takes AI infrastructure to the next level by leveraging NVIDIA® MGX™, an open and flexible reference design that ensures future-proof compatibility. With its innovative modular architecture offering up to 160 customizable configurations, clients can easily tailor their solutions to meet specific AI and high-performance computing needs. MGX sets a new industry benchmark for modular server design, enhancing ROI and slashing time to market — empowering businesses to stay ahead in the fast-evolving AI landscape.

  • Manufacturer :Asus
    • Processor / System Bus

      2 x Socket SP5 (LGA 6096)
      AMD EPYC™ 9005 series processors*
      * Up to 500W TDP, TDP support varies by configuration
    • Memory

      Total Slots:
      24 (12 channel per CPU, 12 DIMM per CPU)
      Capacity:
      Maximum up to 3TB per CPU socket
      Memory Type:
      DDR5 6000//5600 RDIMM
      Memory Size:
      128GB, 64GB, 32GB RDIMM

      * Refer to ASUS server AVL for the latest update
    • Expansion Slots

      Up to 14 slots

      Rear:
      8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
      5 x PCIe x16 for NIC/BlueField-3 cards (Gen5 x16 link, FH/HL)

      Front:
      1 x PCIe x8 (Gen5 x8 link, FH/HL)
    • Storage

      8 x 2.5" Front Hot-swap Storage Bays
      (Backplane supports up to 8 x NVMe)

      2 x M.2 Socket, supports up to 22110 type (PCIe Gen5 x4 link)
      (M.2 board supports up to 2 x NVMe
    • Networking

      2 x 10GbE LAN ports (RJ45, X710-AT2)
      1 x Management Port
    • Multi-GPU Support

      Please find the latest GPU support from https://servers.asus.com/support/gpu
    • Front I/O Ports

      1 x Mini DisplayPort
      2 x USB 5Gbps ports
    • Rear I/O Ports

      1 x USB 5Gbps port
      2 x RJ-45 LAN ports
      1 x RJ-45 management LAN port
    • Switch/LED

      Front :
      1 x Power switch/LED
      1 x Location switch/LED
      1 x Message LED
      1 x Clear CMOS switch
      1 x Reset Switch
      2 x M.2 LEDs
      2 x LAN LEDs
      1 x Q-code/Port 80 LED
      Rear :
      1 x Power switch/LED
      1 x Location switch/LED
      1 x Message LED
    • OS Support

      Please find the latest OS support from https://servers.asus.com/support/os
    • Management Solution

      ASUS Control Center Enterprise (in-band)
      ASMB12-iKVM for (out-of-band/BMC AST2600)
    • Regulatory Compliance

      BSMI, CB, CE, FCC(Class A), RCM
    • Dimensions

      800mm x 439.5mm x 175mm
      31.5” x 17.3” x 6.9”
    • Form Factor

      4U
    • Weight

      Net Weight: 42 Kg
      Gross Weight: 44.23 Kg
    • Power Supply

      3+1 redundant 3200W 80 PLUS Titanium power supply
      20-240 Vac, 16A (x4) 50/60Hz
    • Environment

      Operating temperature: 10°C ~ 35°C
      Non-operating temperature: -40°C ~ 60°C
      Non-operating humidity: 20% ~ 95% (Non-condensing)
